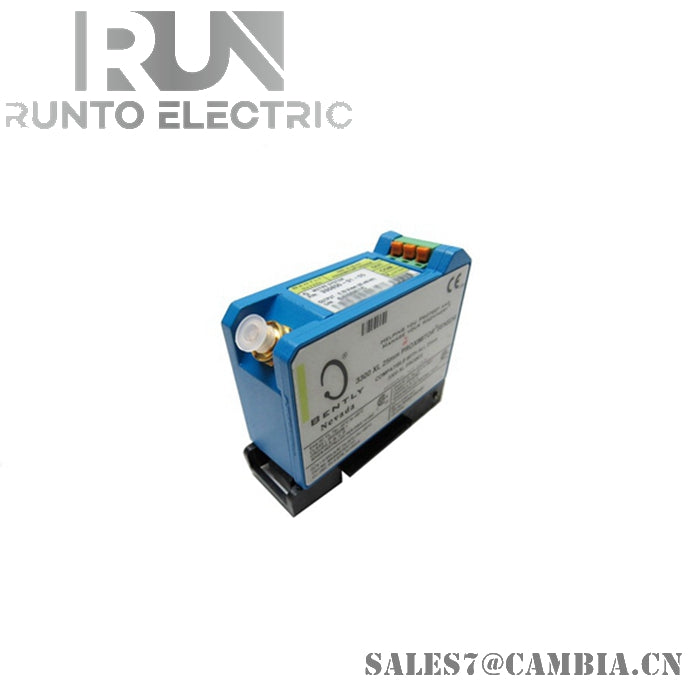

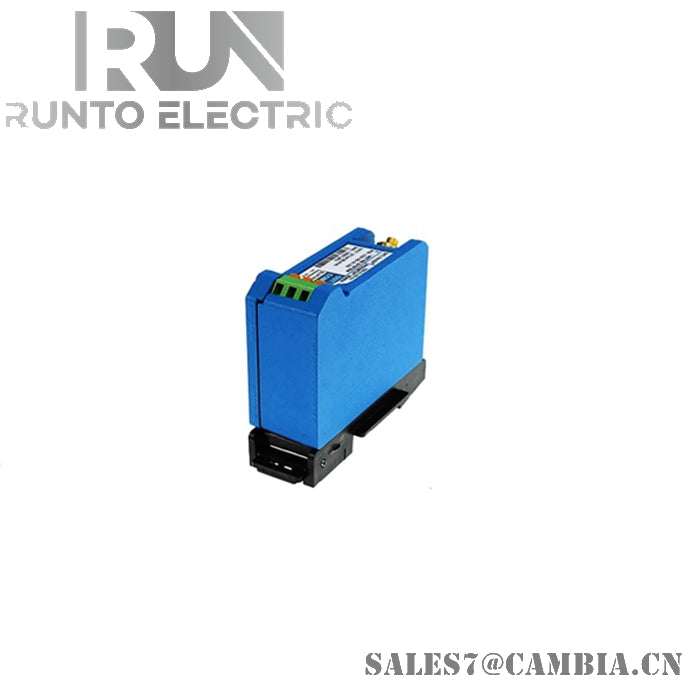

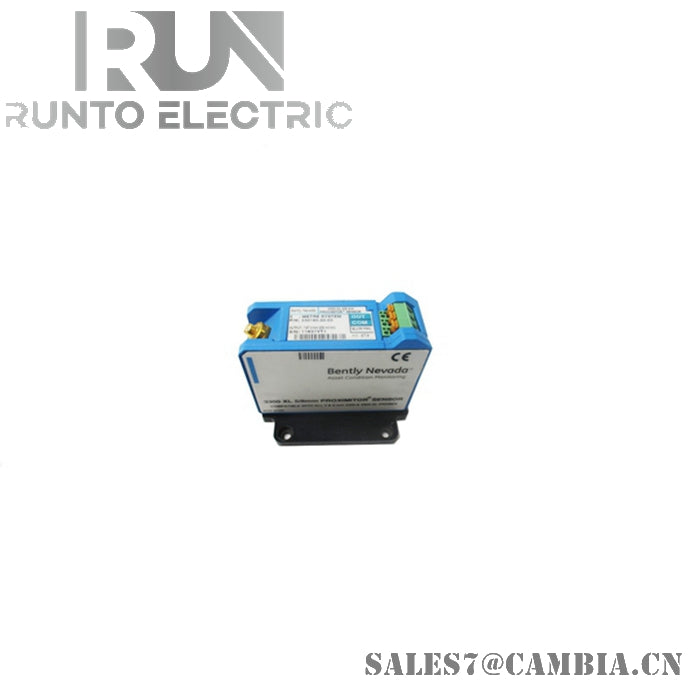

330850-50-05 | Bently Nevada | Proximity Sensor

Description

The Bently Nevada 330850-50-05 is a high-precision non-contact proximity sensor from the 3300 XL series, designed to monitor vibration and position in rotating machinery. It ensures accurate measurements in harsh industrial environments, making it ideal for condition monitoring and protection systems.

Specifications

• Model Number: 330850-50-05
• Sensor Type: 3300 XL 25 mm Proximitor Sensor
• Measurement Range: Up to 25 mm
• Sensitivity: 0.787 V/mm (20 mV/mil)
• Linear Range: 12.7 mm (500 mils)
• System Length: 5.0 meters (16.4 feet)
• Mounting Option: Panel mount
• Output Signal: 4–20 mA
• Power Supply: 24 V DC
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C
• Protection Rating: IP65
• Dimensions: Approx. 20.3 × 22.2 × 3.5 cm
• Weight: Approx. 0.1–0.22 kg
• Certifications: CE, multiple agency approvals
• Compatibility: Works with 3300 XL 25 mm probe and extension cable


Features

• Non-Contact Measurement: Uses eddy current technology for accurate distance sensing without physical contact
• High Signal Integrity: Delivers stable and precise vibration and position data
• Robust Design: Built to withstand extreme industrial conditions
• Flexible Installation: Supports panel and DIN rail mounting
• Backward Compatibility: Matches output of legacy 7200 series sensors for easy upgrades
• Enhanced EMI/RFI Immunity: Reliable performance in electrically noisy environments
• System Integration: Seamlessly integrates into Bently Nevada monitoring systems
• Application Versatility: Ideal for turbines, compressors, pumps, and generators
