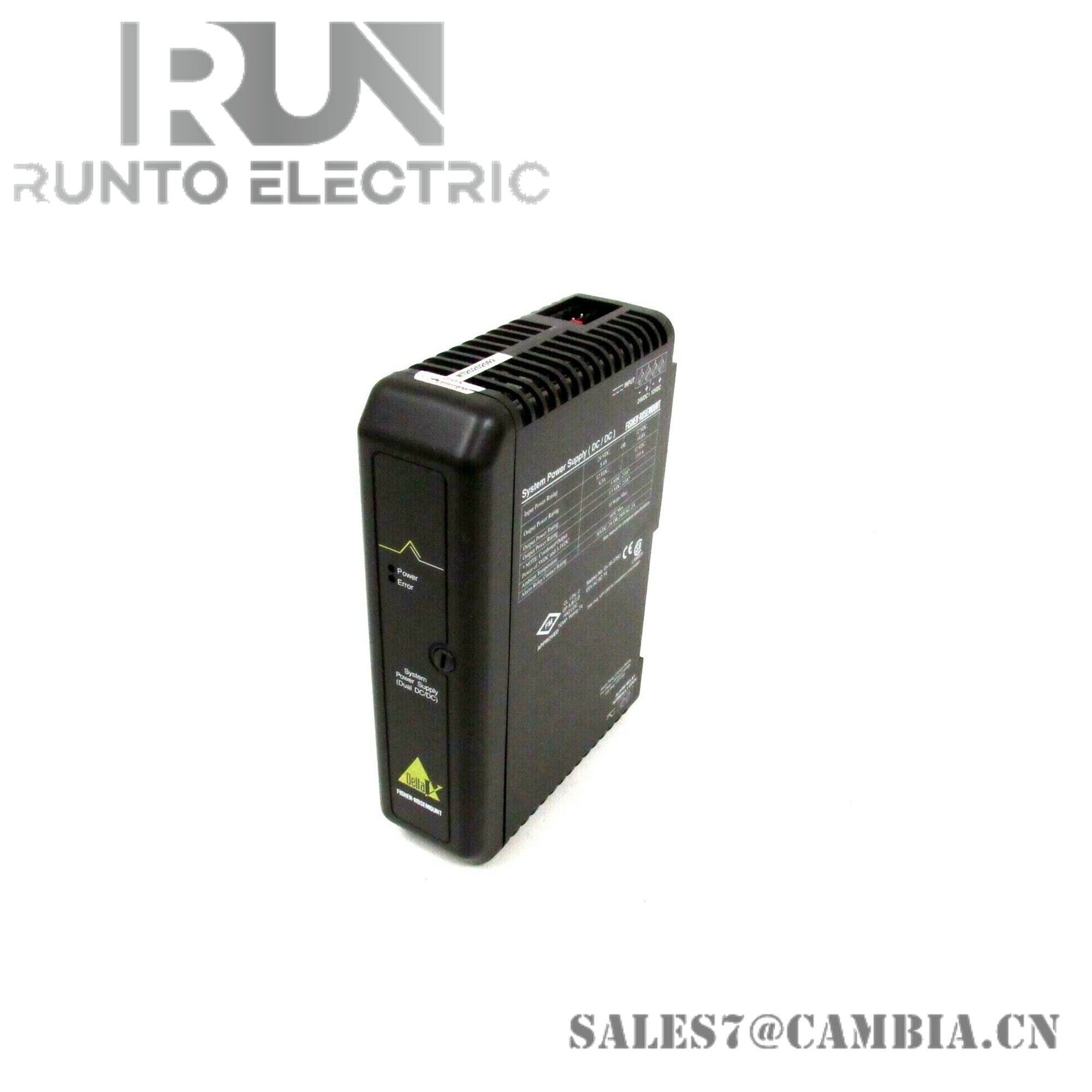

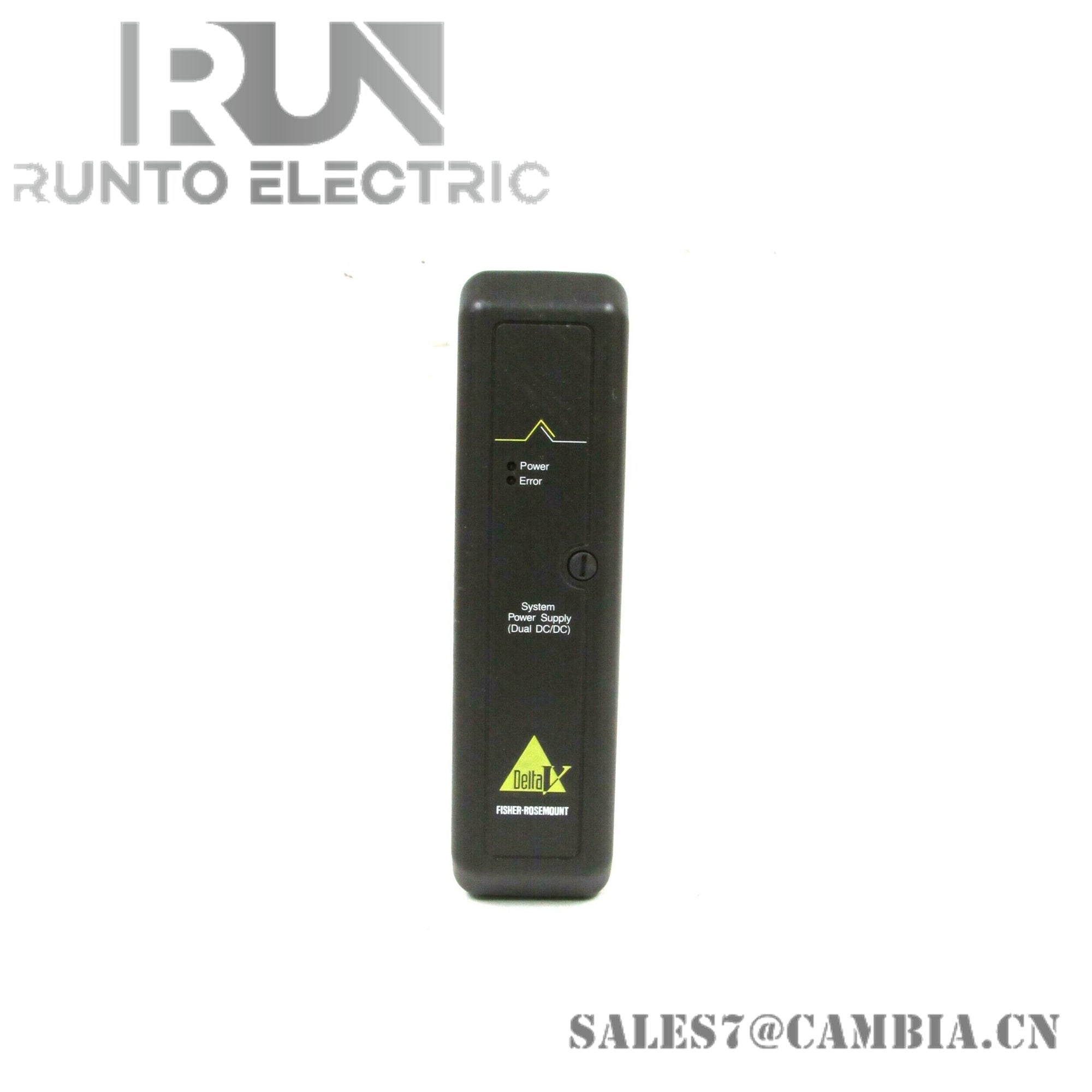

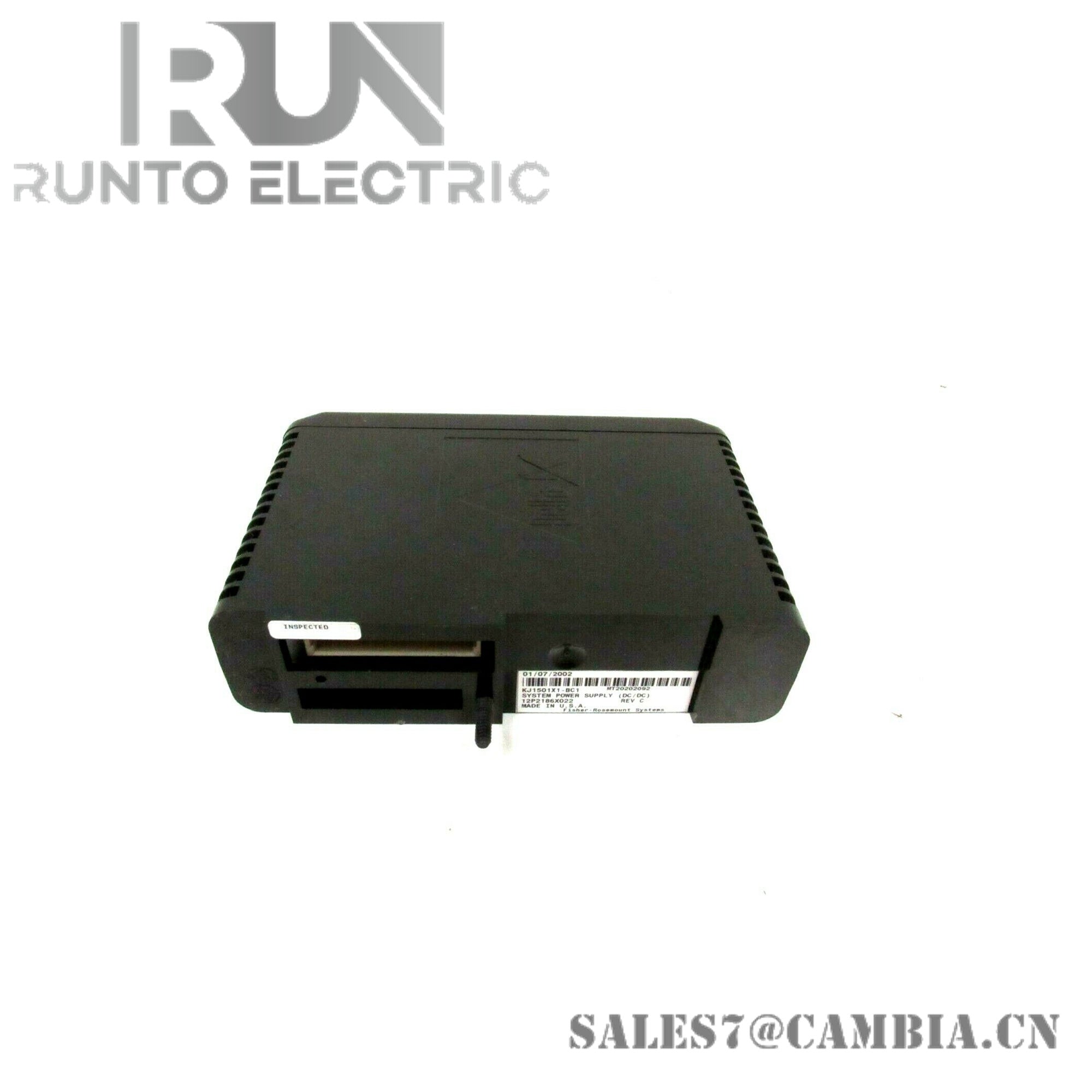

Emerson KJ1501X1-BC1 Dual DC Power Supply Module

Description

The Emerson KJ1501X1-BC1 is a dual DC power supply module designed for DeltaV™ control systems. It delivers stable and regulated power in demanding industrial environments, meeting stringent safety and environmental standards.

Specifications

• Input Voltage Options: 12 VDC / 24 VDC
• Output Voltage Range: 11.4–12.6 VDC (12 V input), 22.8–25.2 VDC (24 V input)
• Power Output Ratings:
  • +12 VDC: 13.0 A (12 V input), 4.5 A (24 V input)
  • +5 VDC: 2.0 A
  • +3.3 VDC: 2.0 A
• Total Output Power: 10 W @ 60°C (combined 5 VDC and 3.3 VDC)
• Operating Temperature: 0°C to 60°C
• Shock Resistance: 10 G, ½ sinewave for 11 ms
• Vibration Resistance: 1 mm peak-to-peak (5–16 Hz), 0.5 G (16–150 Hz)
• Humidity: 5% to 95% non-condensing
• Contaminant Class: ISA-S71.04 –1985 Class G3
• Protection Class: IP20

Features

• Dual DC Input Support: Compatible with both 12 VDC and 24 VDC sources
• Multiple Output Channels: Supplies 12 VDC, 5 VDC, and 3.3 VDC for diverse system needs
• High Current Capacity: Up to 13 A output at 12 VDC input
• Compact and Durable Design: Aluminum alloy housing with wall-mount installation
• Hazardous Area Certification: ATEX II 3 G, EEx nC IIC T4 compliant
• Alarm Relay Contact: 2 A @ 30 VDC or 250 VAC
• No Calibration Required: Maintenance-free with no user-serviceable parts
• Wide Application: Ideal for process control, instrumentation, and distribution systems in industrial automation
