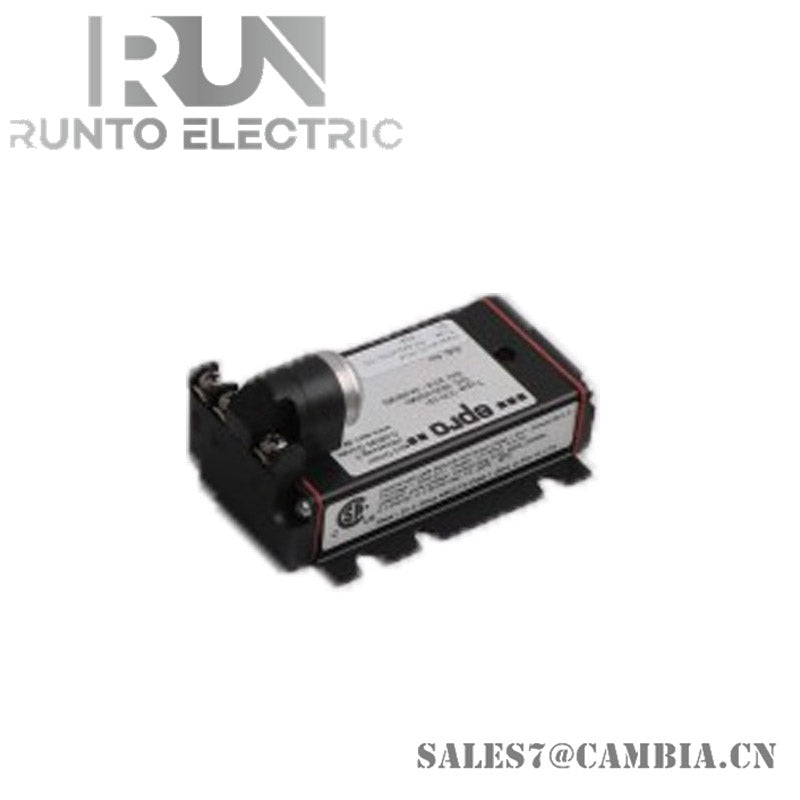

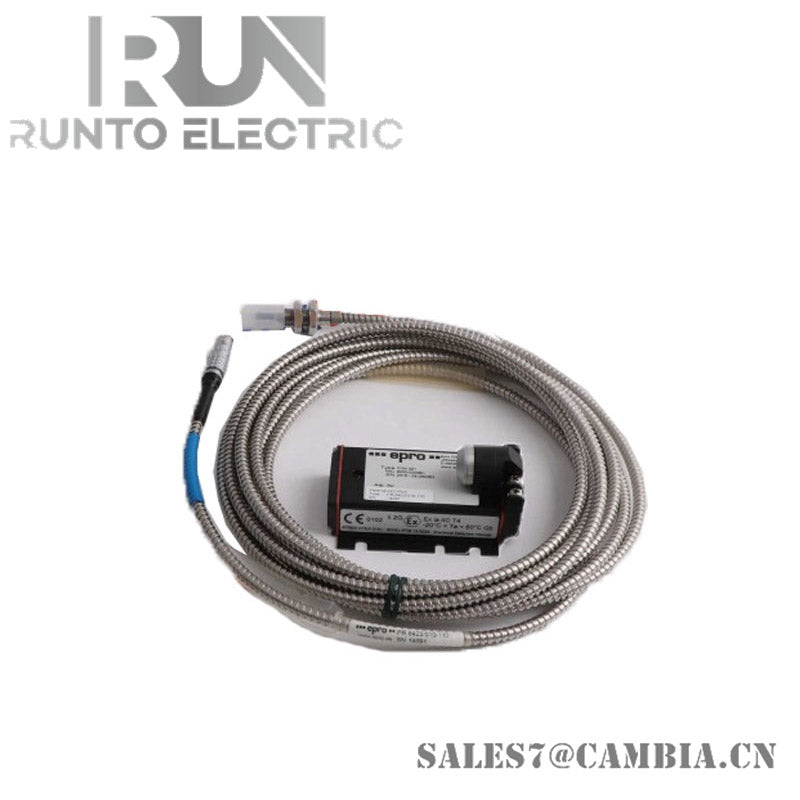

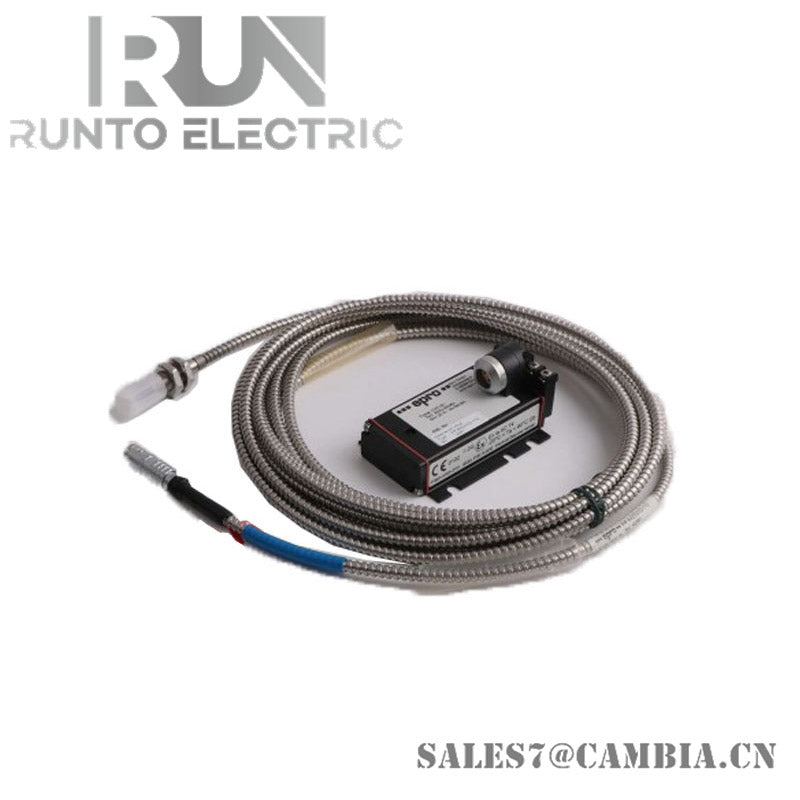

Epro CON021+PR6423/000-031-CN Eddy Current Signal Converter

Description

• Type: Non-contact Eddy Current Transducer

• Applications: Measures radial and axial shaft dynamic displacement, position, eccentricity, and speed

Features

• Measurement Range: 8 mm
• Accuracy: ±1%
• Output Signal: 0.5 to 4.5 V
• Power Supply: DC 12 V to 24 V
• Operating Temperature: -40 to 85 °C
• Weight: 10 g

Specifications

• Linear Measurement Range: 2 mm (80 mils)
• Initial Air Gap: 0.5 mm (20 mils)
• Incremental Scale Factor (ISF): 8 V/mm (203.2 mV/mil) ± 5% @ temperature range 0 to 45°C
• Deviation from Best Fit Straight Line (DSL): ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C
• Protection Class: IP66, IEC 60529
• Operating Temperature Range:
  • Sensor incl. 1m Cable: -35 to +200°C
  • Cable & Connector: -35 to +150°C
• Material:
  • Sensor Tip: PEEK (Polyether Ether Ketone)
  • Case: Stainless Steel
  • Cable: PTFE (Polytetrafluoroethylene)
  • Connector: Brass, nickel-plated
• Weight: Approx. 100 grams (3.53 oz) with 1m Cable
