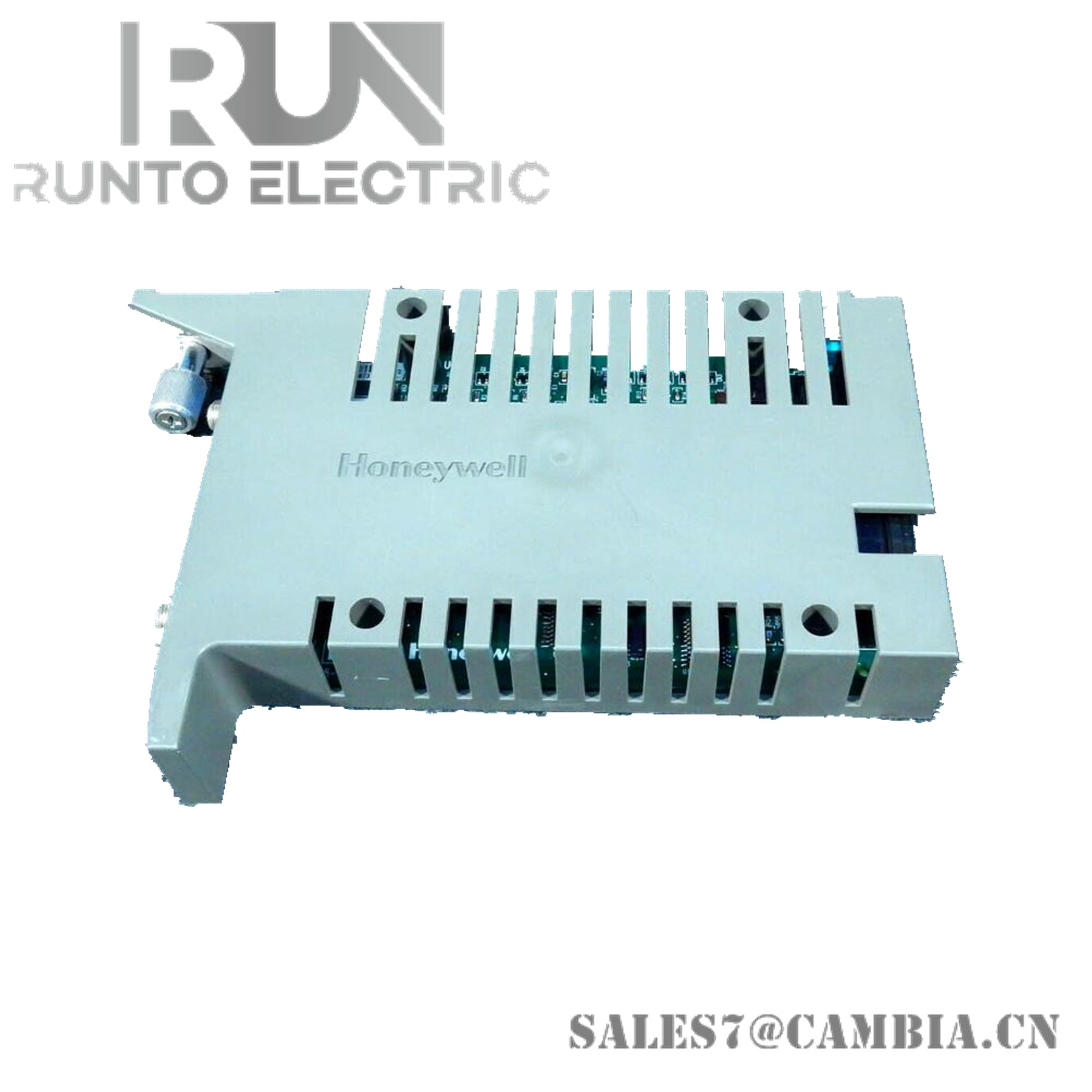

05704-A-0144 | Honeywell | Four Channel Control Card

Description

• Manufacturer: Honeywell

• Product No.: 05704-A-0144

• Product Type: Four Channel Control Card Catalytic Input

Technical Specifications

• Power Consumption:
  • Maximum: 12.8 W (at 200 mA sensor current)
  • Typical: 8.5 W
• Drive: Constant Current
• Initial Accuracy: ±1%
• Current Adjustment: Electronic, adjustable in 1 mA steps from 90 to 315 mA
• Maximum Drive Voltage: 10 V
• Protection: Short circuit and open circuit protection
• Maximum Line Resistance: 40 ohms (including sensor) at 200 mA
• Full Scale Signal Range: 15 mV to 300 mV
• Bridge Imbalance Default Limits: ±100 mV from center at 2 V bridge voltage
• Adjustment: Electronic adjustment of bridge balance and signal gain
• Fault Detection: Open circuit, short circuit, and single bead failure
