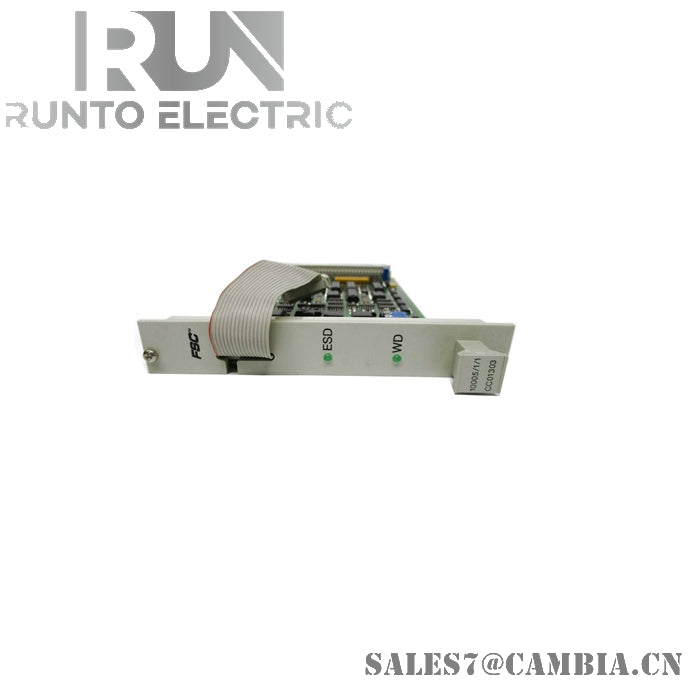

05704-A-0145 | Honeywell | Four Channel Control Card

Description

• Manufacturer: HONEYWELL

• Part Number: 05704-A-0145

• Product Type: Four Channel Control Card (4-20mA Input)

• Description: Provides control, display, and alarm facilities for up to four connected gas detectors.

Specifications:

• Power Consumption:
  • Maximum: 8.3W
  • Typical: 7.5W
• Loop Powered Output Voltage:
  • Isolated 24V ± 5% regulated
  • 25mA maximum for loop powered devices
• Transmitter Supply Output Voltage: None
• Loop Protection:
  • Short circuit
  • Open circuit voltage of ±50V
• Configuration: Sensor current source
• Measurement Signal Range: 0 to 25mA (linear)
• Maximum Line Resistance: 500 ohms (loop resistance including sensor)
• Isolation Breakdown Voltage: More than ±50V dc to system 0V

Physical Dimensions:

• Height: 132 mm
• Width: 25 mm
• Depth: 172 mm
• Weight: 170 g
• Shipping Weight: 1.5 kg
