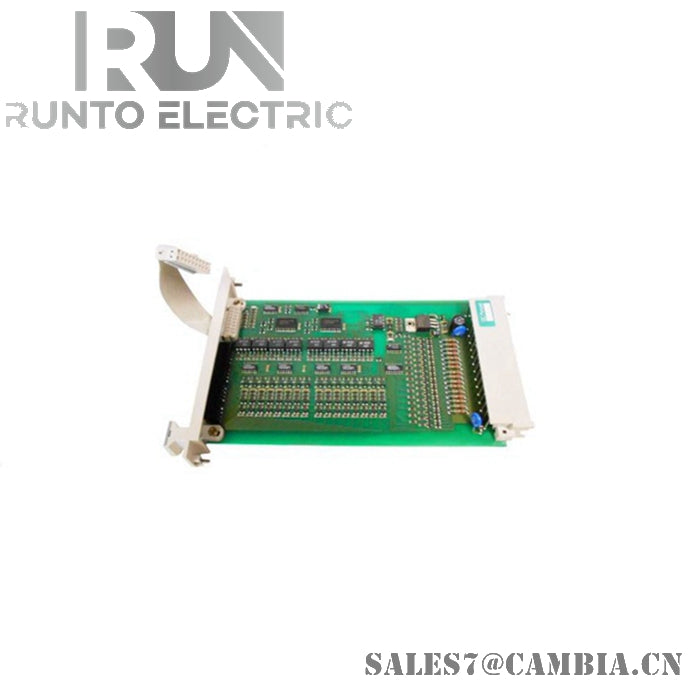

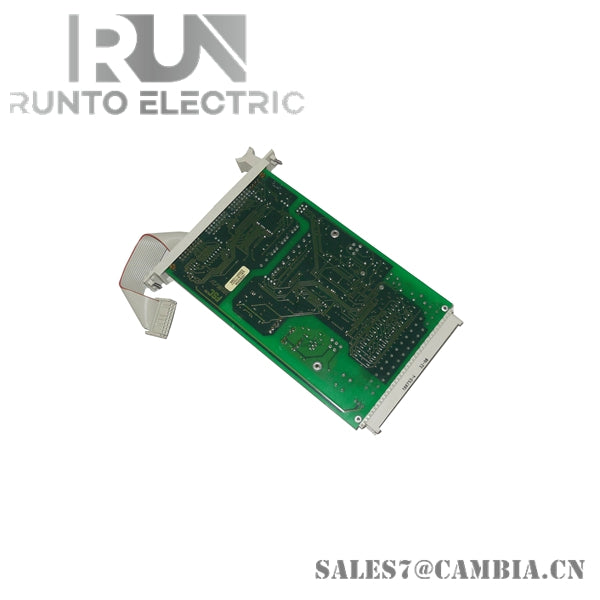

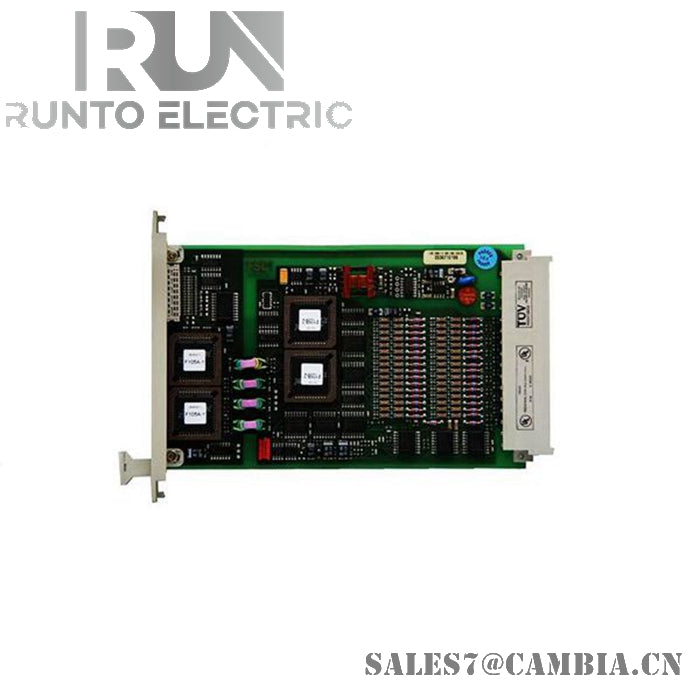

10101/2/1 | Honeywell | FSC Fail-safe Digital Input Module

Product Details

• Manufacturer: Honeywell
• Product Number: 10101/2/1
• Product Type: Fail-safe Digital Input Module (24 VDC, 16 Channels)

Specifications

• Tested for:
  • Ability to receive logic level '0' signals
  • Ability to receive logic level '1' signals
  • Crosstalk between inputs
• Approvals: CE, TUV, UL
• Software Versions: ≥ 3.00
• Space Requirements: 4 TE, 3 HE (4 HP, 3U)
• Power Requirements:
  • 5 VDC: 8 mA
  • 24 VDC internal: 110 mA
  • 24 VDC external: 110 mA (input currents)
• Ripple Content (on 5 VDC): < 0.5 Vp-p (0-360 Hz)
• Number of Input Channels: 16
• Maximum Input Voltage: 36 VDC
• Input Current: 7 mA at 24 VDC
• Input HIGH: > 15 VDC
• Input LOW: < 9 VDC (I < 2 mA)
• Input Delay: Typically 10 ms
• Weight: 0.2 kg
• Shipping Weight: 2 kg
