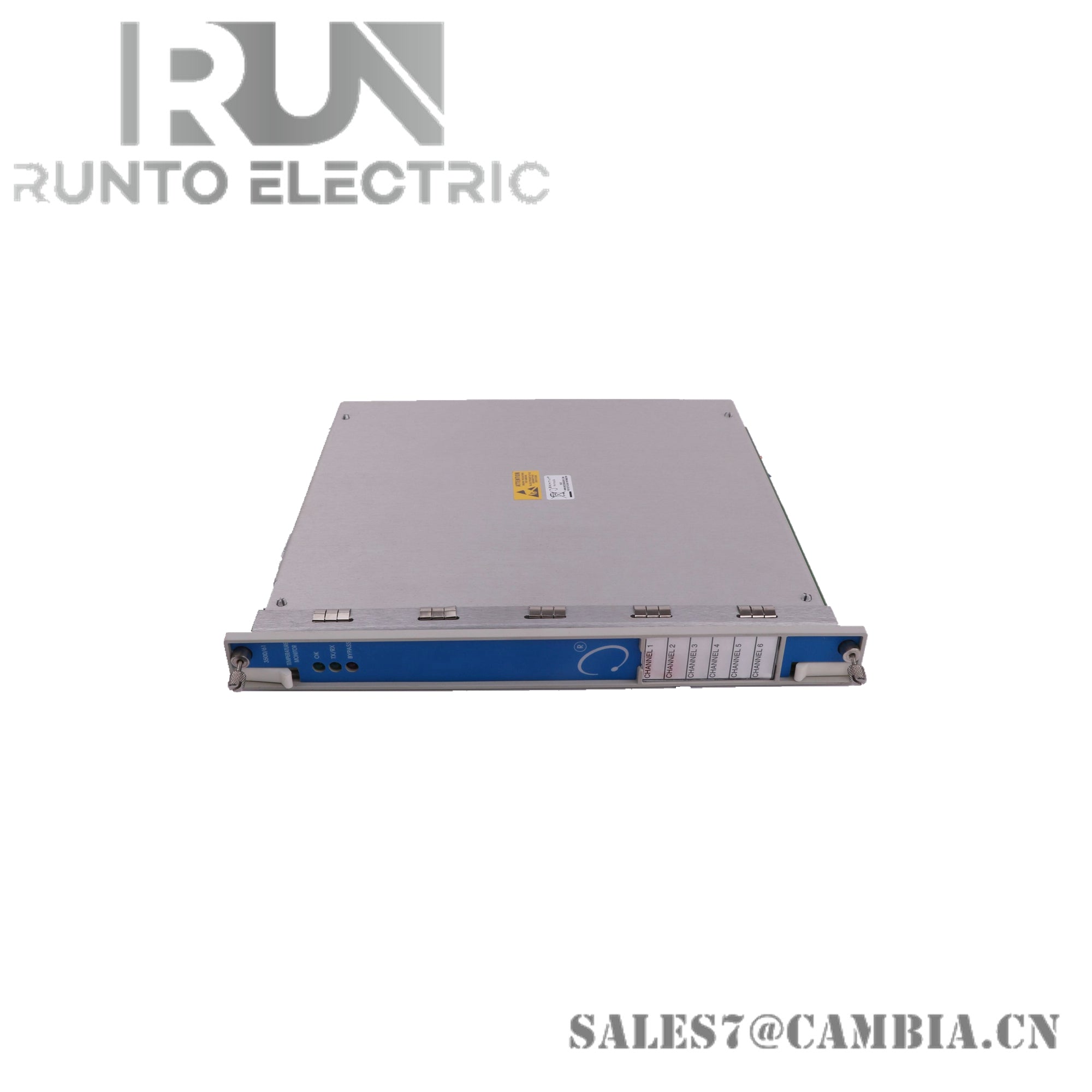

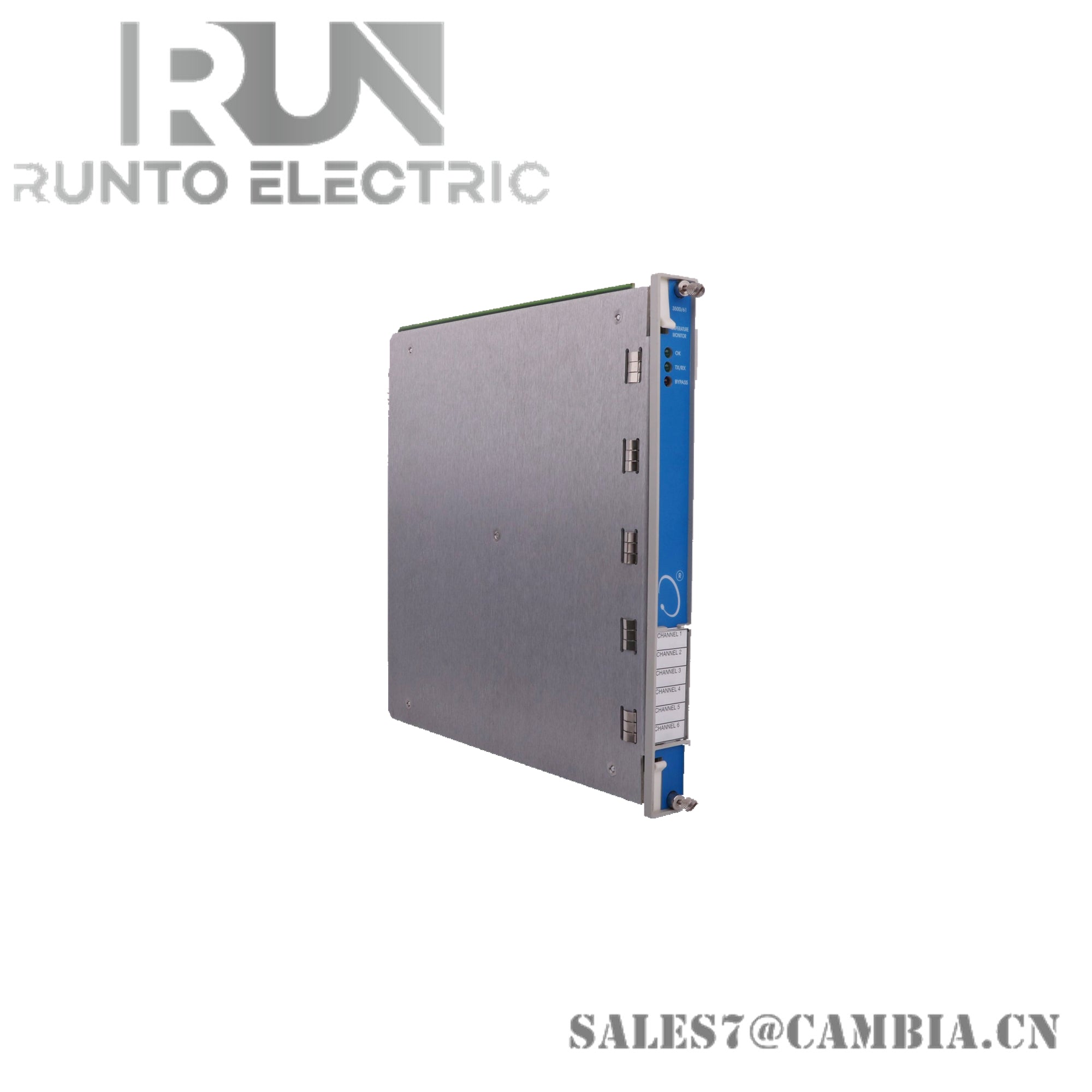

145988-02 | Bently Nevada | 3500/65 Temperature Monitor

Description

The 145988-02 module is engineered to monitor critical equipment by accepting temperature inputs from Resistance Temperature Detectors (RTDs) and isolated tip thermocouples (TCs). It compares these inputs against user-programmable alarm setpoints, ensuring reliable operation in demanding environments.

Specifications

• Channels: 16 temperature monitoring channels.

• Input Types: Supports RTDs and isolated tip TCs, including Type E, J, K, and T thermocouples, as well as platinum and nickel RTDs.

• Resolution: 1°C or 1°F.

• Accuracy: ±3°C at +25°C (±5.4°F at +77°F).

• Communication Ports: RS-232 and RS-485 for data exchange.

• Alarms: User-programmable alert and danger setpoints adjustable from 0 to 100% of full-scale.

• Dimensions: 100 mm x 100 mm x 100 mm.

• Weight: Approximately 1 kg.

Features

• Multi-Channel Monitoring: Provides comprehensive temperature monitoring with 16 channels.

• High Accuracy: Ensures precise temperature measurements for critical applications.

• Built-In Alarm Relays: Alerts operators to abnormal conditions for proactive maintenance.

• Ease of Integration: Compatible with the Bently Nevada 3500 system and other industrial setups.

• Compact Design: Space-efficient for easy installation.
