30732052-001 | Honeywell | Plug Terminator
Honeywell 30732052-001 Plug Terminator

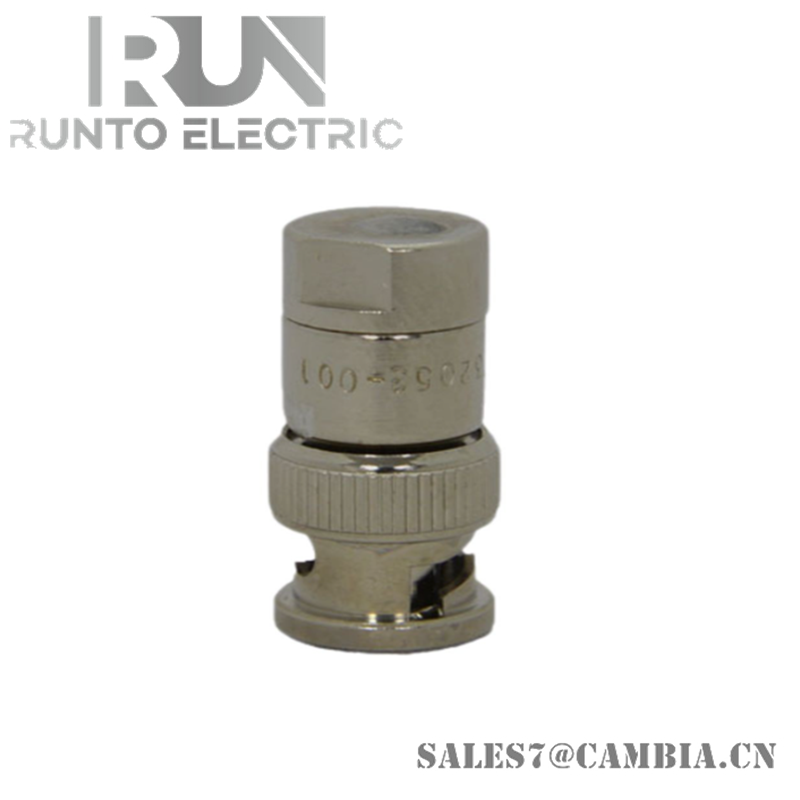

The Honeywell 30732052-001, also cataloged as the 75-Ohm BNC Plug Terminator, serves as a dedicated connector termination device for unused coaxial ports within Honeywell TDC 3000 UCN and LCN network modules.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 30732052-001 |
| Brand | Honeywell |
| Type | 75-Ohm BNC Plug Terminator |
| Connector | BNC Male |
| Impedance | 75 Ohms |
| System Compatibility | TDC 3000 UCN / LCN |
| Dimensions | 3.2 cm × 1.2 cm × 1.2 cm |
| Weight | Approx. 0.2 kg |
Channel-to-Channel Isolation
The 30732052-001 maintains channel-to-channel isolation by terminating unused coaxial ports with precise 75-ohm impedance. This prevents signal reflections and ensures stable communication across Honeywell UCN and LCN networks. The rugged stainless construction resists EMI/RFI interference, preserving data integrity in industrial environments.
Frequently Asked Questions
Q: Can the terminator be hot-swapped during live network operation? A: Yes, it can be inserted or removed without powering down, as it does not carry active voltage.
Q: What happens if unused ports are left unterminated? A: Unterminated ports may cause signal reflections, leading to communication errors or degraded network performance.
Q: Is the terminator interchangeable with 50-ohm versions? A: No, using incorrect impedance terminators will cause mismatch and potential data disruption.
Field Installation Guidelines
- Insert the BNC male connector firmly into unused coaxial ports.
- Ensure proper locking engagement to avoid accidental disconnection.
- Maintain separation from high-voltage cabling to reduce EMI exposure.
- Verify impedance rating before installation to match system requirements.
- Store in dry, non-condensing environments to preserve connector integrity.
