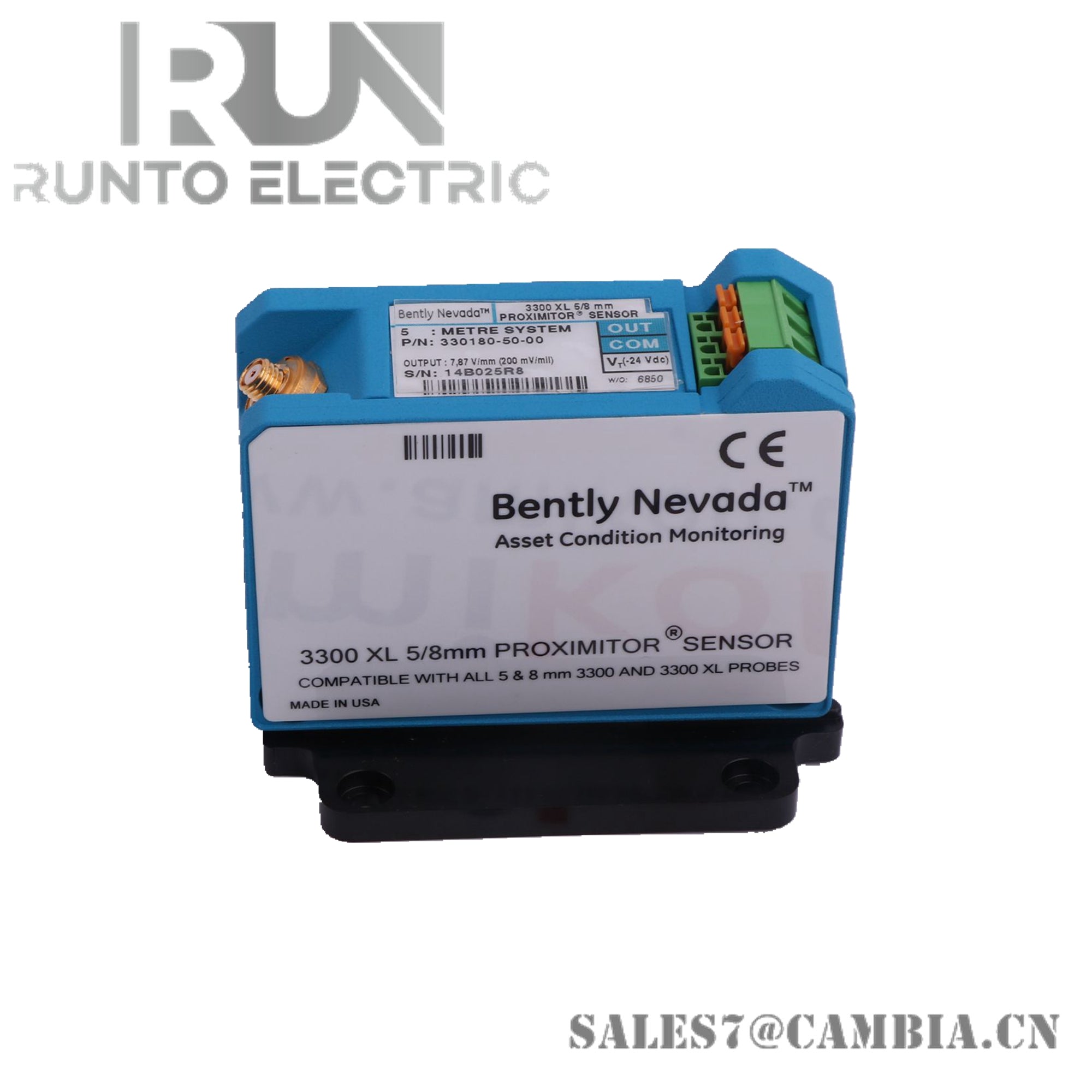

330180-50-05 Bently Nevada Proximitor Sensor

Description

• Manufacturer: Bently Nevada

• Product Number: 330180-50-05

• Product Type: 3300 XL Proximitor Sensor

• Country of Origin: Made in U.S.A


Specifications

• System Length & Mounting Option:50 = 5.0 metres (16.4 feet) system length, panel mount
• Agency Approvals:05 = CSA, ATEX, IECEx approvals
• Proximitor Sensor Input:Compatible with one non-contacting 3300-series 5 mm, 3300 8 mm, or 3300 XL 8 mm Proximity Probe and Extension Cable
• Power Requirements:
  • Without barriers: –17.5 Vdc to –26 Vdc, max. 12 mA consumption
  • With barriers: –23 Vdc to –26 Vdc
  • Note: Operation above –23.5 Vdc may reduce linear range
• Supply Sensitivity:Less than 2 mV output voltage change per volt change in input voltage
• Material Construction:
  • Proximitor Sensor Housing: A308 Aluminum
  • Connectors: Gold-plated brass or gold-plated beryllium copper
• System Length Options:1 metre (probe only), 5 or 9 metres (including extension cable)
• Dimensions (H × W × D):Approx. 6.35 cm × 6.1 cm × 8.13 cm
• Product Weight: 0.323 kg
• Shipping Weight: 2 kg
