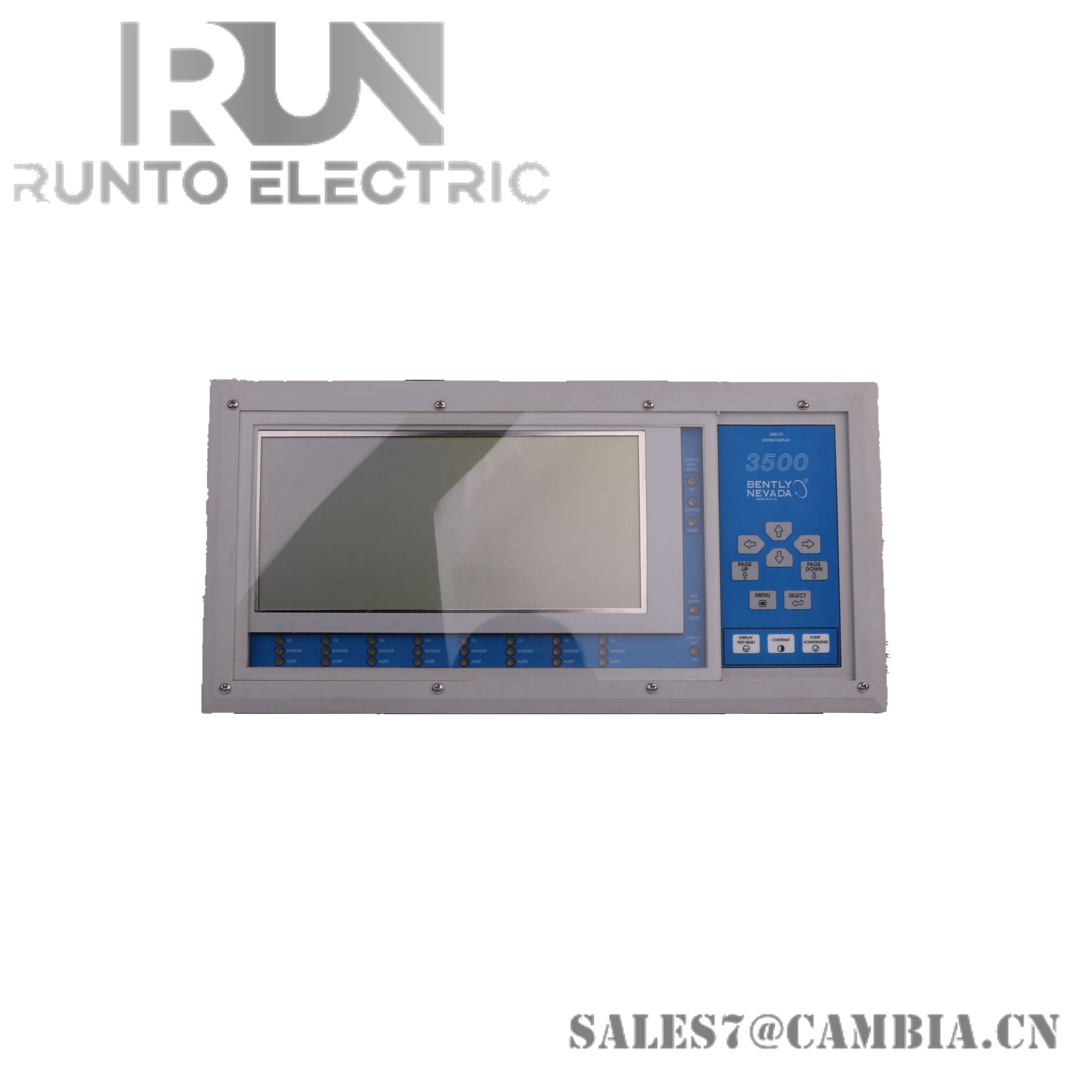

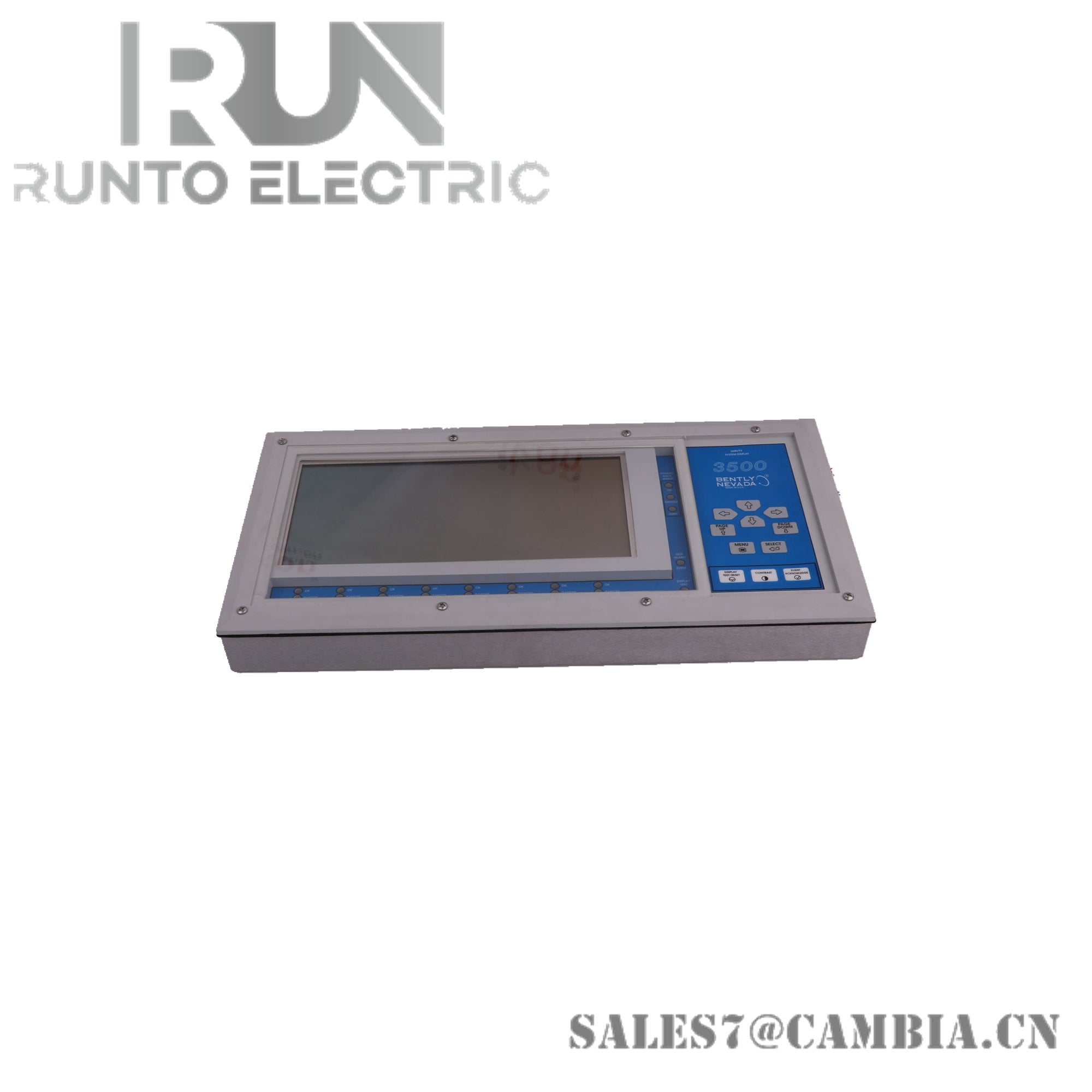

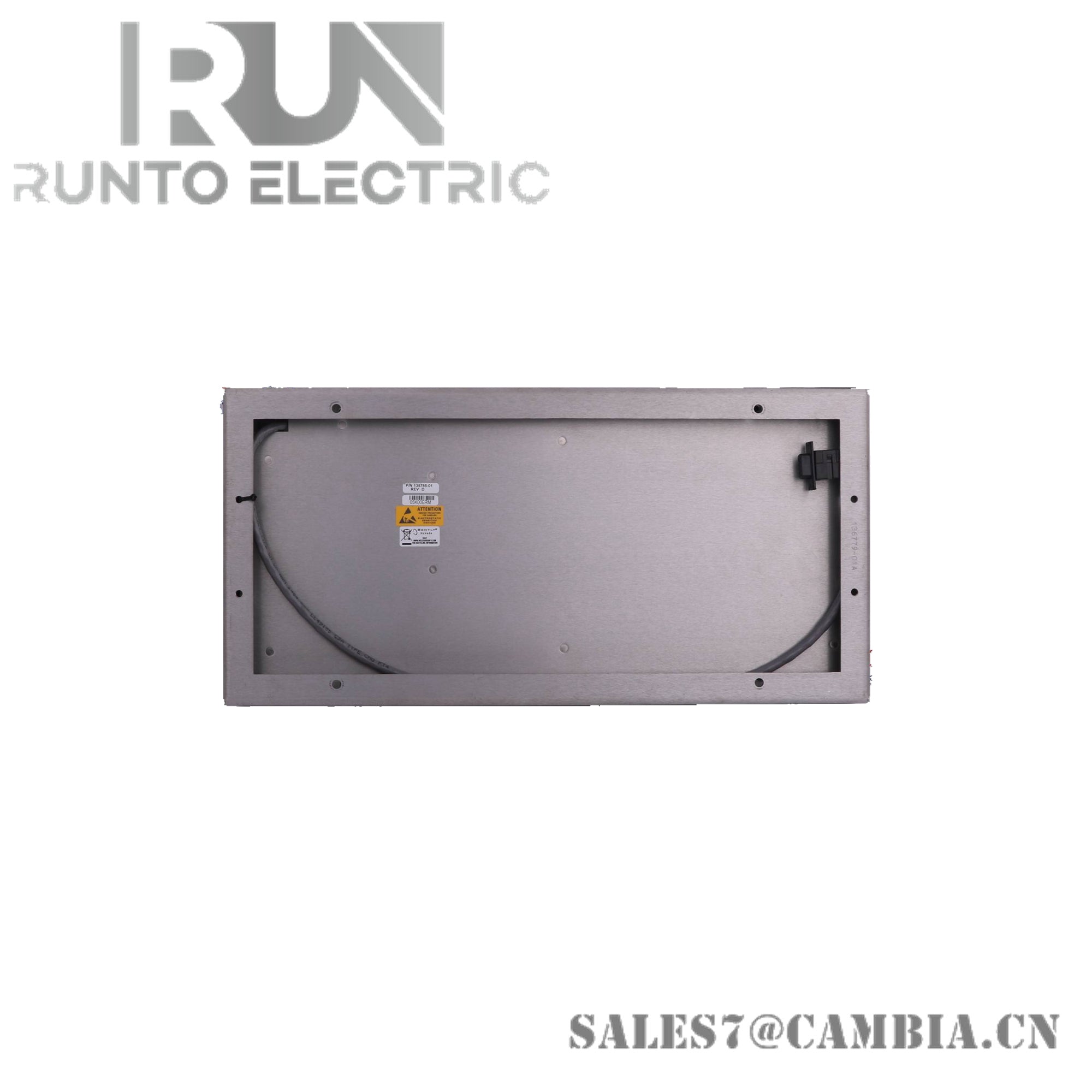

3500/93 135785-01 Bently Nevada Display Unit Non Back Lighted

The 3500/93 System Display is configured using 3500 Rack Configuration Software. The display can be mounted in any of four ways:
1. Face Mounting – display installs directly over the front panel of any full size 3500 rack using a special hinged support. This permits access to the rack’s buffered output connectors and userinterface buttons and switches without
disconnecting or disabling the display.
Note: For this mounting option only, the Display Interface Module (DIM) must be installed in slot 15 (right-most slot) of the rack. The Face Mounting option is not compatible with the 3500 Mini-rack.
2. 19-inch EIA Rack Mounting – display is mounted on 19-inch EIA rails and located up to 100 feet away from the 3500 System. (Up to 4000 feet away from the 3500 System when using theExternal Power Supply).
3. Panel Mounting – display is mounted in a panel cutout located in the same cabinet or up to 100 feet away from the 3500 System. (Up to 4000 feet away from the 3500 System when using the External Power Supply).
4. Independent Mounting – display is mounted flush against a wall or panel and located up to 100 feet away from the 3500 System. (Up to 4000 feet away from the 3500 System when using the External Power Supply).
Up to two displays can be connected to each 3500 rack and each display requires one empty 3500 rack slot for insertion of its corresponding DIM. When the display is not face-mounted, the cable connection between the DIM and the Display can be made from the front of the 3500 rack or
from the I/O module at the rear of the rack.
Applications that require a cable longer than 100 feet must use the External Power Supply and Cable Adapter.
Applications that use the back lighted Display Unit must use the External Power Supply. There are two External
Power Supplies: one for connection to 115 Vac and the other for connection to 230 Vac.
The External Power/Terminal Strip Mounting Kit eases installation of External Power Supplies. The External Power/Terminal Strip Mounting Kit is designed to fit in the Independent Mount Housing. The Kit streamlines installation of an External Power Supply in both the Independent Mount Housing or a user supplied housing.

NEW AND ORIGIN ITEM IN STOCK

WITH ONE YEAR WARRANTY

Hope anyone enquire from us,pls click this sales7@cambia.cn

1. lower your support costs

2, Provide on-going availability of automation replacement parts

Quantity available: 10

Warranty: 12 months.

Technical specification, manuals and data sheets
