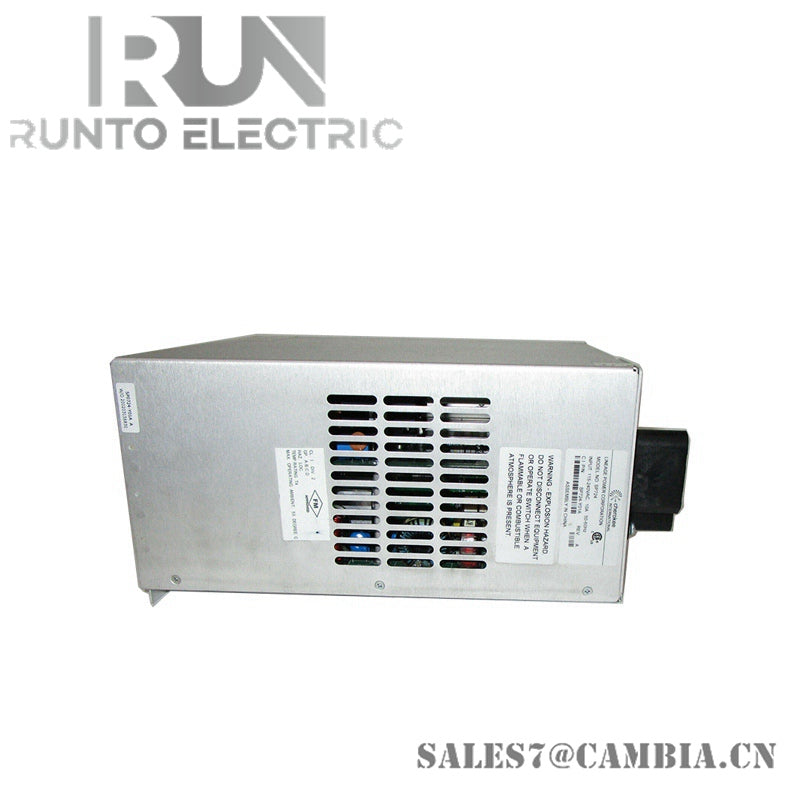

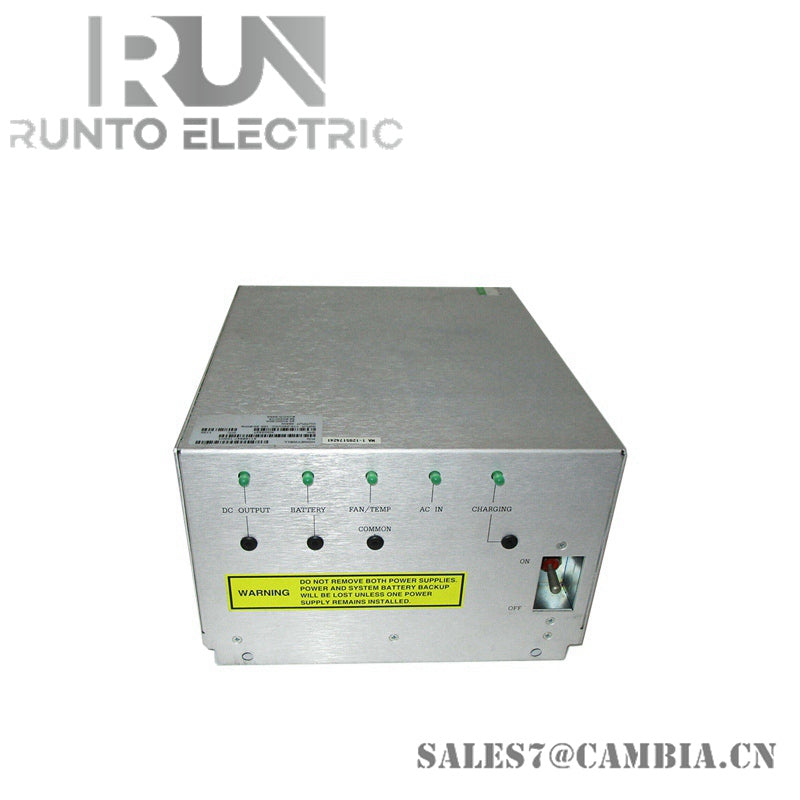

51198947-100 | Honeywell | HPM Power Supply

Description

• Manufacturer: Honeywell
• Product No: 51198947-100
• Product Type: HPM Power Supply (DCS Parts)

Specifications

• Input Voltage:
  • 85 to 264 VAC
  • 48 VDC (battery backup)
• Output Voltage:
  • 25.25 VDC at 10A (when powered from AC)
  • 24.25 VDC (when powered from 48V battery)
• Additional Output: 6 VAC, 35mA (line frequency synchronization)
• Battery Charging: Built-in charging circuit for 48V battery
• Operating Temperature Range:
  • -20°C to +55°C (full load)
  • Derates linearly above 55°C at 0.5A/°C up to +65°C
• Parallel Operation: Supports multiple power supplies connected in parallel
• Compliance: CE-compliant, meets EEC directives
• Shipping Weight: 5 kg
