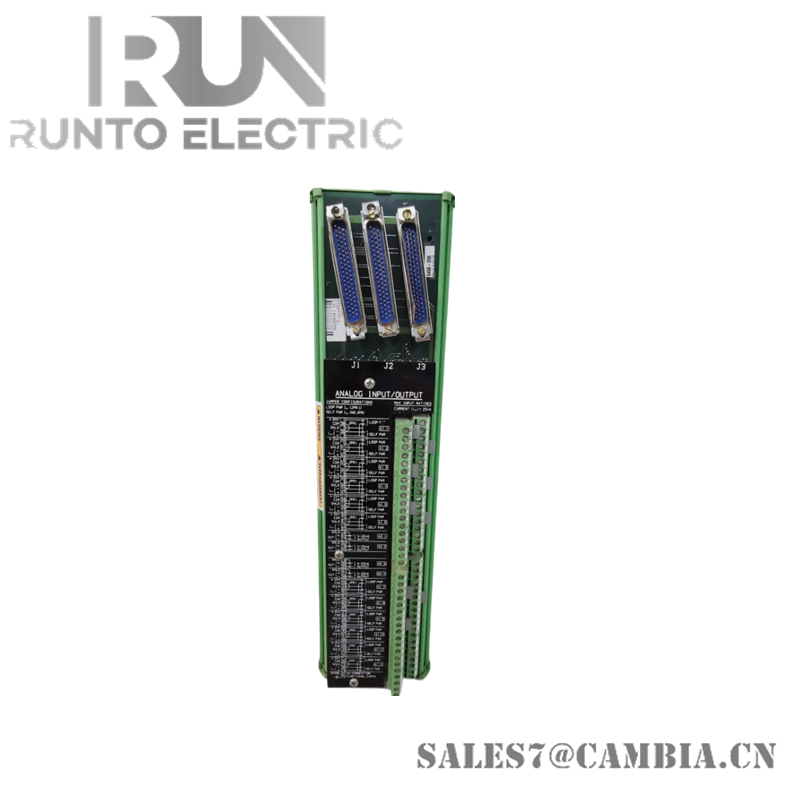

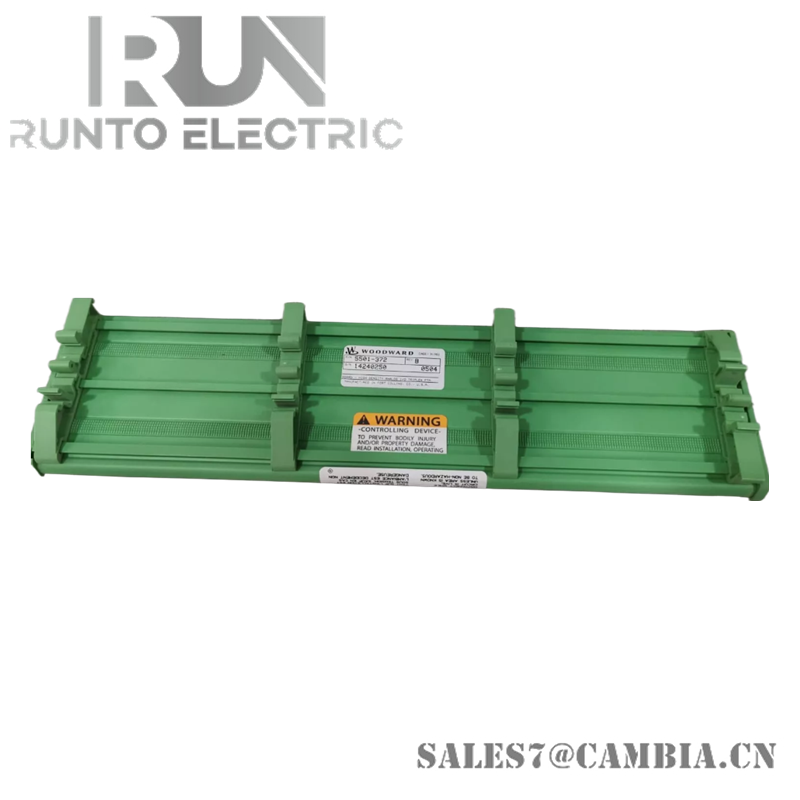

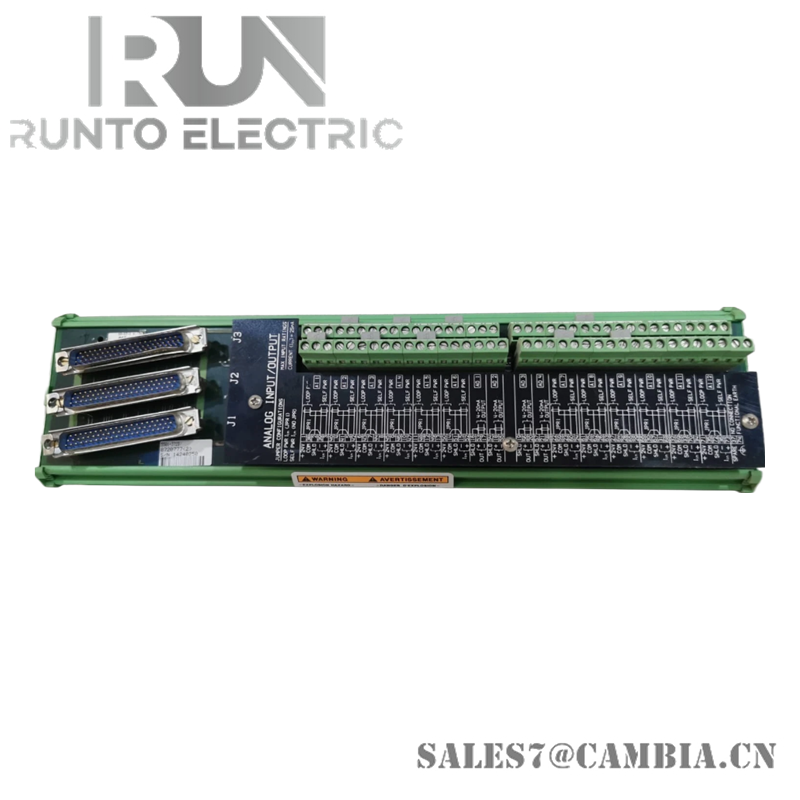

5501-376 | Woodward | Analog I/O Module

Description

Woodward 5501-376 is a rugged analog I/O module designed for precise signal acquisition and output in industrial automation environments. It supports 8 analog inputs and 8 analog outputs, making it ideal for turbine, engine, and process control systems requiring high-resolution data exchange.

Specifications

• Model: 5501-376
• Input Voltage: 18–32 VDC (24 VDC nominal)
• Analog Inputs: 8 channels (0–10 V, 4–20 mA configurable)
• Analog Outputs: 8 channels (0–10 V, 4–20 mA configurable)
• Resolution: 12-bit or higher (depending on configuration)
• Communication Protocols: Modbus RTU over RS-485
• Update Rate: Fast scan for real-time control
• Mounting: DIN rail or panel mount
• Operating Temperature: –40°C to +70°C
• Protection Rating: IP20 (standard enclosure)
• Dimensions: Approx. 230 × 140 × 80 mm
• Weight: Approx. 1.4 kg
