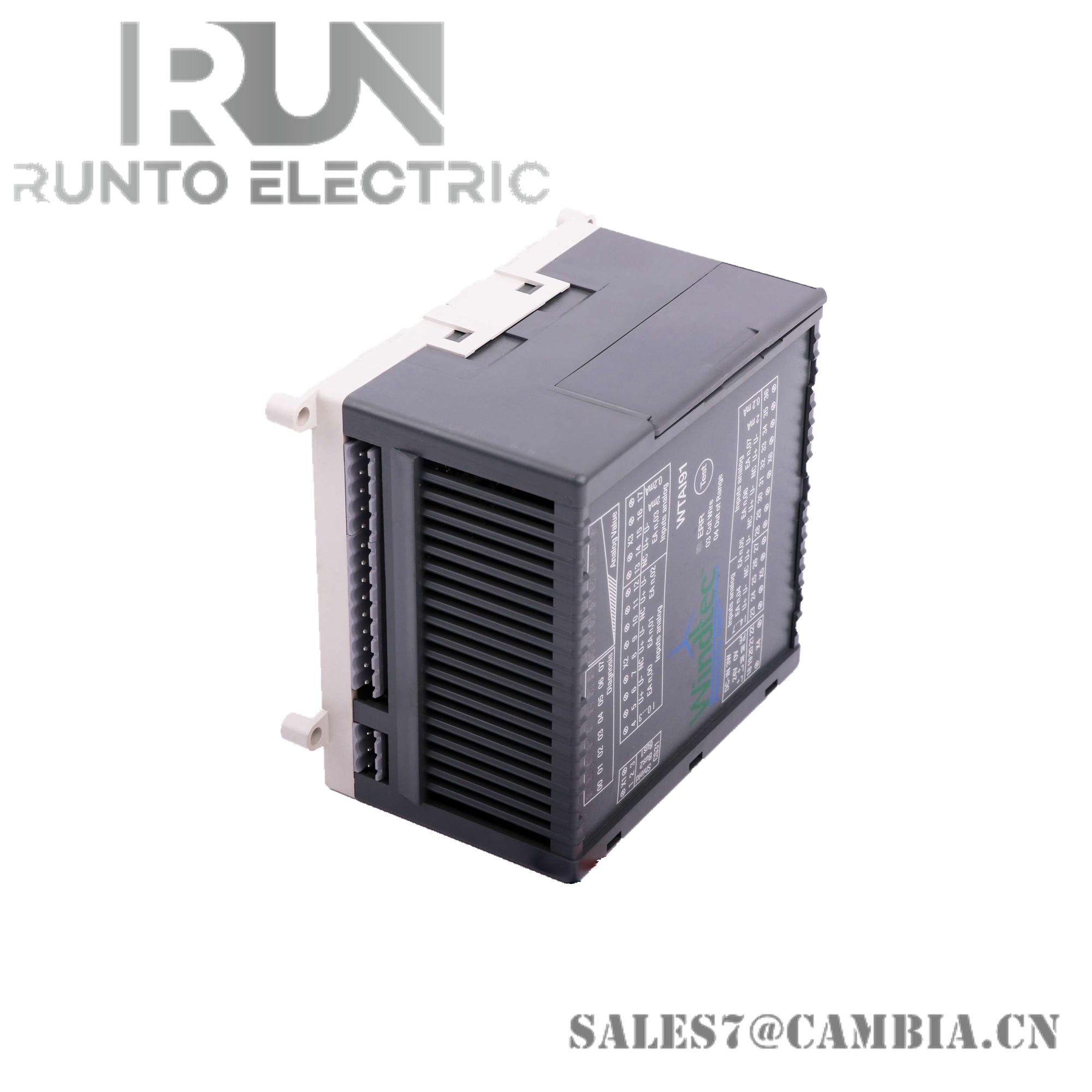

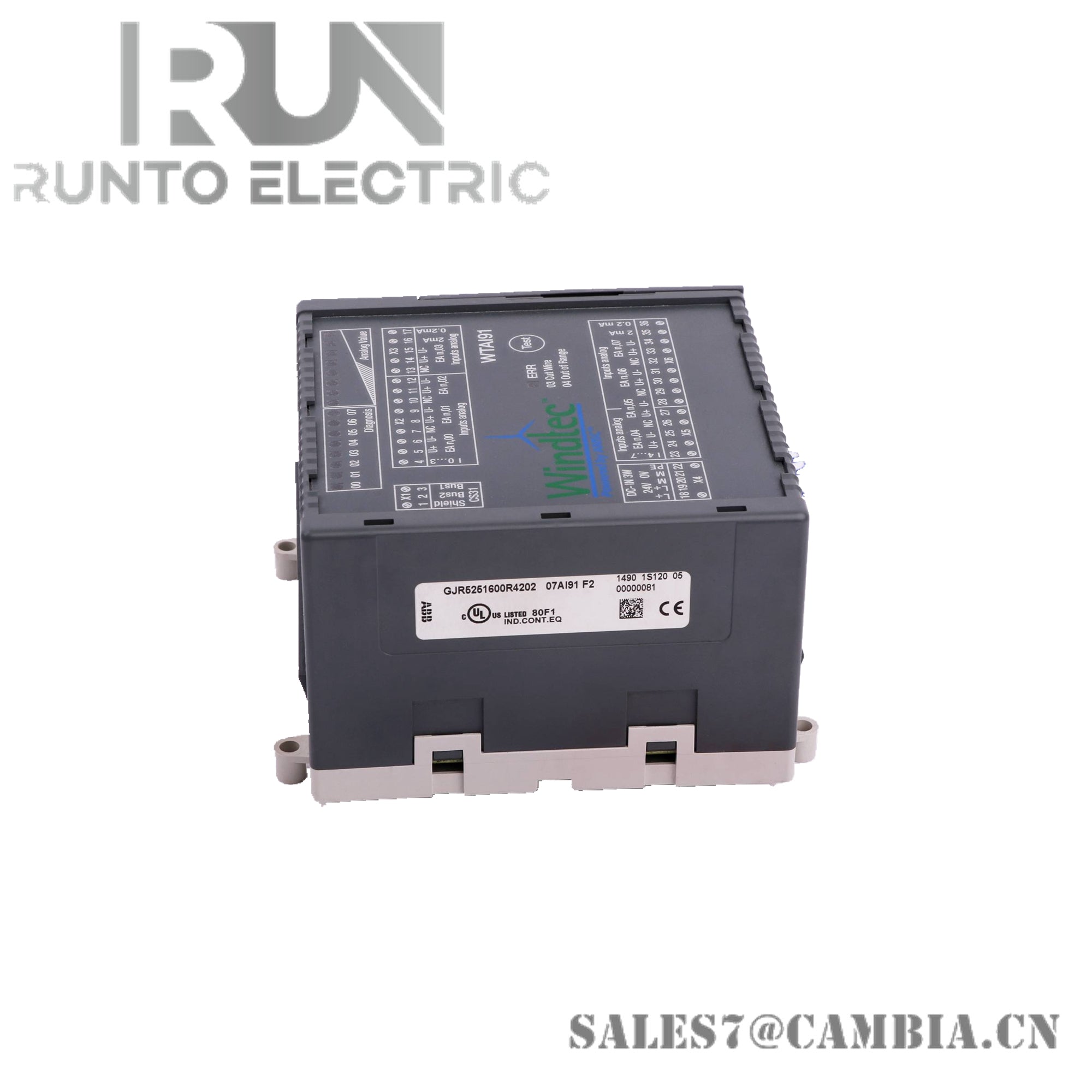

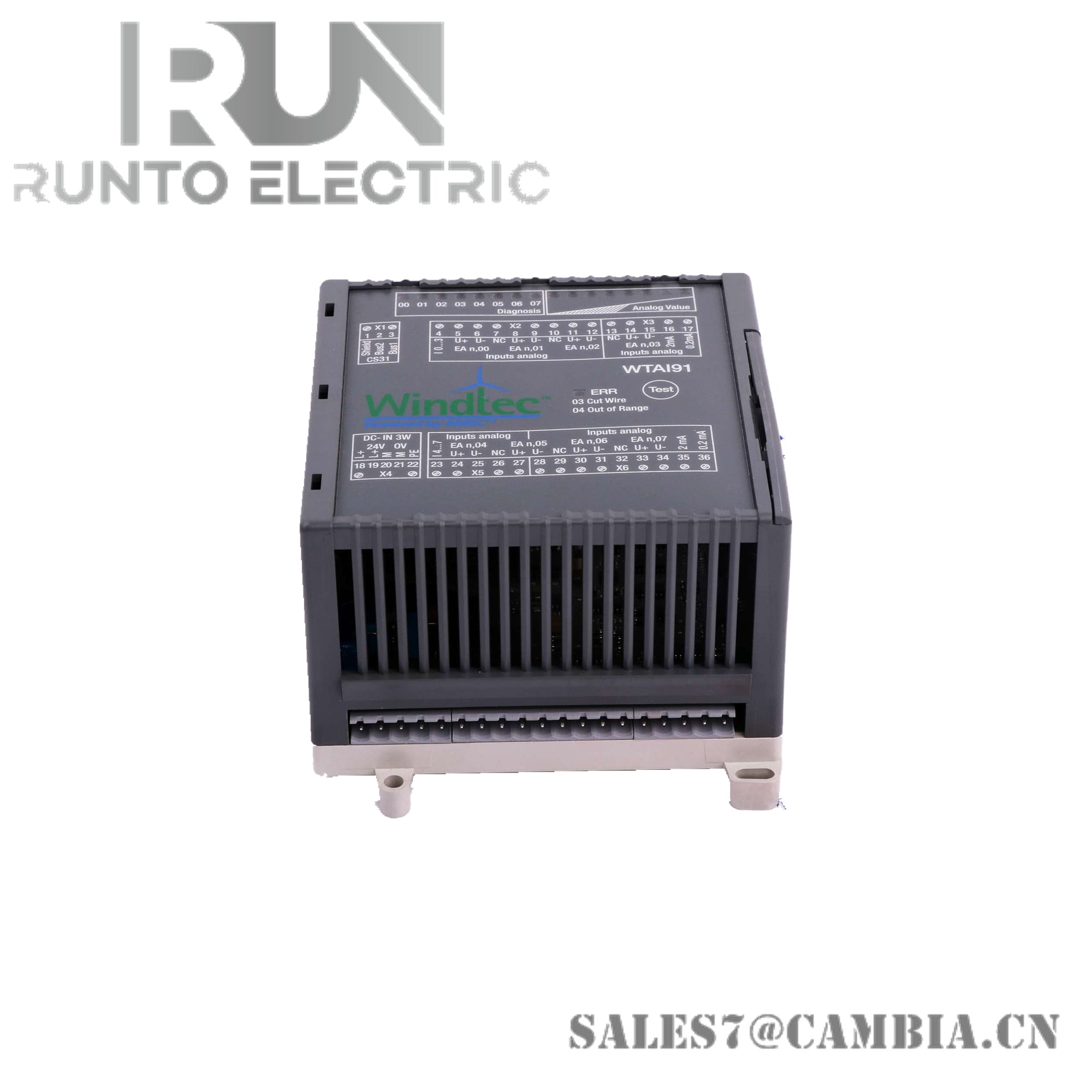

ABB 07AI91 WT91 GJR5251600R4202 Analog Input Unit

General Information

• Extended Product Type: 07AI91
• Product ID: GJR5251600R0202
• ABB Type Designation: 07AI91
• Catalog Description: 07AI91:AC31, Analog I/O module
• Long Description: 07AI91:AC31, Analog I/O module 8AI, 24VDC, U/I/RTD, 8/12bit+Sign 1/3-wire, CS31

Additional Information

• ABB Type Designation: 07AI91
• Ambient Air Temperature:
  • Operation: 0 ... +55 °C
  • Storage: -25 ... +75 °C
• Analog Inputs: 8 channels, thermocouple (J, K, S), PT100, PT1000, -50 ... +50 mV, -500 ... +500 mV, -5 ... +5 V, -10 ... +10 V, 0 ... 20 mA, 12 bit + sign
• Cable Cross-Section: 0.08 ... 1.5 mm²
• CN8: 85389091
• Country of Origin: Germany (DE), Spain (ES)
• CS31-Bus: 1
• Degree of Protection: IP20
• Fieldbus Interface Type: CS31 Slave
• Frame Size: Undefined
• Gross Weight: 0.48 kg
• I/O Option: Bus module with Onboard IO - 8AI
• Invoice Description: 07AI91:AC31, Analog I/O module
• Made To Order: No
• Maximum Operating Altitude Permissible: 2000 m
• Minimum Order Quantity: 1 piece
• Mounting on DIN Rail:
  • TH35-15 (35 x 15 mm Mounting Rail) according to IEC 60715
  • TH35-7.5 (35 x 7.5 mm Mounting Rail) according to IEC 60715
• Number of Analog Configurable I/Os: 0
• Order Multiple: 1 piece
• Primary Voltage: 24 V
• Product Depth: 85 mm
• Product Main Type: 07AI91
• Product Name: Distributed Automation I/O
• Product Net Depth / Length: 85 mm
• Product Net Height: 140 mm
• Product Net Weight: 0.48 kg
• Product Net Width: 120 mm
• Product Type: PLC-AC31-90
• RoHS Status: No declaration needed
• Selling Unit of Measure: piece
• Serial Port 1 Type: RS-485, CS31
• Short Description: 1/3-wire, CS31
• Stocked At (Warehouses):
  • Wickliffe, Ohio, United States
  • New Berlin, Wisconsin, United States
• Supply Voltage: 24 V DC
• Terminal Type: Screw Terminals, Pluggable
• WEEE B2C / B2B: Business To Business
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
