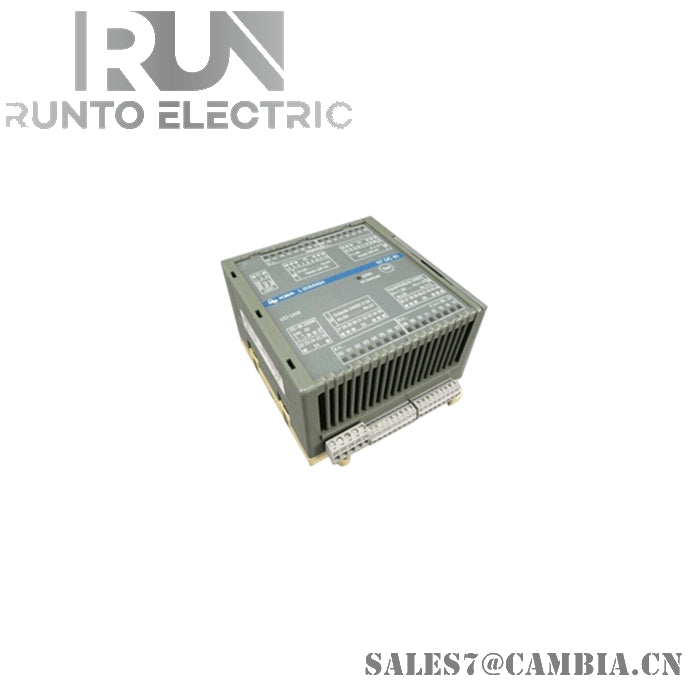

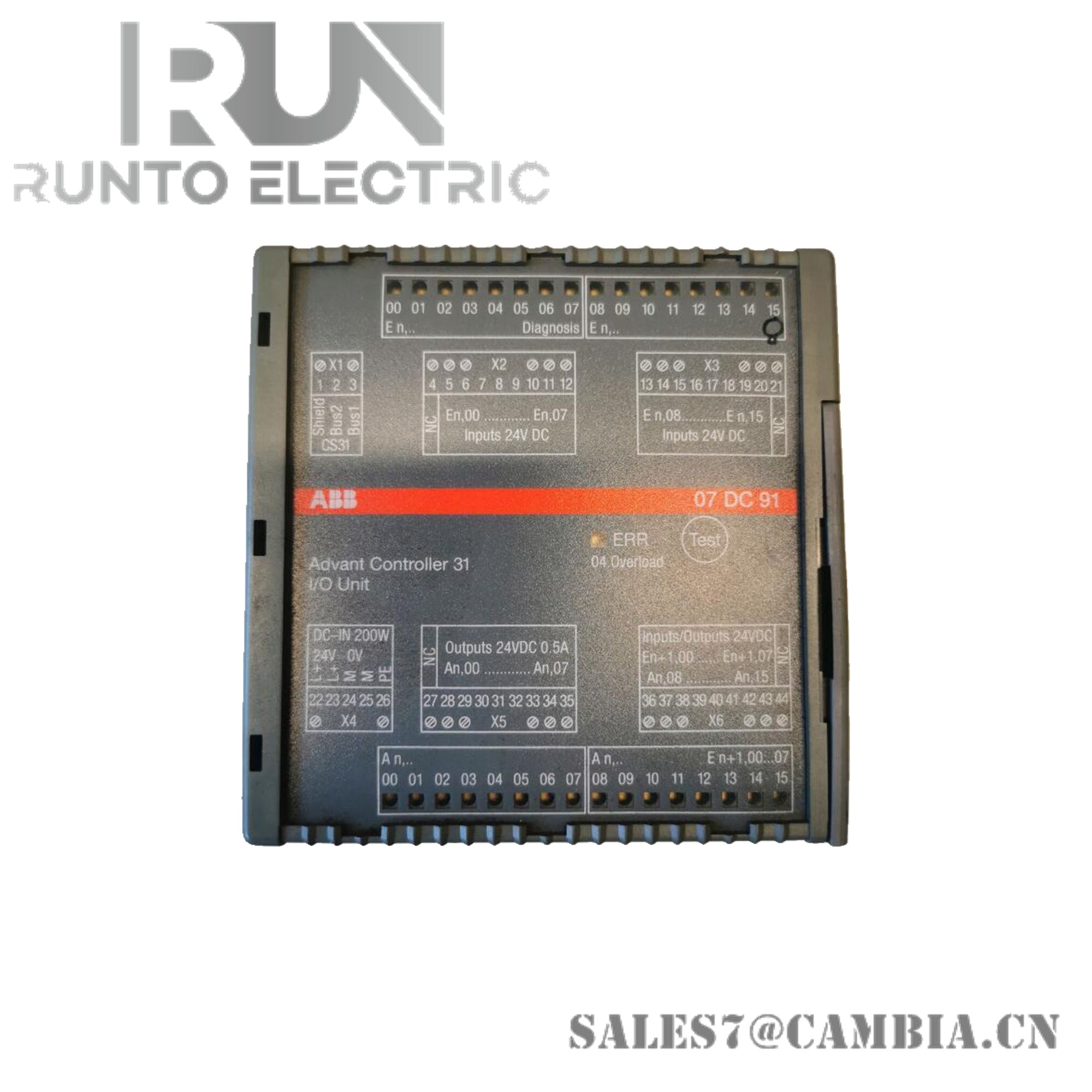

ABB 07DC91 GJR5251400R0202 Digital Input/Output Module

General Information

• Extended Product Type: 07DC91
• Product ID: GJR5251400R0202
• ABB Type Designation: 07DC91
• Catalog Description: 07DC91:AC31, Digital I/O module
• Long Description: 07DC91:AC31, Digital I/O module 16DI/8DC/8DO, 24VDC, DI: 24VDC, DO/DC: 24VDC/0.5A, 1-wire, CS31

Additional Information

• ABB Type Designation: 07DC91
• Ambient Air Temperature:
  • Operation: 0 ... +55 °C
  • Storage: -25 ... +75 °C
• Cable Cross-Section: 0.08 ... 1.5 mm²
• CN8: 85389091
• Core Credit: 0.00
• Country of Origin: Germany (DE), Spain (ES), United States (US)
• CS31-Bus: 1
• Degree of Protection: IP20
• eClass: 27-24-22-04
• Fieldbus Interface Type: CS31 Slave
• Frame Size: Undefined
• Gross Weight: 1.07 kg
• I/O Option: Bus module with Onboard IO - 16DI / 8DO-T / 8DC
• Invoice Description: 07DC91:AC31, Digital I/O module
• Made To Order: No
• Maximum Operating Altitude Permissible: 2000 m
• Minimum Order Quantity: 1 piece
• Mounting on DIN Rail:
  • TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  • TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
• Number of Analog Configurable I/Os: 0
• Number of Digital Configurable I/Os: 8
• Number of Digital Inputs DC 24V: 16
• Number of Digital Outputs DC 24V: 8
• Order Multiple: 1 piece
• Output Current: 0.5 A
• Output Voltage (Uout): 24 V DC
• Part Type: New
• Primary Voltage: 24 V
• Product Depth: 85 mm
• Product Main Type: 07DC91
• Product Name: Distributed Automation I/O
• Product Net Depth / Length: 85 mm
• Product Net Height: 140 mm
• Product Net Weight: 1.07 kg
• Product Net Width: 120 mm
• Product Type: PLC-AC31-90
• Quote Only: No
• RoHS Status: No declaration needed
• Selling Unit of Measure: piece
• Serial Port 1 Type: RS-485, CS31
• Short Description: DO/DC: 24VDC/0.5A, 1-wire, CS31
• Stocked At (Warehouses):
  • Menden, Germany
  • Wickliffe, Ohio, United States
  • Ladenburg, Germany
• Supply Voltage: 24 V DC
• Terminal Type: Screw Terminals, Pluggable
• UNSPSC: 32151705
• WEEE B2C / B2B: Business To Business
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
