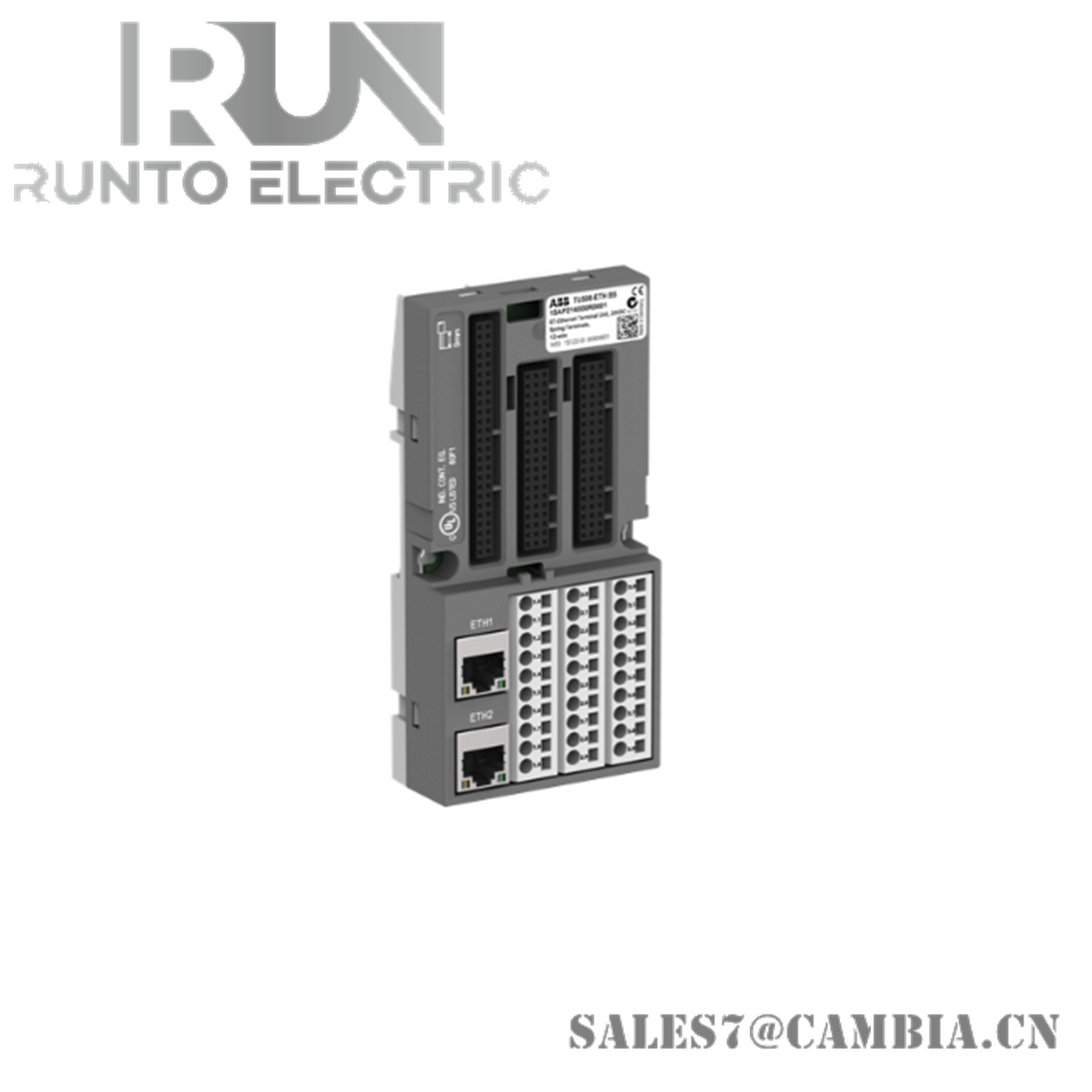

ABB 1SAP214000R0001 TU508-ETH Interface Terminal Unit

Description

• Manufacturer: ABB
• Extended Product Type: TU508-ETH
• Product ID: 1SAP214000R0001
• ABB Type Designation: TU508-ETH
• EAN: 4016779649612
• Catalog Description: Interface terminal unit for Ethernet protocols with spring terminals.
• Long Description: The TU508-ETH is a part of the S500 Interface terminal unit series designed for Ethernet protocols. It features spring terminals and includes two RJ45 connectors for network connectivity.

Features

• Function: Designed for Ethernet protocols
• Terminals: Spring terminals
• Connectors: 2 RJ45 connectors
• Degree of Protection: IP20
• Supply Voltage: 24 V DC
• Operating Temperature: 0 to +60°C
• Storage Temperature: -40 to +70°C

Specifications

• Product Main Type: TU508
• Product Name: Distributed Automation I/Os
• Product Net Weight: 0.168 kg
• Product Net Depth / Length: 28 mm
• Product Net Height: 135 mm
• Product Net Width: 67.5 mm

Environmental Information

• SCIP: f1c51aad-1de0-4120-827a-874c3b22f529 (Germany)
• WEEE Category: 5 (Small Equipment, No External Dimension More Than 50 cm)
• WEEE B2C / B2B: Business To Business
