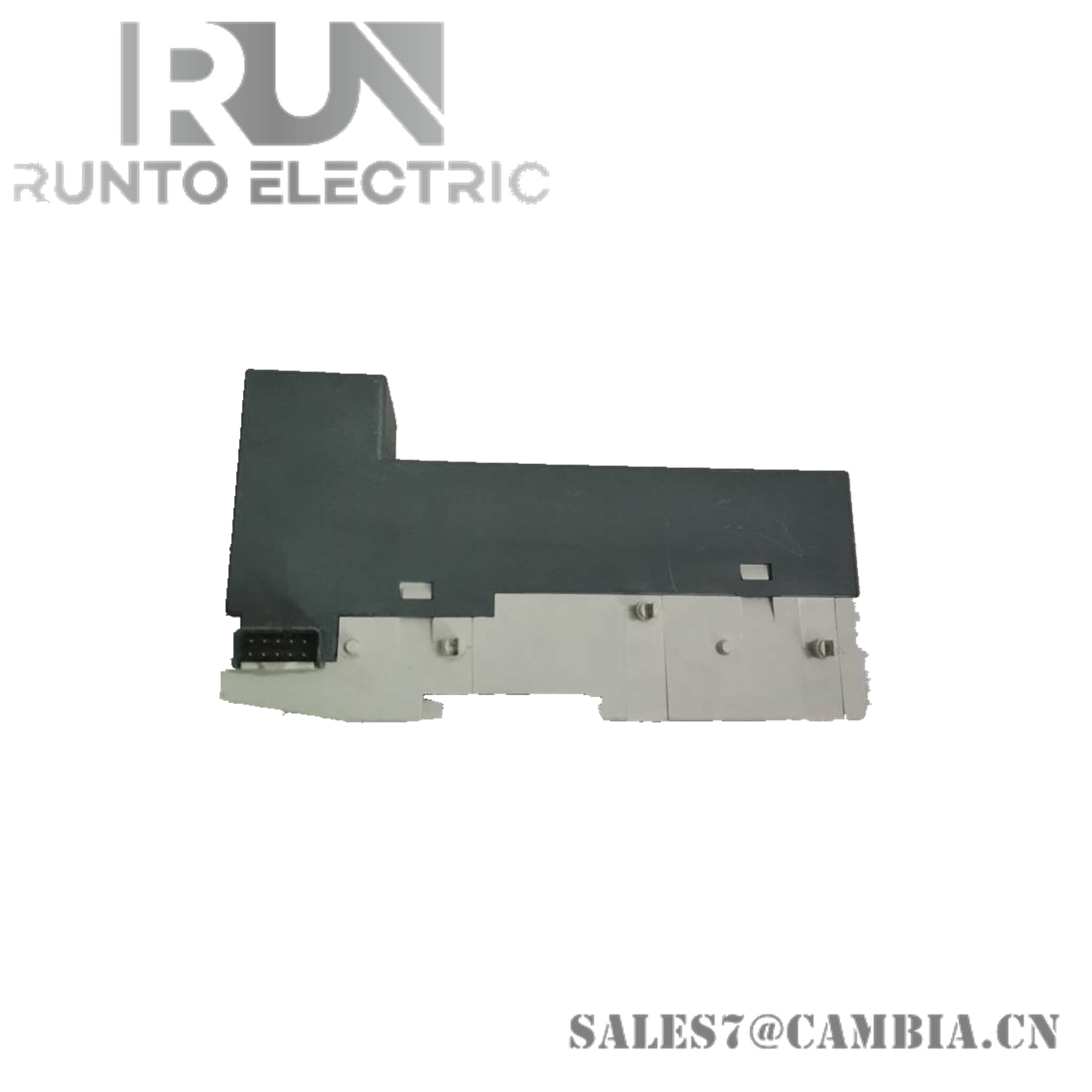

ABB 1TNE968902R2201 DO561 Digital Output Module
Description
General Information
- Extended Product Type: DO561
- Product ID: 1TNE968902R2201
- ABB Type Designation: DO561
- EAN: 6943747170244
- Catalog Description: Digital output module. 8 DO: 24VDC 0.5A (DO561)
- Long Description: DO561: S500-eCo Digital output module. 8 DO: 24VDC 0.5A. 1-wire.
Dimensions
- Product Net Weight: 0.118 kg
- Product Net Depth / Length: 135 mm
- Product Net Height: 74 mm
- Product Net Width: 34 mm
- Gross Weight: 0.22 kg
- Package Level 1 Depth / Length: 93 mm
- Package Level 1 Height: 63 mm
- Package Level 1 Width: 170 mm
- Package Level 1 Units: 1 carton
Technical
- Function: 8 DO: 24VDC 0.5A
- Number of Digital Outputs: 8
- Number of Digital Configurable I/Os: 0
- Output: Transistor
- Output Voltage Type: DC
- Output Voltage (Uout): 24 V
- Output Current: 0.5 A
- Output Voltage Maximum: 20.4 … 28.8 V
- Connection Type: Pluggable
- Degree of Protection: IP20
- Supply Voltage: 20.4 … 28.8 V DC
- Ambient Air Temperature: Operation 0 ... +60 °C, Storage -40 ... +70 °C
Additional Information
- Product Main Type: DO561
- Product Name: Distributed Automation I/Os
Classifications
- eClass: 27-24-22-04
- ETIM 8: EC001419 - PLC digital I/O-module
- UNSPSC: 32151705
Environmental
- SCIP: 2eb4df9f-fadb-42d7-9bd4-222520fe1d85 Germany (DE)
- WEEE B2C / B2B: Business To Business
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
