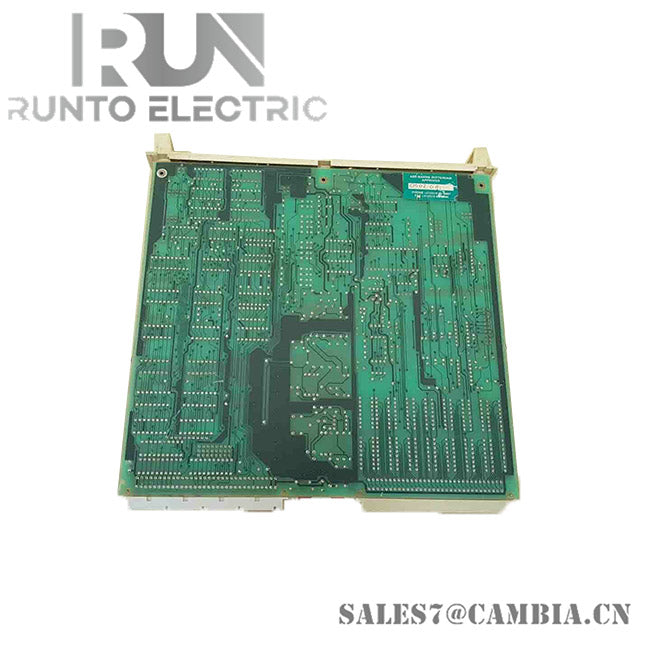

ABB 35AB90 GJR5132200R0001 Redundant I/O Module

Description

The ABB 35AB90 (GJR5132200R0001) is a high-reliability redundant I/O module designed for use in ABB’s industrial control systems. It supports both digital and analog signal processing and is ideal for safety-critical applications requiring continuous operation and fault tolerance.

Specifications

• Product Type: Redundant I/O Module
• Part Number: GJR5132200R0001
• Input Voltage: 24 VDC ±10%
• Power Consumption: Approximately 3 W
• Digital Inputs: 16 channels, 24 VDC, 5 mA per channel
• Digital Outputs: 16 channels, solid-state relays, 24 VDC, max 0.5 A per channel
• Analog Inputs: 8 differential channels, 4–20 mA or 0–10 V, 16-bit resolution
• Analog Outputs: 4 channels, 4–20 mA or 0–10 V, 16-bit resolution, max 600 Ω load
• Communication Interface: RS485 (Modbus RTU), 9600–115200 bps
• Supported Protocols: Modbus RTU, Industrial Ethernet, TCP/IP
• Redundancy: Dual-channel communication support
• Operating Temperature: –25°C to +70°C
• Storage Temperature: –40°C to +85°C
• Humidity Range: 10%–95% RH, non-condensing
• Dimensions: 125 mm × 75 mm × 60 mm
• Weight: 0.85 kg
• Country of Origin: Switzerland


Features

• Redundant Architecture: Ensures continuous data exchange and fault-tolerant operation
• Multi-Signal Support: Handles digital and analog inputs/outputs in one module
• High Accuracy: 16-bit resolution with ±0.1% full-scale precision
• Surge Protection: IEC 60255-5 compliant, 1500 V isolation
• Compact Design: Space-efficient for control cabinet integration
• Industrial Protocols: Supports Modbus RTU and Ethernet for flexible connectivity
• Robust Environmental Tolerance: Operates reliably in harsh industrial conditions
• Plug-and-Play Integration: Compatible with ABB Advant OCS and 800xA systems
