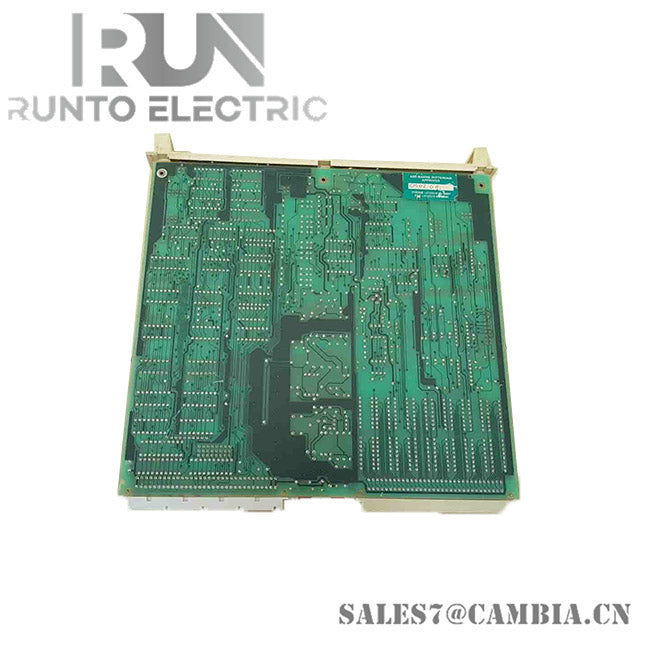

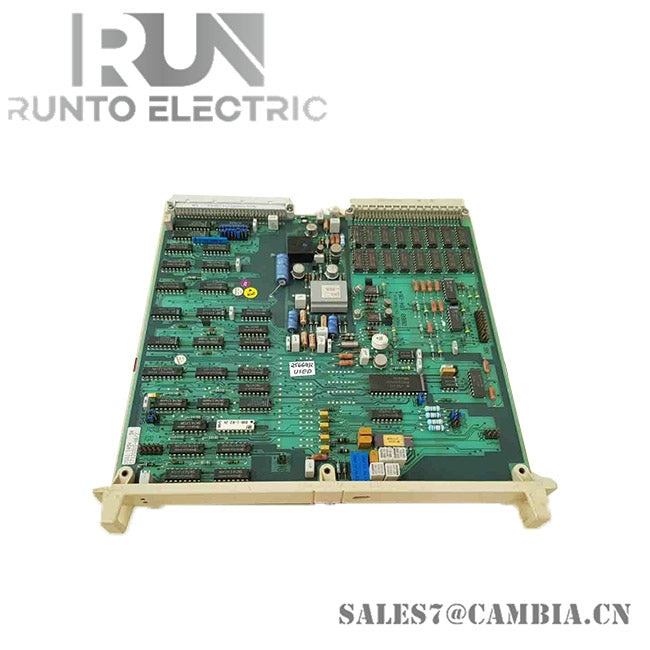

ABB 35ZP93B-E GJR5133200R0011 PCB Module
SKU: 35ZP93B-E GJR5133200R0011
In stock
Description

Description

The ABB 35ZP93B-E is a high-performance industrial PCB module from the Procontic DP800 family, designed for distributed automation systems. It functions as a logic, communication, or interface module within ABB’s CS31-based control architecture. Engineered for fast data processing and robust signal integrity, it’s ideal for power generation, process control, and discrete automation environments.

Specifications

  • Model: 35ZP93B-E
  • Part Number: GJR5133200R0011
  • Product Type: Procontic DP800 PCB Module
  • System Compatibility: ABB CS31 distributed control systems
  • Function: Logic control / Communication / Bus interface
  • Power Supply: 24 VDC nominal (via system backplane)
  • Digital Inputs:
    • Channels: 16
    • Voltage: 24 VDC
    • Current: 5 mA per channel
    • Impedance: 4.7 kΩ
    • Isolation: 1000 V between I/O and logic
  • Digital Outputs:
    • Channels: 16
    • Type: Solid-state relay
    • Voltage Range: 12–30 VDC
    • Max Current: 0.5 A per channel
    • Protection: Overvoltage & short-circuit
  • Communication Interface: RS-485
  • Protocol Support: Modbus RTU (TCP/IP optional)
  • Diagnostics: Built-in self-test, LED indicators
  • Cooling: Passive convection
  • PCB Protection: Coated for dust and moisture resistance
  • Operating Temp: –25°C to +70°C
  • Storage Temp: –40°C to +85°C
  • Humidity: 10%–95% RH, non-condensing
  • Dimensions: 2.5 cm × 27.9 cm × 20.3 cm
  • Weight: Approx. 0.6 kg
  • Country of Origin: Switzerland

Features

  • Multi-Function Capability: Supports logic, communication, and bus interfacing
  • High Signal Integrity: 1000 V isolation and surge protection (IEC 60255-5)
  • Modular Integration: Slot-mountable into DP800 racks
  • Protocol Flexibility: Modbus RTU native, TCP/IP optional
  • Environmental Resilience: Wide operating range and coated PCB for harsh conditions
  • Diagnostics Ready: LED indicators and self-test functions for real-time status
  • Compact & Lightweight: Ideal for space-constrained control cabinets
  • ABB Ecosystem Compatibility: Seamless with CS31 and Procontic systems
