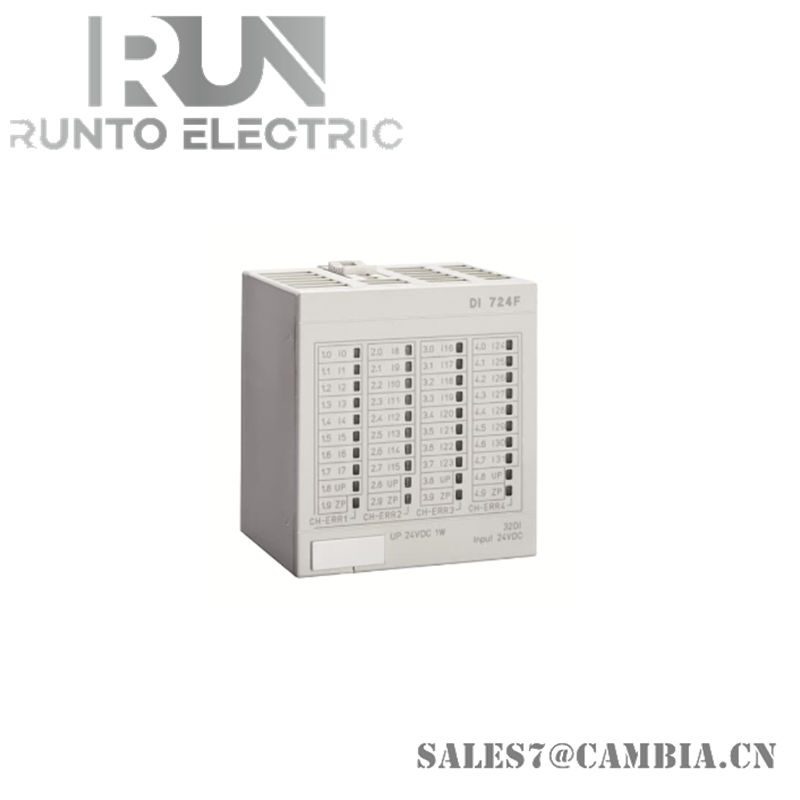

ABB 3BDH000374R0005 DI 724F Digital Input Module

Description:

The DI 724F is a digital input module specifically designed for the AC500 and S500 systems. It offers a versatile and cost-effective 32-channel digital input interface with high noise immunity. The inputs are electrically isolated from the other electronic circuitry of the module, ensuring reliable performance in industrial environments.

Features:

• 32 Digital Inputs: Supports 24V DC inputs divided into four groups (1.0…4.7).
• Electrically Isolated Inputs: Each input is isolated from the module's other electronic circuitry.
• No Potential Separation Between Channels: Channels share a common potential.
• Usability: Suitable for PROFIBUS remote I/O and AC 700F / AC 900F direct I/O applications.

Specifications:

• Dimensions: Dimensions specified in mm.
• Power Requirements: 24 VDC.
• Temperature:
  • Operating: 0 °C to +60 °C for horizontal mounting of modules.
  • Operating: 0 °C to +40 °C for vertical mounting of modules.
• Humidity: Maximum 95%, without condensation.
• Air Pressure: Operating conditions up to 800 hPa / < 2000 m.
• Ingress Protection: IP20.
