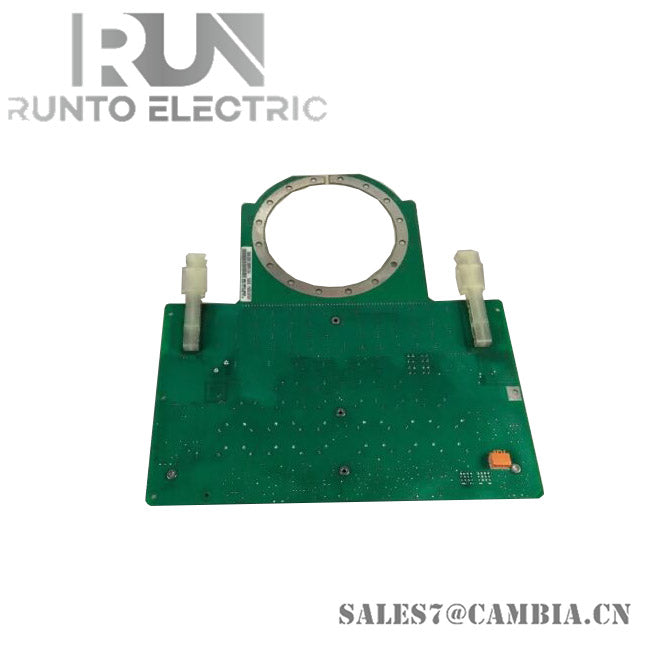

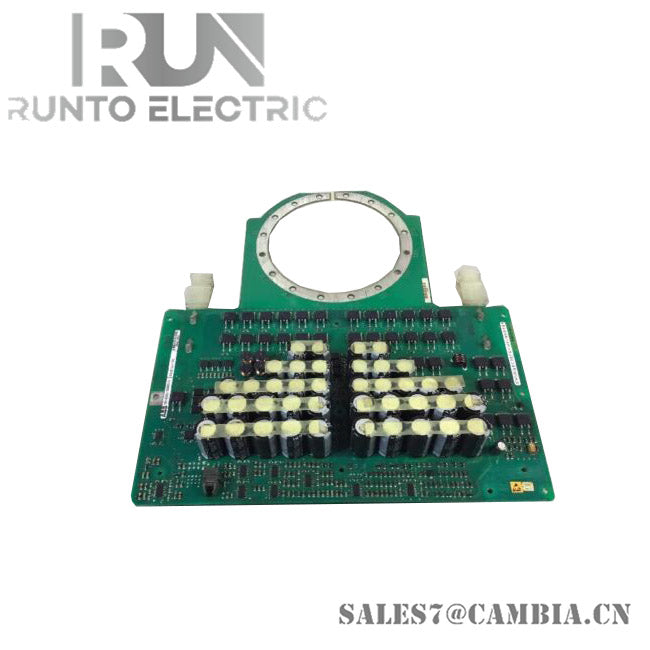

ABB 3BHB003154R0101 3BHC000389P0104 5SHX2645L0004 IGCT Module Board
In stock
Description

Runto Electronic Automation Limited

Product Number

3BHB003154R0101 3BHC000389P0104  5SHX2645L0004

3BHB003154R0101
3BHC000389P0104
5SHX2645L0004
Module Board

ABB 3BHB003154R0101 3BHL000389P0104 5SHX2645L0004 IGCT module is an intelligent power module that has the following characteristics:

  • High performance: The IGCT module adopts an integrated gate driver circuit and thermal sensor, with the characteristics of high-speed switching and low loss, which can work at high frequencies and provide efficient power conversion.
  • Reliability: The IGCT module has extremely low leakage current and high voltage resistance, and can work in harsh environments, with long lifespan and high reliability.
  • Simplified design: The IGCT module adopts integrated design, reducing the number of components and wiring length on the circuit board, and reducing system costs and failure rates.

The working principle of the IGCT module is based on insulated gate control transistor (IGCT) technology. It consists of a PNPN structure that can be quickly switched on and off under high voltage and high current. When the control signal is applied to the insulation gate, the PNPN structure will form a conduction channel, allowing current to pass through. When the control signal disappears, the channel is cut off and the current stops flowing. The IGCT module can achieve efficient power conversion by controlling signals.
The following are the technical parameters of ABB 3BHB003154R0101 3BHL000389P0104 5SHX2645L0004 IGCT module:
Maximum voltage: 4500V
Maximum current: 2400A
Maximum power: 10MW
Working temperature range: -40 ℃ to+125 ℃
Packaging form: modular
