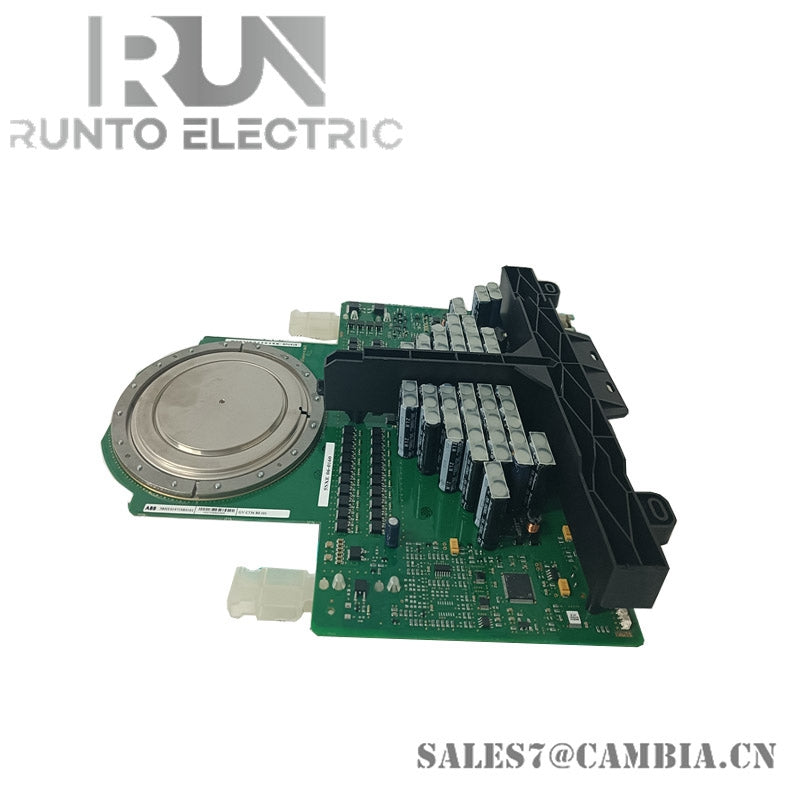

ABB 3BHB004027R0101 3BHL000382P0101 5SHX0445D0001 IGCT Module

Description:

The 3BHB004027R0101 3BHL000382P0101 5SHX0445D0001 IGCT Module is engineered for high-power switching applications, delivering efficient and reliable performance in industrial automation and control systems.

Specifications:

• Voltage: 6.5 kV
• Current: 1150 A
• Switching Frequency: Up to 2 kHz
• Cooling Method: Water-cooled
• Dimensions: 230 mm x 110 mm x 34 mm (9.06 in x 4.33 in x 1.34 in)
• Weight: 0.35 kg (0.77 lbs)
• Country of Origin: Sweden

Features:

• High Voltage and Current Handling: Designed to handle voltages up to 6.5 kV and currents up to 1150 A, making it suitable for demanding applications.
• High Switching Frequency: Capable of supporting switching frequencies up to 2 kHz for enhanced performance.
• Water-Cooled Design: Equipped with a water-cooling system to ensure efficient thermal management and reliable operation.
• Compact Form Factor: Its space-saving design makes it ideal for various industrial applications where size is a concern.
