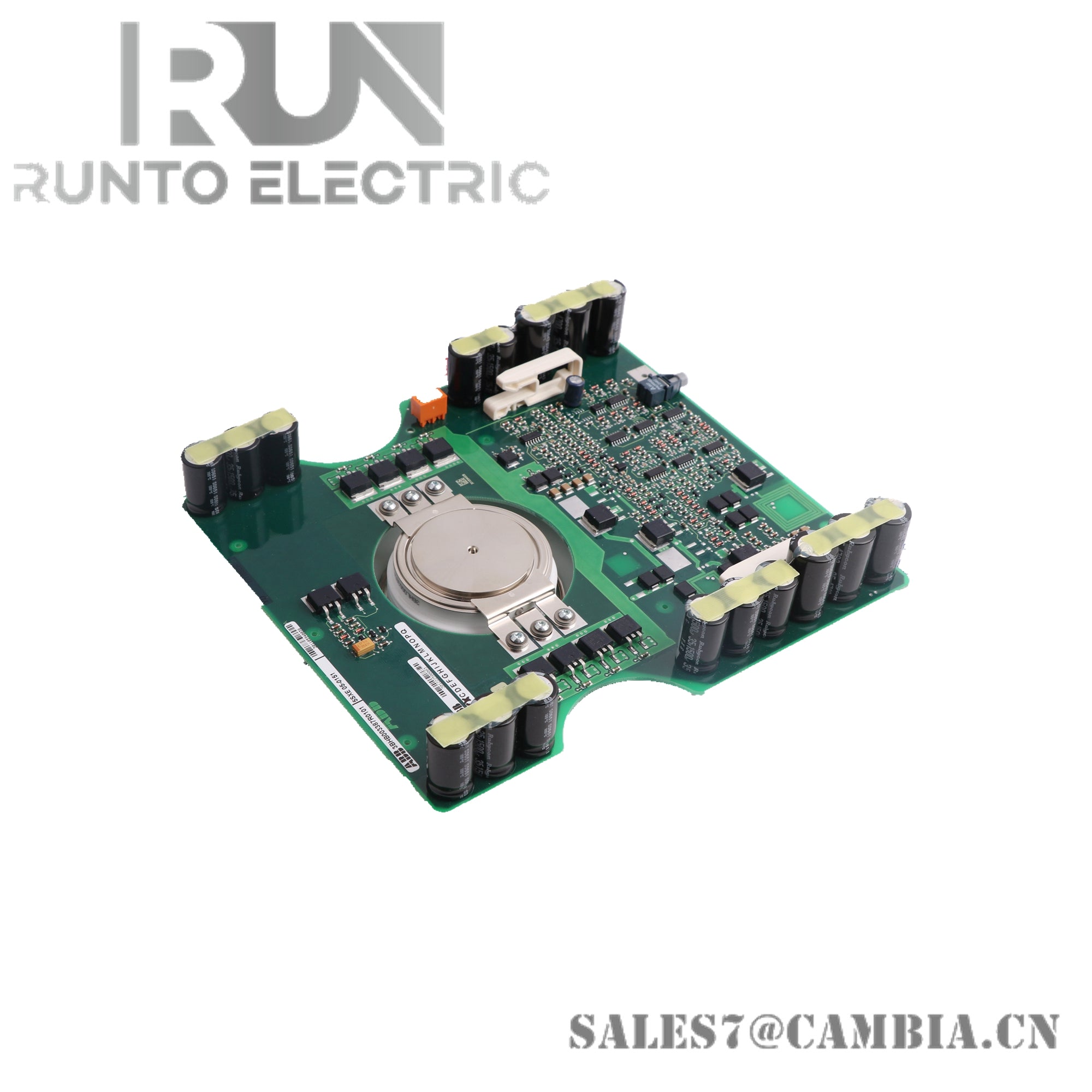

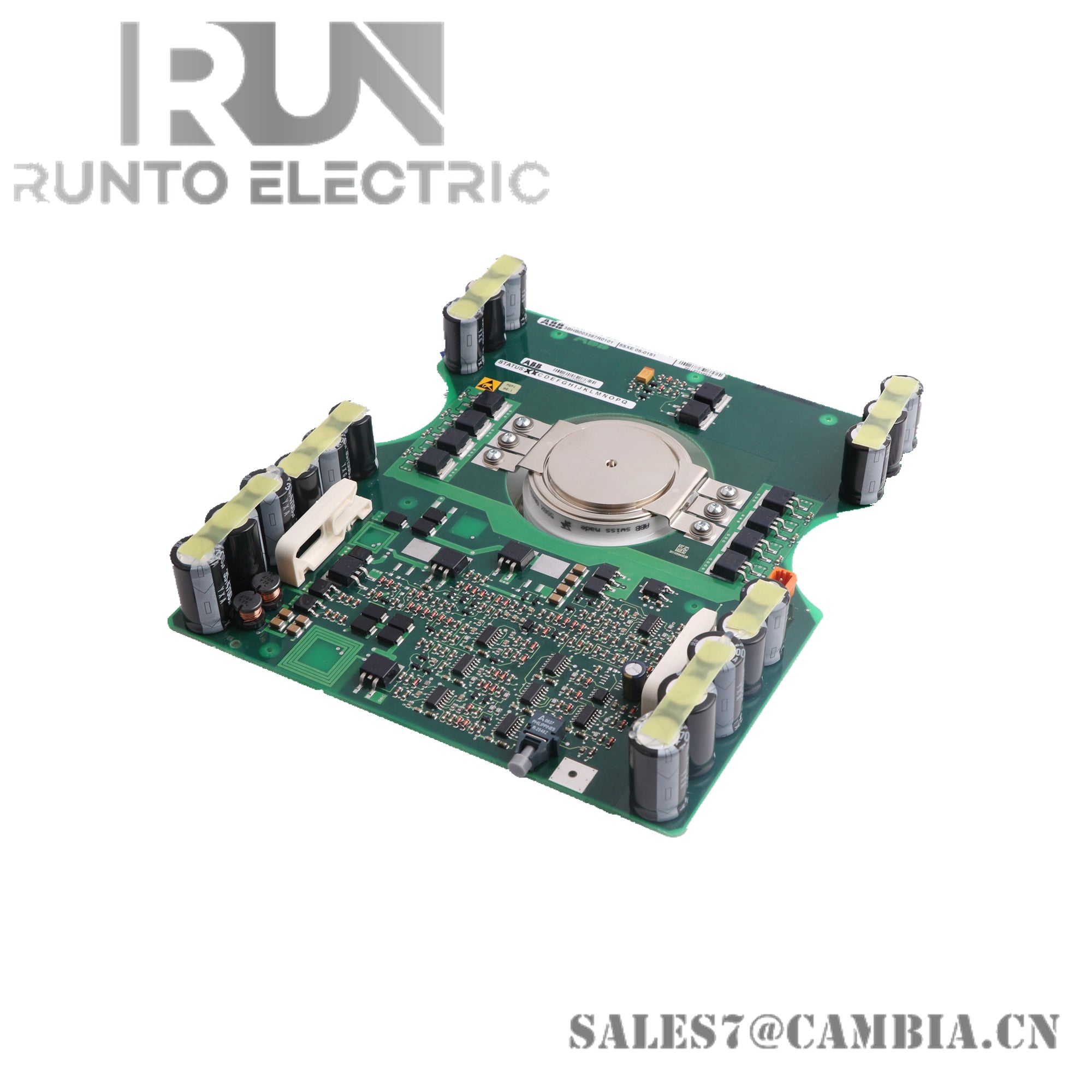

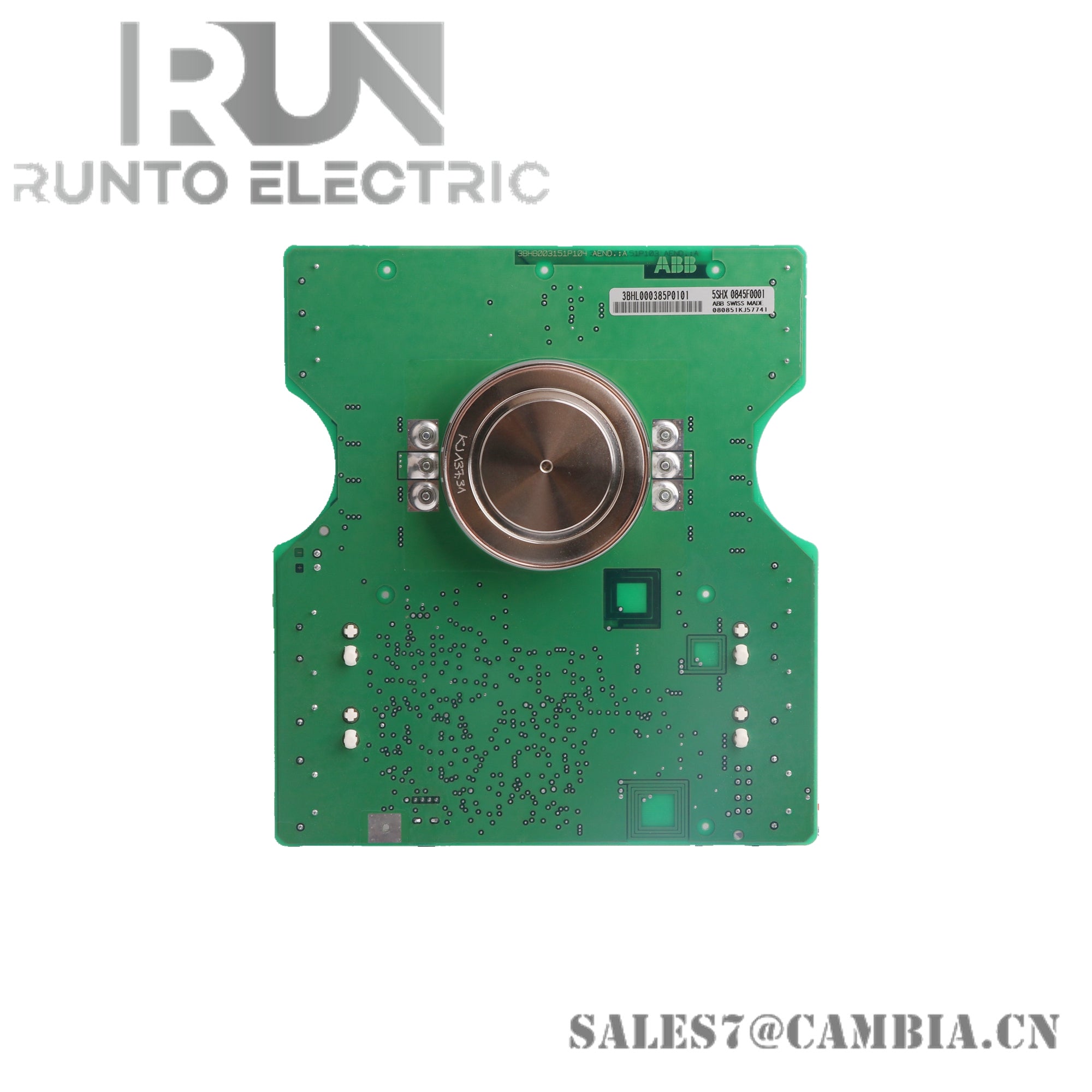

ABB 3BHB013088R0001 5SHY3545L0010 Integrated Gate Commutated Thyristor

Overview:

The ABB 3BHE009681R0101 3BHB013088R0001 5SHY3545L0010 is a high-power Integrated Gate-Commutated Thyristor (IGCT) module.

Features:

• High voltage (4500V) and current (3500A) ratings
• Fast turn-on and turn-off times
• Low switching losses
• High surge current capability
• Integrated gate driver

Technical Specifications:

• Nominal Voltage: 4500V
• Nominal Current: 3500A
• Peak Turn-on Gate Current: 1000A
• Peak Turn-off Gate Current: 1000A
• Turn-on Time: 1.5μs
• Turn-off Time: 1.5μs
• On-state Voltage Drop: 2.5V
• Off-state Leakage Current: 10mA
• Junction Temperature: 125°C

NEW AND ORIGINAL ITEM IN STOCK

WITH ONE YEAR WARRANTY
