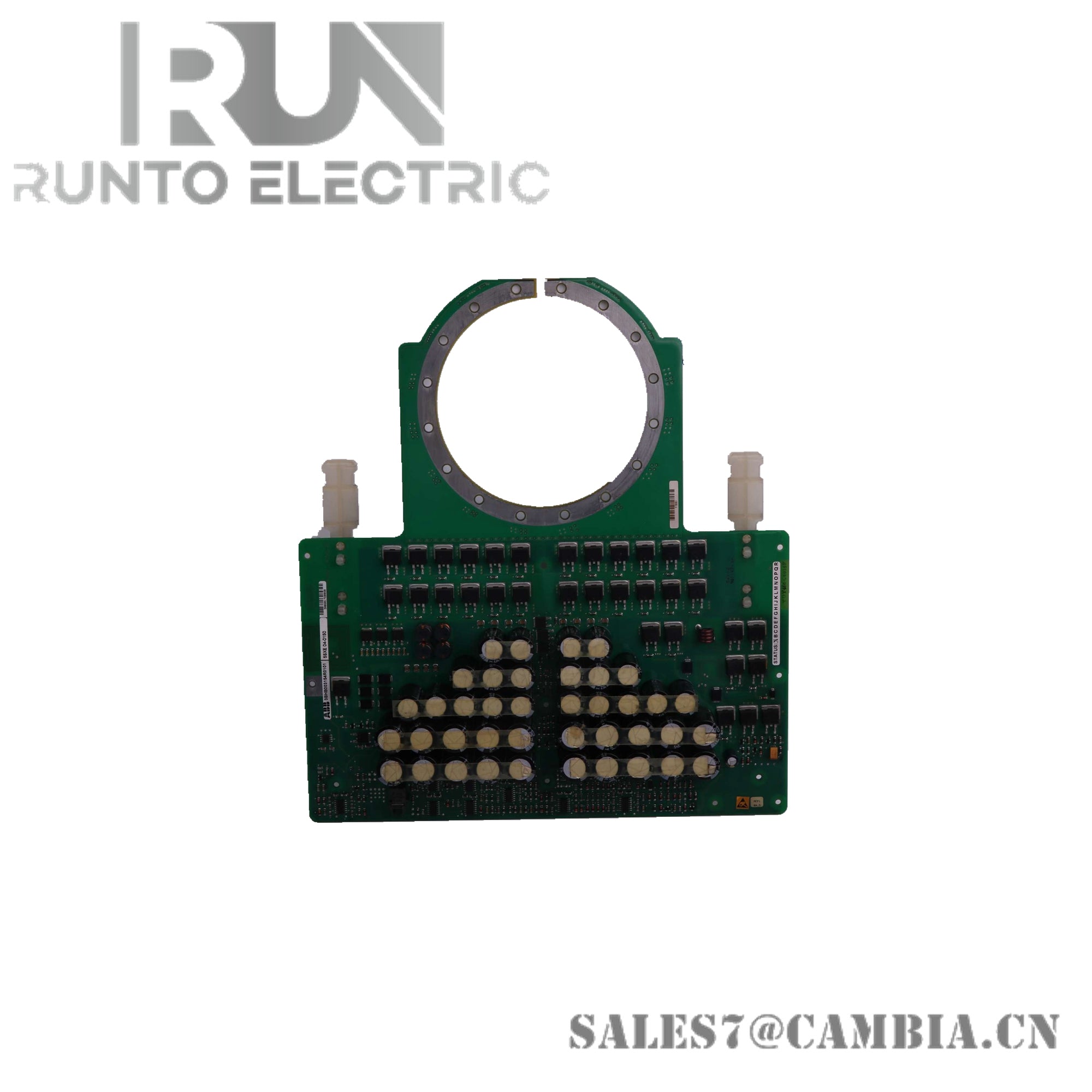

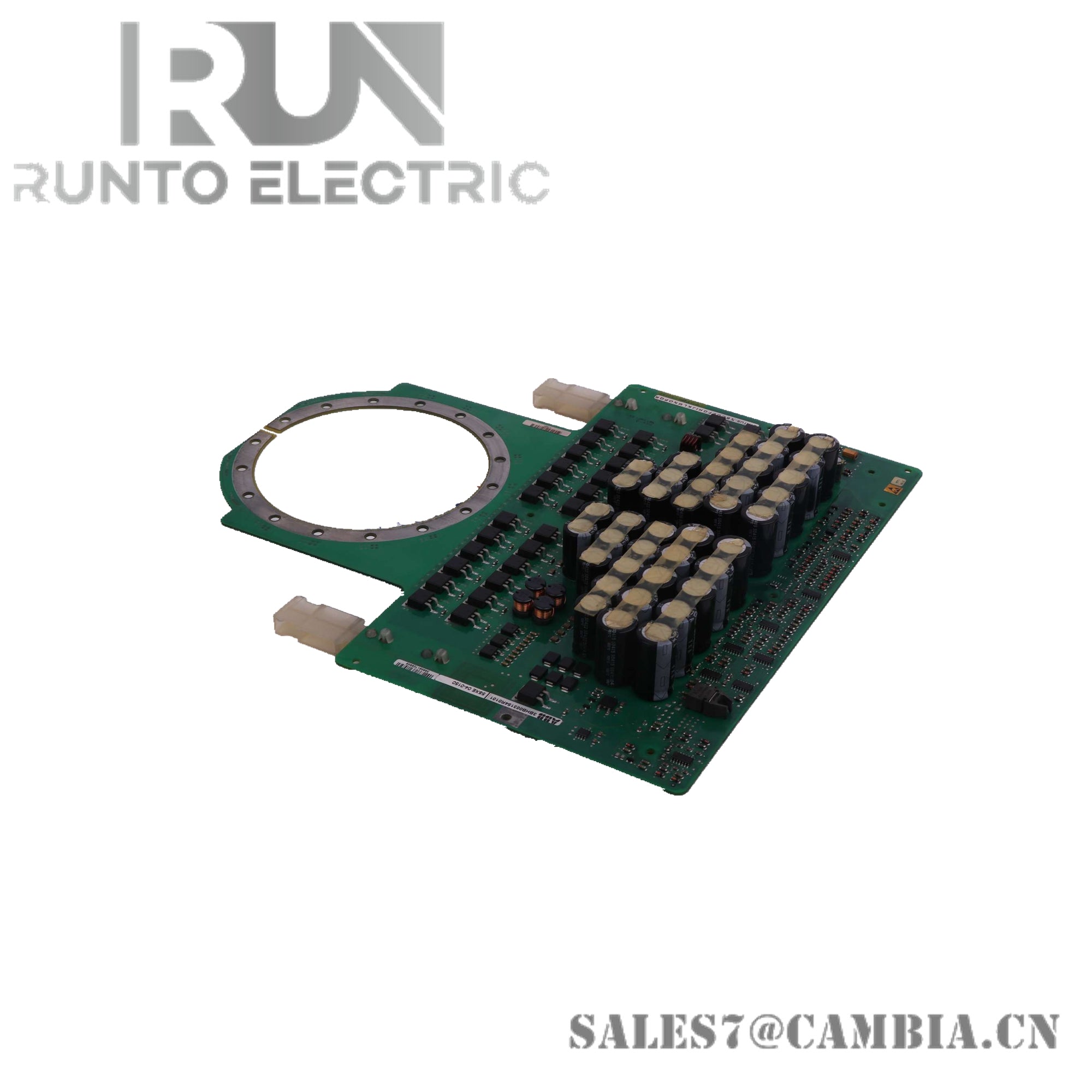

ABB 3BHE014105R0001 5SHY3545L0020 5SXE05-0154 IGCT/IGBT Modules

Description

ABB’s 3BHE014105R0001, 5SHY3545L0020, and 5SXE05-0154 are advanced IGCT/IGBT modules engineered for high-power conversion, motor control, and precision automation. These modules are optimized for demanding industrial environments requiring reliability and thermal stability.

Specifications

3BHE014105R0001:

• Module Type: Control Interface Board
• Voltage Class: Low-voltage signal processing
• Dimensions: Compact PCB format
• Compatibility: ABB IGCT stack systems

5SHY3545L0020:

• Technology: Integrated Gate-Commutated Thyristor (IGCT)
• Voltage Rating: 4500 V
• Current Rating: 3545 A
• Package Type: Press-pack
• Application: Medium-voltage drives, HVDC systems

5SXE05-0154:

• Technology: IGBT Driver Board
• Voltage Class: Up to 1200 V
• Control Interface: Fiber-optic or electrical
• Cooling: Passive/forced air depending on system
• Application: Power electronics and inverter systems


Features

3BHE014105R0001:

• Signal conditioning: Ensures accurate control signal transmission
• System integration: Designed for seamless stack-level coordination
• Compact design: Optimized for space-constrained installations

5SHY3545L0020:

• High thermal stability: Suitable for continuous high-load operation
• Low conduction losses: Improves system efficiency
• Robust mechanical design: Withstands vibration and pressure

5SXE05-0154:

• Fast switching response: Enhances inverter performance
• Flexible interface options: Supports multiple control protocols
• Reliable isolation: Protects control systems from high-voltage transients
