ABB

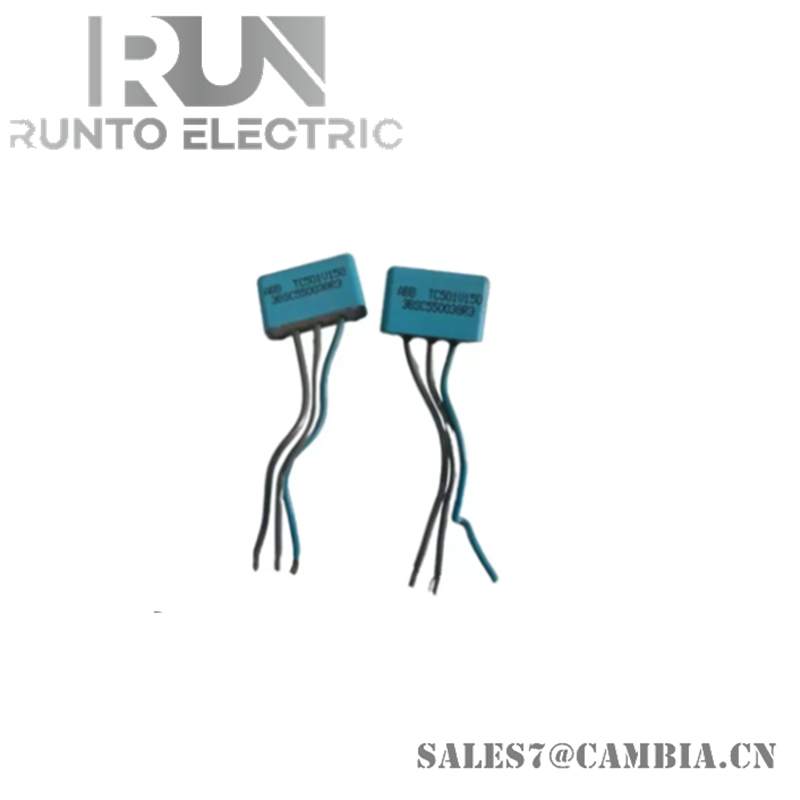

ABB 3BSC550038R3 TC501V150 Termination Unit
SKU: 3BSC550038R3 TC501V150
In stock
Description

General Information

  • Product ID:3BSC550038R3
  • ABB Type Designation:TC501V150
  • Catalog Description:TC501V150 Termination Unit, 150 Ohm

Technical Information

  • Speed Meter Input: Max 50 kHz, ±13 mA, 24 V d.c. or 5 V d.c.
  • Direction Detection: Through a second speed meter input.
  • Overspeed Trip Logic: Includes trip signal output via solid state 24 V d.c. and dry contact 60 V d.c.
  • Isolation: Speed meter inputs and solid state output are individually opto-isolated.
Dimensions
  • Product Net Depth / Length: 100 mm
  • Product Net Height: 30 mm
  • Product Net Width: 200 mm
  • Product Net Weight: 0.005 kg
Environmental
  • RoHS Status: Following EU Directive 2011/65/EU
  • WEEE Category: Product Not in WEEE Scope
