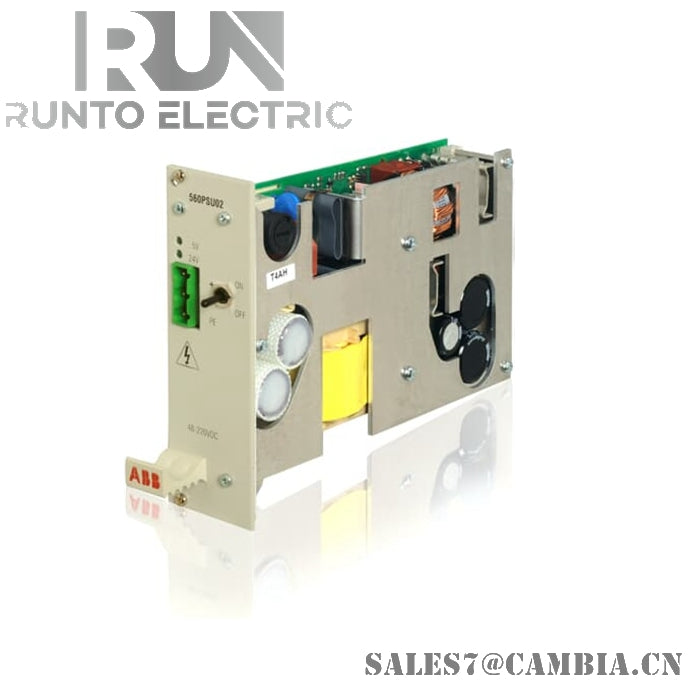

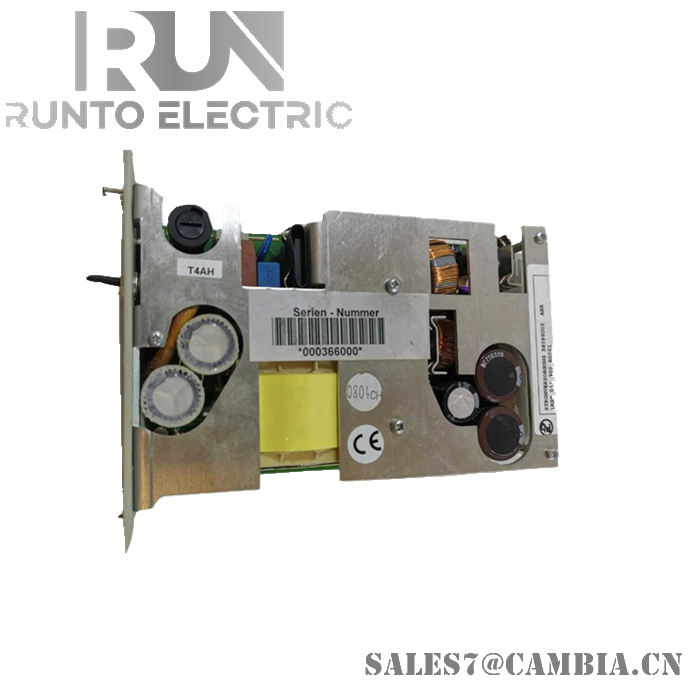

ABB 560PSU02 R0001 1KGT011900R0001 Power Supply Unit

Power Supply Unit for RTU560 Racks

• Input Voltage: 48...220 V DC
• Output Voltage: 5 and 24 V DC
• Suitable for Redundant Power Supply in 560MPR03/560SFR02

Application:

The power supply unit 560PSU02 generates the two supply voltages (5 V DC and 24 V DC) for the RTU560 subracks 560MPR03 and 560SFR02. The output power is sufficient to supply a subrack with up to 8 communication units (CMU). It is possible to configure redundant power supplies for project configurations with higher requirements to availability. In this configuration, two power supply units 560PSU02 are operating in parallel mode. They are able to take over the full load if one power supply fails. Only power supplies of the same type and rubric should be used for redundant operation. The power supply unit 560PSU02 is available in the following version (rubric):

• R0001 Input range 48 ... 220 V DC (-20%... +20%)

Technical Data:

• Power Supply Input

  • Input Voltage: 48 ... 220 V DC
  • Input Tolerance Range: -20%... +20%
  • Voltage Interruption: ≤ 50 ms; 0 % UN (UN ≥ 48V)
  • Max. Input Current: 2.4 ... 0.5 A
  • Starting Current: <10 A; 50µs - 1.5ms (Class S1 according to IEC 60870-4)
  • Fuse: F1 = 4 A T
  • Efficiency: 74% @ 48 ... 110 V DC
  • External Circuit-Breaker: The plus lead needs a be protected by a circuit-breaker upstream with 10 A trip current.
  • Reverse Voltage Protection: Yes
  • Potential Isolation between Input and Outputs: Yes

• Power Supply Output

  • Total Output Power: 85 W
  • Derating: -2.5% / Kelvin; ≥ 50 °C
  • Output U1
    • Voltage: 5.1 V DC
    • Tolerance: 5.0... 5.3 V DC
    • Current Min.: 0 A
    • Current Max.: 15 A
    • Residual Ripple: ≤ 30 mVss
  • Output U2
    • Voltage: 24 V DC
    • Tolerance: 22.4... 26.3 V DC
    • Current Min.: 0 A
    • Current Max.: 0.4 A
    • Residual Ripple: ≤ 80 mVss

• Mechanical Layout

  • Dimensions: 160 mm x 100 mm, 3HE euro card format 8R (40 mm) front panel
  • Housing Type: Printed circuit board
  • Mounting: For mounting in RTU560 racks
  • Weight: 0.65 kg
  • Connection Type:
    • RTU560 backplane connector: 48 pole type F DIN 41612
    • Supply Connector: 3 pole 7.62 mm pluggable screw terminals (included in delivery) 0.2... 2.5 mm²/ AWG 24 - AWG 12

• Environmental Conditions - Climatic

  • Nominal Operating Temperature Range: -25 °C... 70 °C
  • Relative Humidity: 5... 95 % (non-condensing)

Ordering Information: 560PSU02 R0001 1KGT011900R0001
