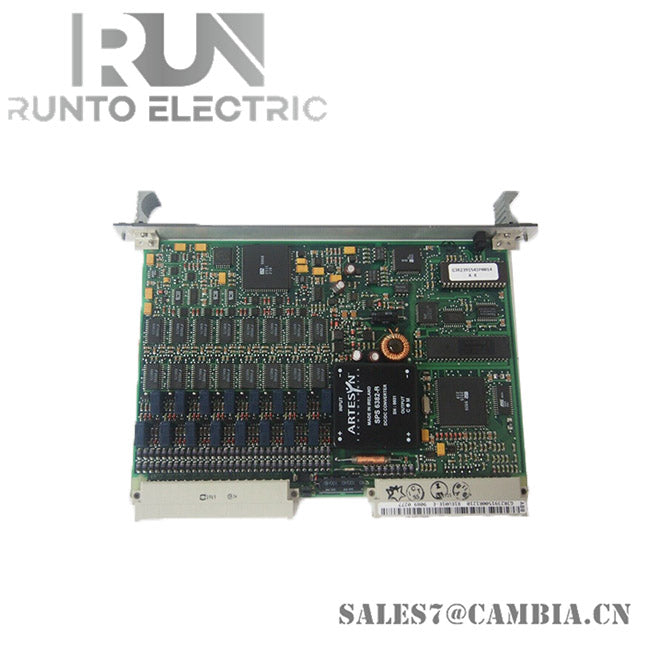

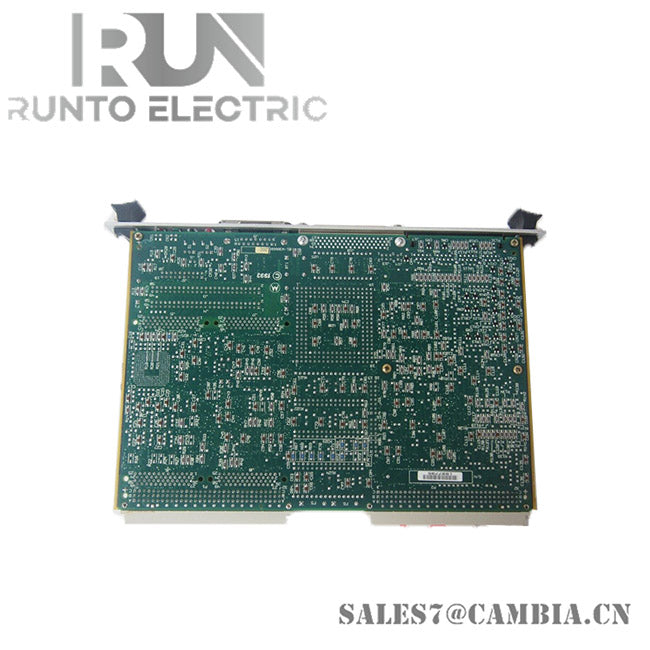

ABB 70E105A-E Low Voltage Module

General Information

• Product ID: 70E105A-E
• Type: Low Voltage Module
• Application: Used in low voltage distribution systems for protection, control, metering, and communication

Specifications

• Rated Voltage: 400 V AC
• Rated Current: 5 A
• Communication Protocols: IEC 61850, MODBUS, DNP3
• Communication Ports: Dual redundant ports for reliability
• Dimensions: 0.5 in x 10.0 in x 8.0 in (1.3 cm x 25.4 cm x 20.3 cm)
• Weight: 1 lb 0.8 oz (0.5 kg)

Features

• Versatile Applications: Suitable for feeder, motor, transformer, generator, and bus protection
• Event and Disturbance Recording: Capable of recording events and disturbances
• Self-Test Function: Ensures operational integrity
• Parameter Setting: Can be configured via local HMI or remote PC for easy setup
