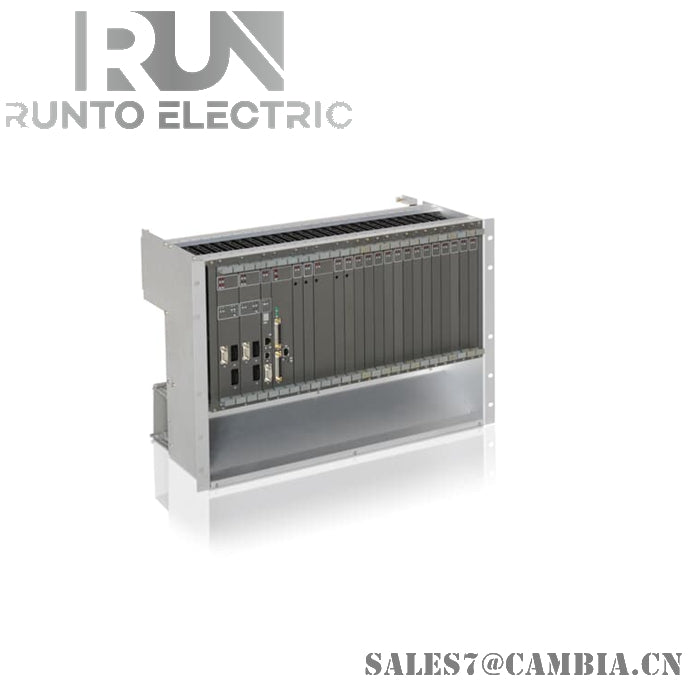

ABB 88QT03E Bus Coupling Module

General Information

• Product ID: 88QT03E
• Type: Bus Coupling Module
• Application: Connects a PROCONTROL P system to the bus of a PROCONTROL-PS protection system, enabling seamless data exchange between the two systems.

Specifications

• Dimensions: 1.3 cm x 25.4 cm x 20.3 cm (0.5 in x 10.0 in x 8.0 in)
• Weight: 0.5 kg (1 lb 0.8 oz)
• Power Supply: 24V
• Interfaces:
  • One SS standard interface for the station bus
  • One SEA standard interface for the PROCONTROL-PS bus
• Data Transfer Rate: Up to 200 telegrams to and from the station bus

Features

• Hot-Swappable: Can be plugged in or removed while the system is operational, provided the user lists are pre-loaded.
• Automatic Initialization: Self-initializes upon being plugged in, ensuring quick and efficient setup.
• Fault Monitoring: Monitors the PROCONTROL-PS system for faults and reports them to the PROCONTROL P system.
• Event Logging: Logs events that occur on the PROCONTROL-PS system.
• System Integration: Integrates protection system data into the PROCONTROL P control system, enhancing overall system functionality.
