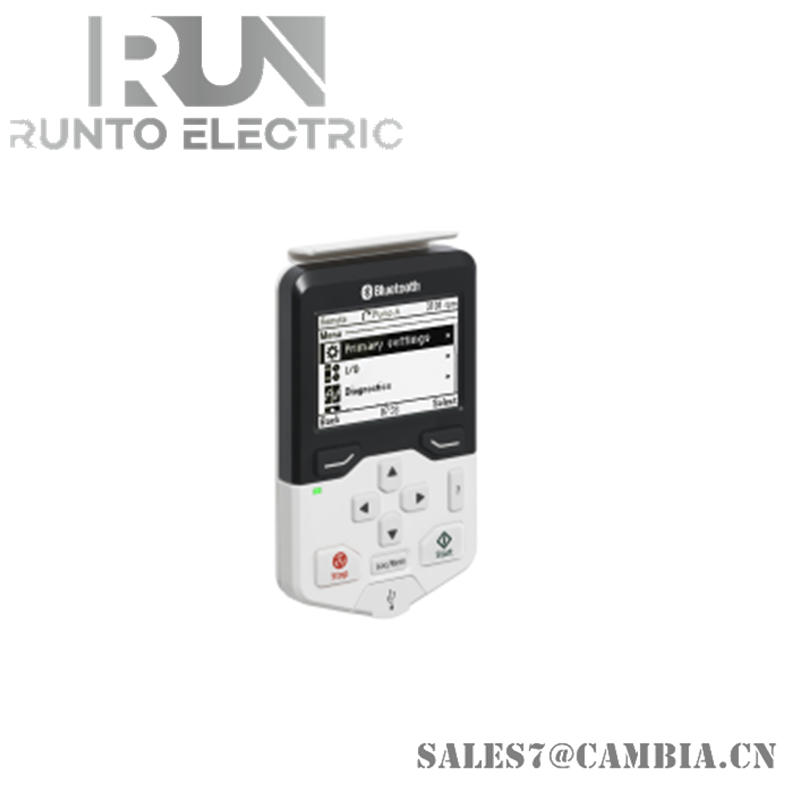

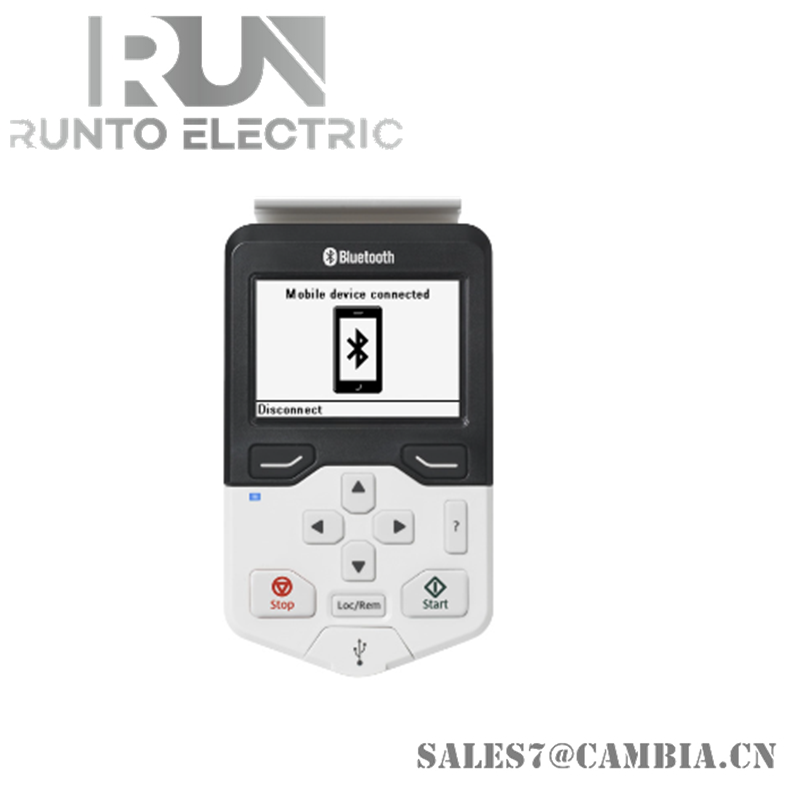

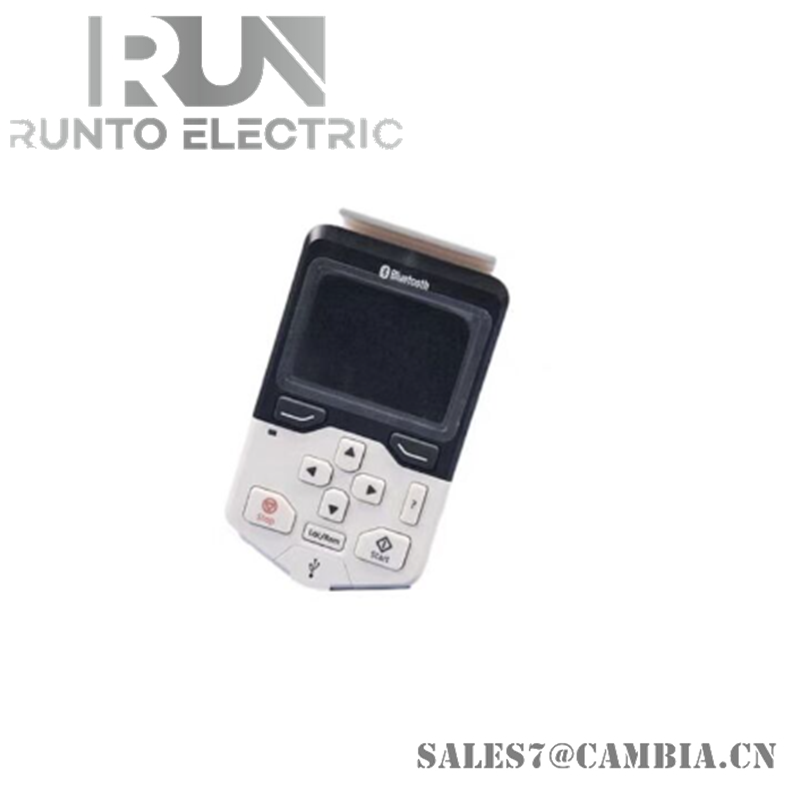

ABB ACS-AP-W Control Panel Kit-Packed

General Information

• Global Commercial Alias: ACS-AP-W
• Product ID: 3AXD50000025965
• ABB Type Designation: ACS-AP-W
• EAN: 6438177379744
• Catalog Description: Assistant control panel with Bluetooth interface
• Invoice Description: Assistant control panel with Bluetooth interface

Key Features

• Wireless Interface: Bluetooth communication for convenient drive access
• Portable Design: Compact and lightweight, ideal for on-site setup
• Display Functionality: Intuitive parameter navigation and drive diagnostics
• Compatibility: Suitable for ABB drive families such as ACS380, ACS580, ACS880, and others supporting Bluetooth connection
• Power Source: Integrated CR2032 lithium coin battery (3 V, 220 mAh)

Technical Data

• Frame Size: ACS400_option
• Battery Type: Lithium Coin CR2032, 220 mAh, 3 V, 1 pc (3 g)
• Connectivity: Bluetooth wireless interface
• Function: Parameterization, configuration, control, and diagnostics of drives

Dimensions & Weight

• Width: 74 mm (2.913 in)
• Height: 129 mm (5.079 in)
• Depth: 28 mm (1.102 in)
• Net Weight: 0.13 kg (0.287 lb)

Environmental & Compliance

• RoHS Declaration: 3AXD10001273010 (Compliant with EU Directive 2011/65/EU and 2015/863)
• REACH Declaration: 9AKK107992A7060
• REACH Information: Contains substances > 0.1 mass % (as per REACH)
• SCIP Reference: 388d1281-279e-4f26-b5c1-d31afccd3101 (Finland)
• WEEE Category: Product not in WEEE scope
