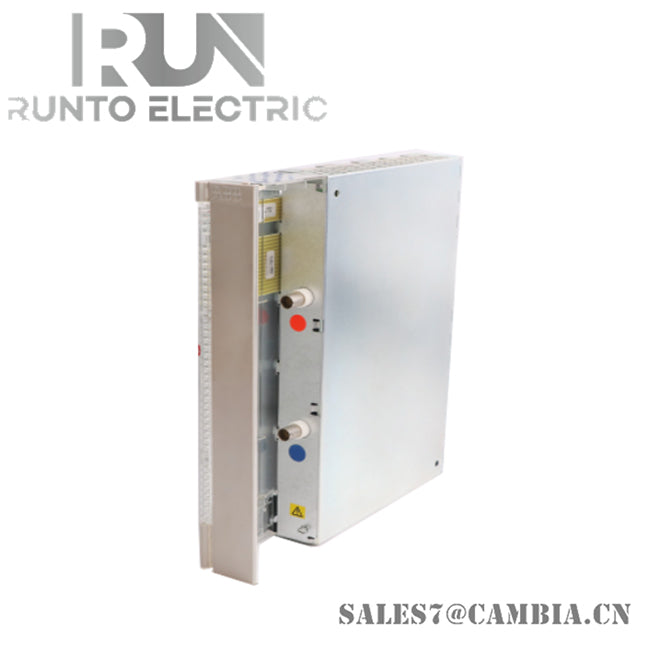

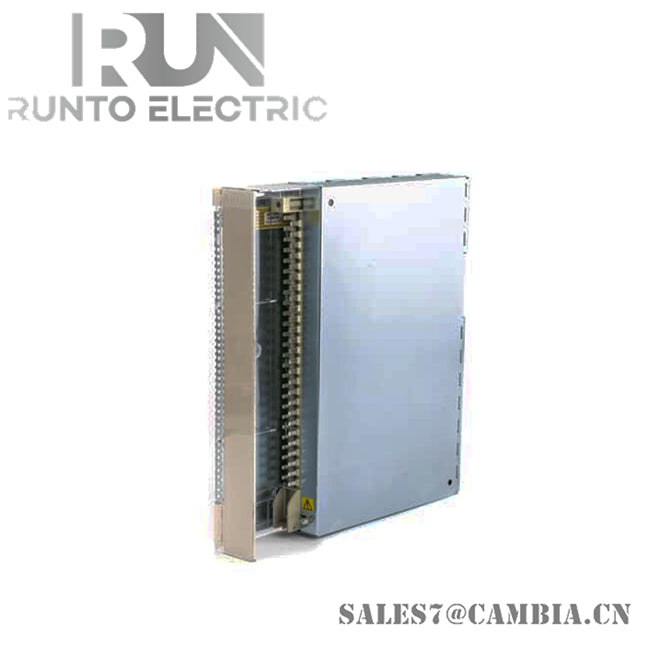

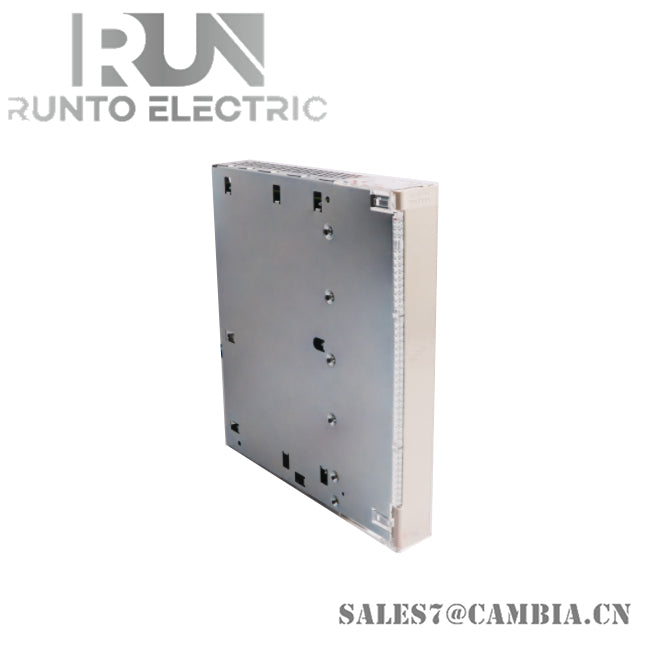

ABB AI625 3BHT300036R1 Analog Input Module

General Information

• Product ID: 3BHT300036R1
• ABB Type Designation: AI625
• Product Type: I/O Module
• Catalog Description: AI625 Analog Input, 16 channels, 12-bit, 4–20 mA
• Long Description: AI625 analog input module with 16 channels, 12-bit resolution, designed for 4–20 mA signal acquisition
• Medium Description: AI625 Analog Input 16Ch 12 Bit, 4–20 mA

Technical Details

• Channel Type: Analog Input (AI)
• Number of Input Channels: 16
• Resolution: 12 bits
• Signal Range: 0–20 mA
• Isolation: Galvanic isolation (all channels grouped)
• Common Mode Voltage (CMV): 50 V
• Common Mode Rejection Ratio (CMRR): > 100 dB
• Shunt Resistance: 100 Ω
• System Compatibility: S600 I/O, ABB Advant Master Process Control System

Environmental Compliance

• RoHS Directive: Exempt from EU Directive 2011/65/EU under Article 2(4)(c), (e), (f), and (j)
• WEEE Category: Category 5 – Small Equipment (no external dimension > 50 cm)
• Number of Batteries: 0
• SCIP Reference: f252bedf-684b-4413-987d-ce8381a68754 (Sweden)

Mechanical Dimensions

• Net Width: 40 mm
• Net Height: 273 mm
• Net Depth / Length: 252 mm
• Net Weight: 1.225 kg
