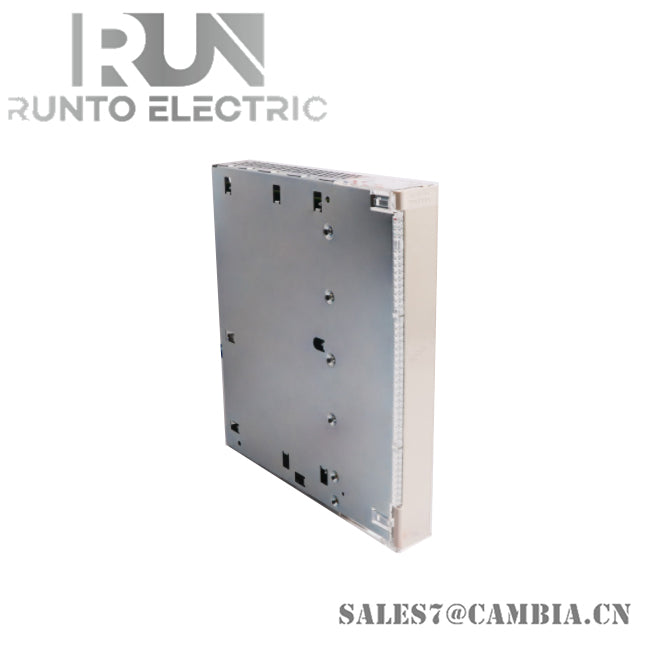

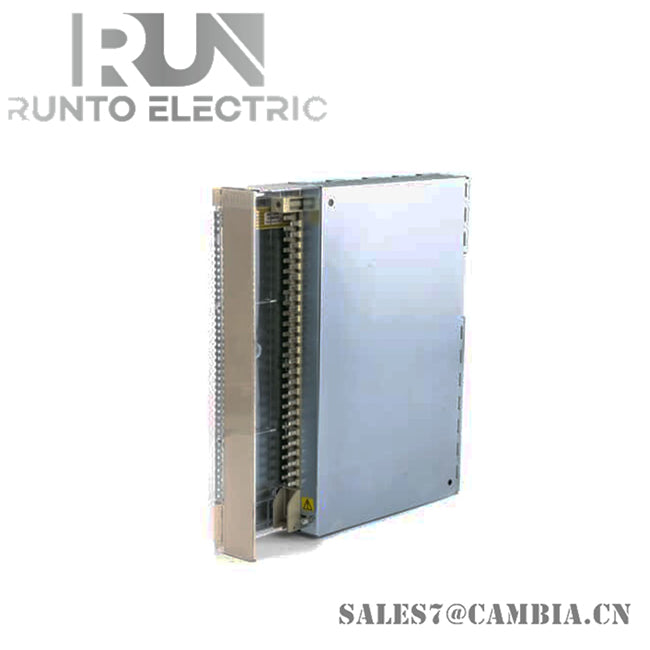

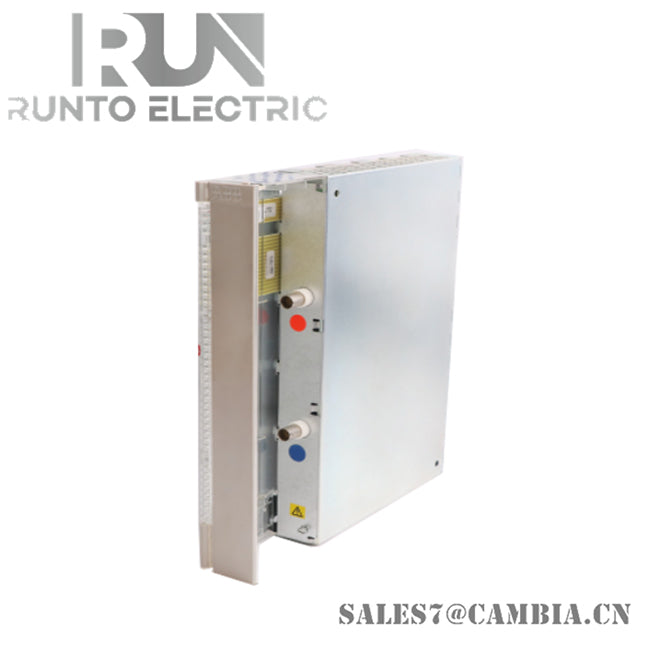

ABB AO610 3BHT300008R1 Analog Output Module

Product Overview

• Product ID: 3BHT300008R1
• ABB Type Designation: AO610
• Product Type: I/O Module
• Catalog Description: AO610 Analog Output, 16 Channels, 12-bit
• Medium Description: AO610 Analog Output 16Ch, 12Bit, 0–20 mA / 0–10 V
• Product Series: S600 I/O

Technical Specifications

• Channel Type: Analog Output (AO)
• Number of Output Channels: 16
• Signal Range: 0–20 mA, 0–10 V
• Resolution: 12-bit
• Isolation: Opto-isolated as a single group

Environmental & Compliance

• RoHS Status:
  Exempted from the scope of Directive 2011/65/EU (RoHS) under Article 2(4)(c), (e), (f), and (j)
  (Ref.: 3BSE088609 – EU Declaration of Conformity – ABB Advant Master Process Control System)
• WEEE Category: 5 (Small Equipment – No external dimension over 50 cm)
• Number of Batteries: 0
• SCIP Reference (Sweden): 297074c1-0b18-437c-af83-6299c9f9dbf3

Mechanical Dimensions

• Depth / Length: 252 mm
• Height: 273 mm
• Width: 40 mm
• Net Weight: 1.25 kg
