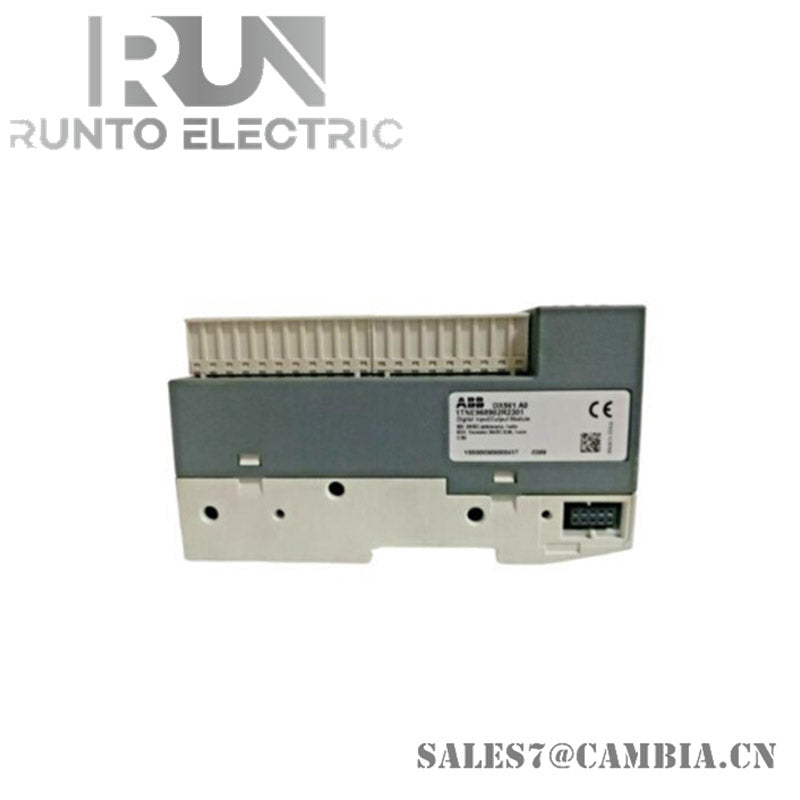

ABB AX561 1TNE968902R1301 Analog Input/Output module

General Information

• Extended Product Type: AX561

• Product ID: 1TNE968902R1301

• ABB Type Designation: AX561

• Catalog Description: Analog input/output module. 4 AI: U, I. 2 AO: U, I (AX561)

• Long Description: AX561: S500 Analog input/output module. 4 AI: U, I. 2 AO: U, I. 1-wire.

Dimensions

• Product Net Weight: 0.122 kg
• Product Net Depth / Length: 135 mm
• Product Net Height: 74 mm
• Product Net Width: 34 mm
• Gross Weight: 0.225 kg
• Package Level 1 Depth / Length: 93 mm
• Package Level 1 Height: 63 mm
• Package Level 1 Width: 170 mm
• Package Level 1 Units: 1 carton

Technical Specifications

• Function: 4 AI: U, I. 2 AO: U, I
• Number of Analog Configurable I/Os: 0
• Analog Inputs: 4
• Input Signal: U, I
• Analog Outputs: 2
• Output Signal: U, I
• Resolution:
  • Analog Input: 12 bit
  • Analog Output: 12 bit
• Connection Type: Pluggable
• Degree of Protection: Housing IP20
• Ambient Air Temperature:
  • Operation: 0 ... +60 °C
  • Storage: -40 ... +70 °C

Additional Information

• Product Main Type: AX561
• Product Name: Distributed Automation I/Os

Classifications

• eClass: 27-24-22-02
• ETIM 8: EC001420 - PLC analogue I/O-module
• UNSPSC: 32151705
