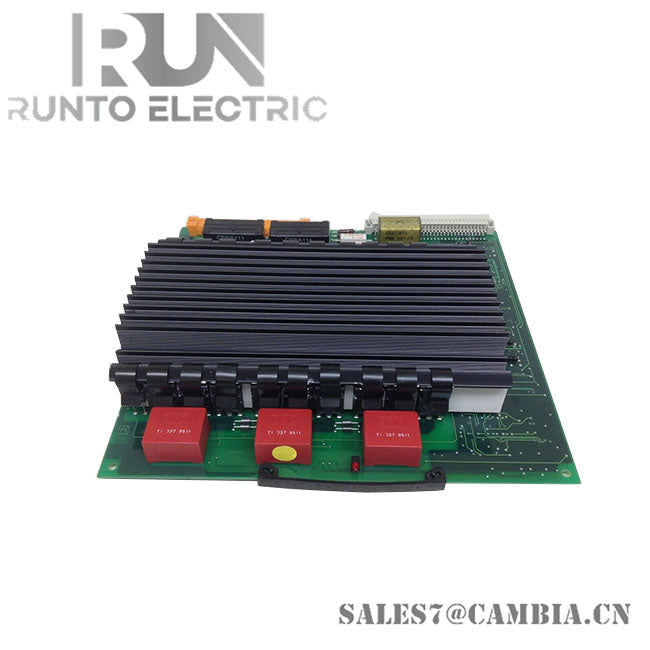

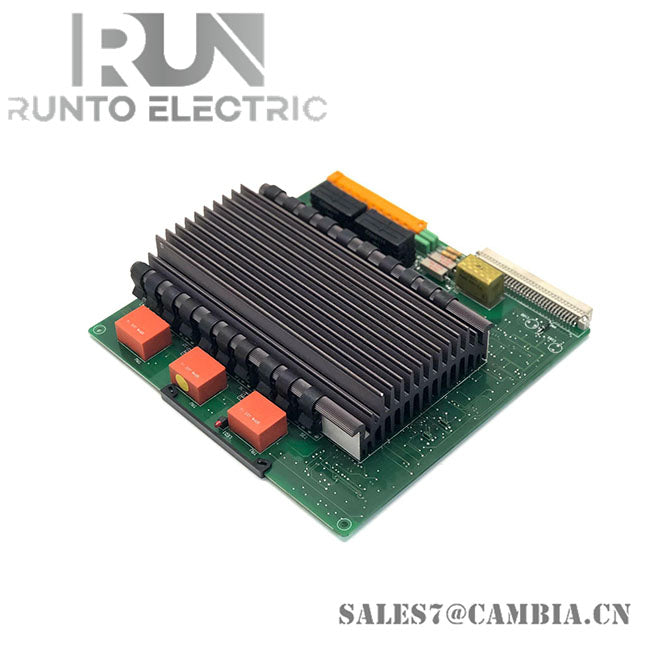

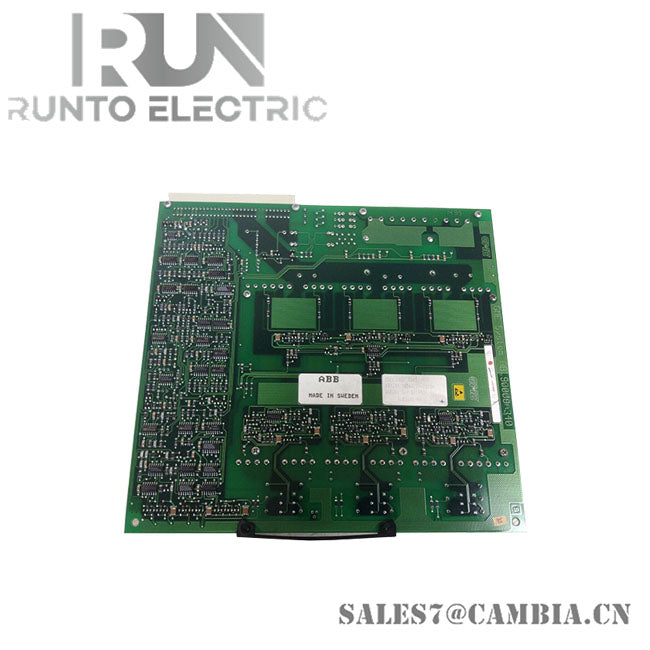

ABB Axis Computer Board DSQC503A 3HAC18159-1

Runto Electronic Automation Limited

Product Number

DSQC503A 3HAC18159-1

DSQC503A 3HAC18159-1
Axis Computer Board

ABB Axis Computer Board DSQC503A 3HAC18159-1 is a computer board produced by ABB Group for controlling and monitoring robot systems. The following is an introduction to the general functions, working principles, and technical parameters of the board:
Function:
-Control and monitoring robot system
-Processing and executing motion commands
-Support communication interfaces for data exchange with other devices
-Provide status monitoring and fault diagnosis functions for robot systems
Working principle:
-DSQC503A controls the motion of the robot by communicating with other robot control components (such as drivers, sensors, etc.), receiving and sending commands and data.
-It executes motion instructions based on pre-defined programs and algorithms to achieve precise positioning, path planning, and motion control of the robot.
Technical parameters (may vary depending on model and configuration):
-Input voltage: usually 24V DC
-Maximum output current: depending on application requirements
-Supported communication interfaces: such as Ethernet, serial interface, etc
-Processor type and speed: depending on specific model and configuration
-Storage capacity: RAM and ROM capacity, used to store programs and data
-Supported operating systems: usually real-time operating systems (RTOS)
-Operating temperature range: depending on specific model and configuration
