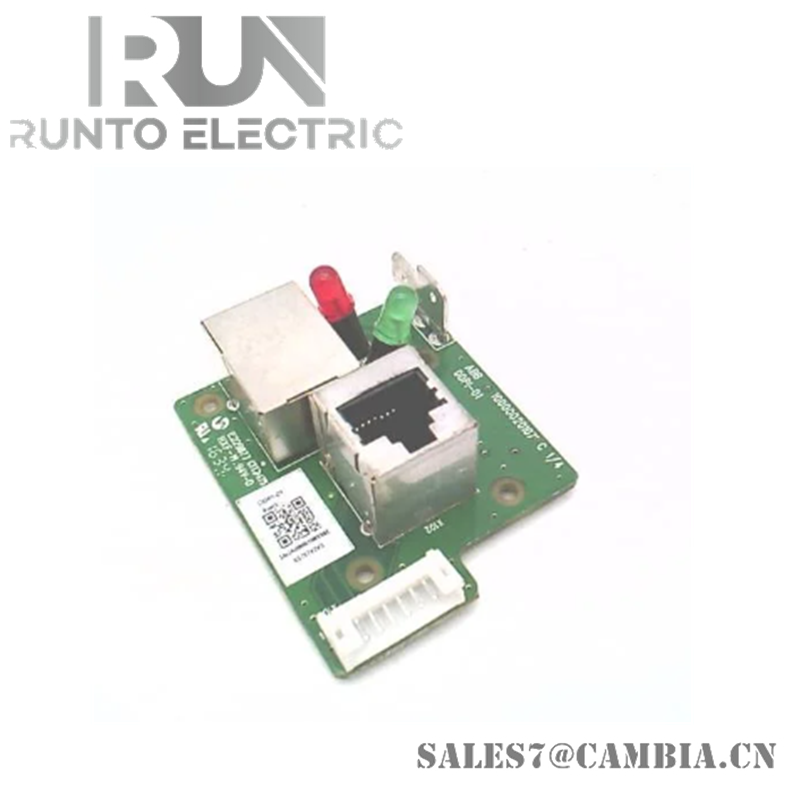

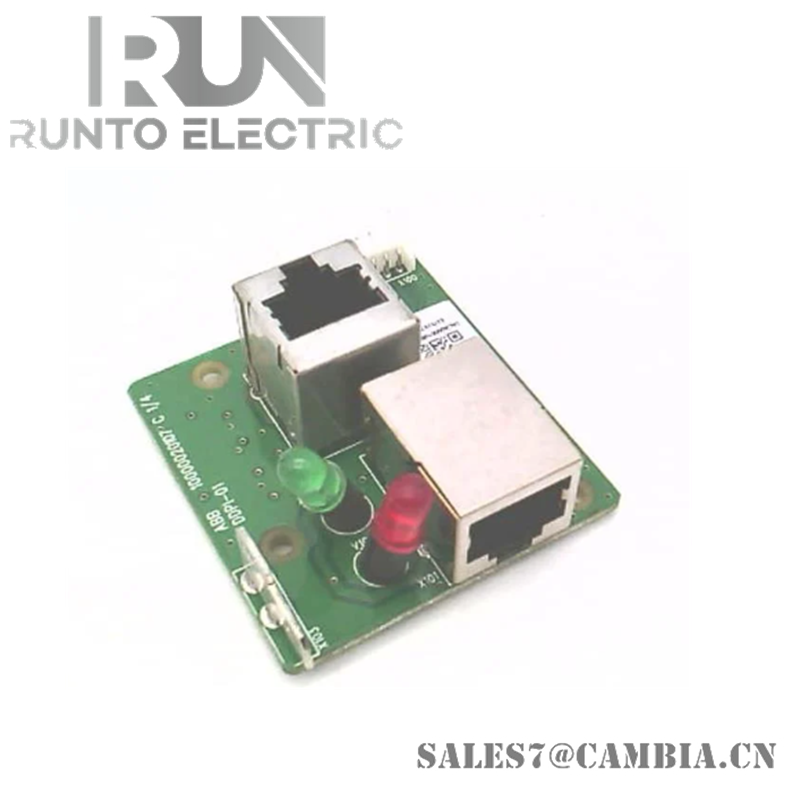

ABB DDPI-01 Pulse Encoder Interface Module

Description

The ABB DDPI-01 is a pulse encoder interface module designed for use with ABB drive systems, particularly in motion control applications requiring precise speed and position feedback. It enables the connection of incremental encoders to ABB drives, translating pulse signals into usable control data for closed-loop regulation.

Specifications

• Model: DDPI-01
• Function: Pulse encoder interface for incremental encoders
• Supported Encoder Types:
  • TTL (5V)
  • HTL (10–30V)
• Input Channels: A, B, and Z (quadrature and zero pulse)
• Maximum Frequency: Up to 200 kHz
• Power Supply: 24V DC (from drive or external source)
• Isolation: Galvanic isolation between encoder and drive electronics
• Mounting: Plug-in module for ABB drive control boards
• Compatibility: ACS800, ACS880, and other ABB industrial drives
• Operating Temperature: –10°C to +55°C
