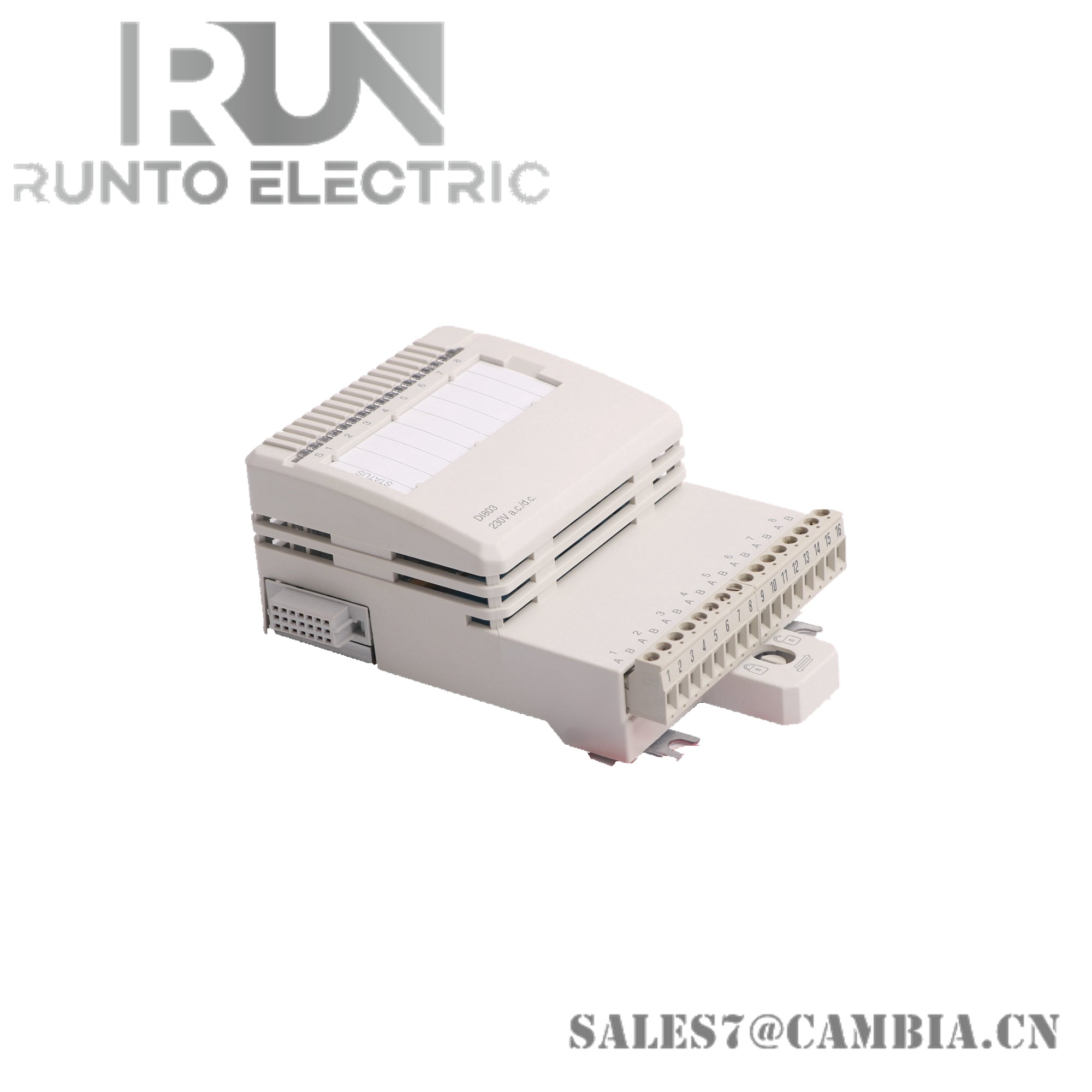

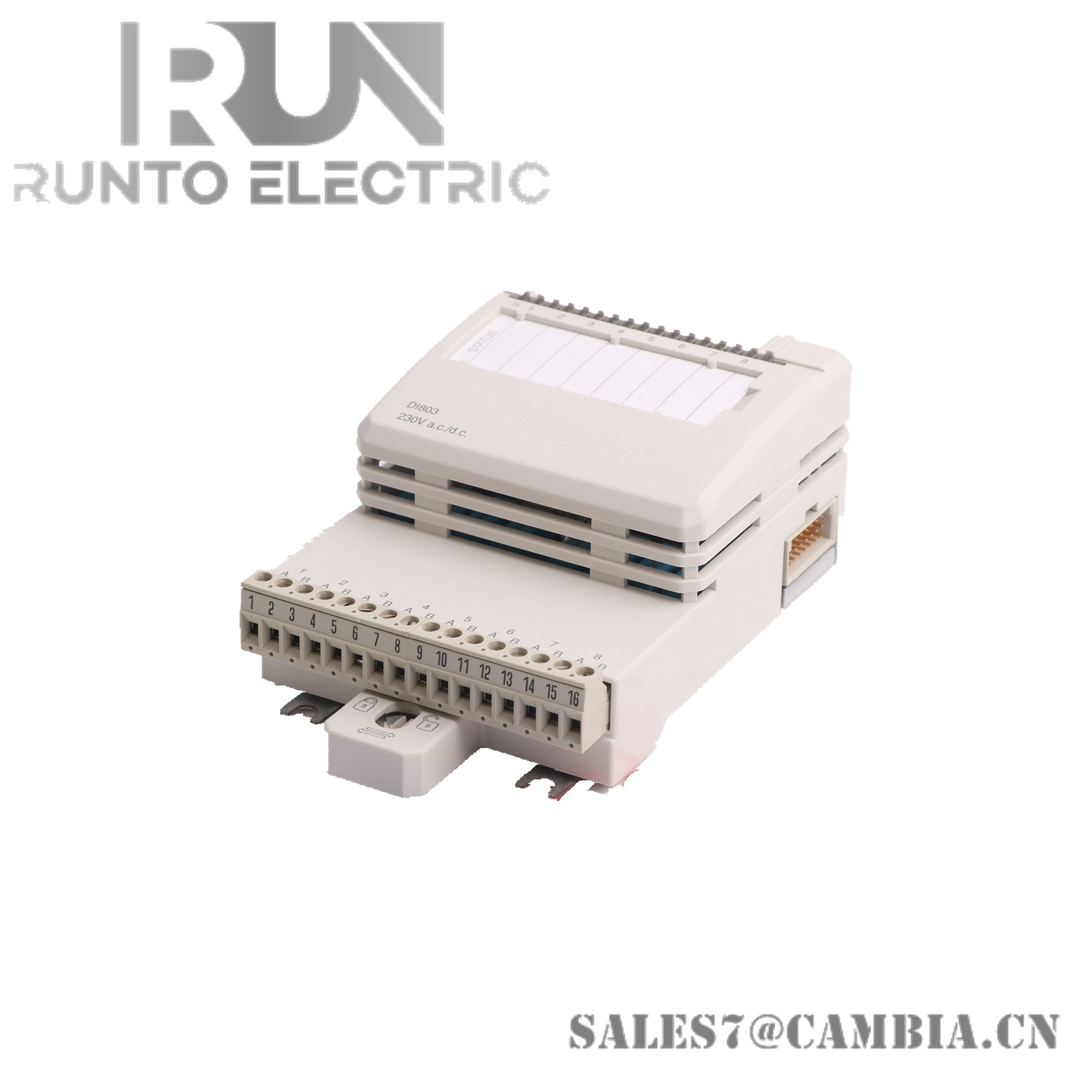

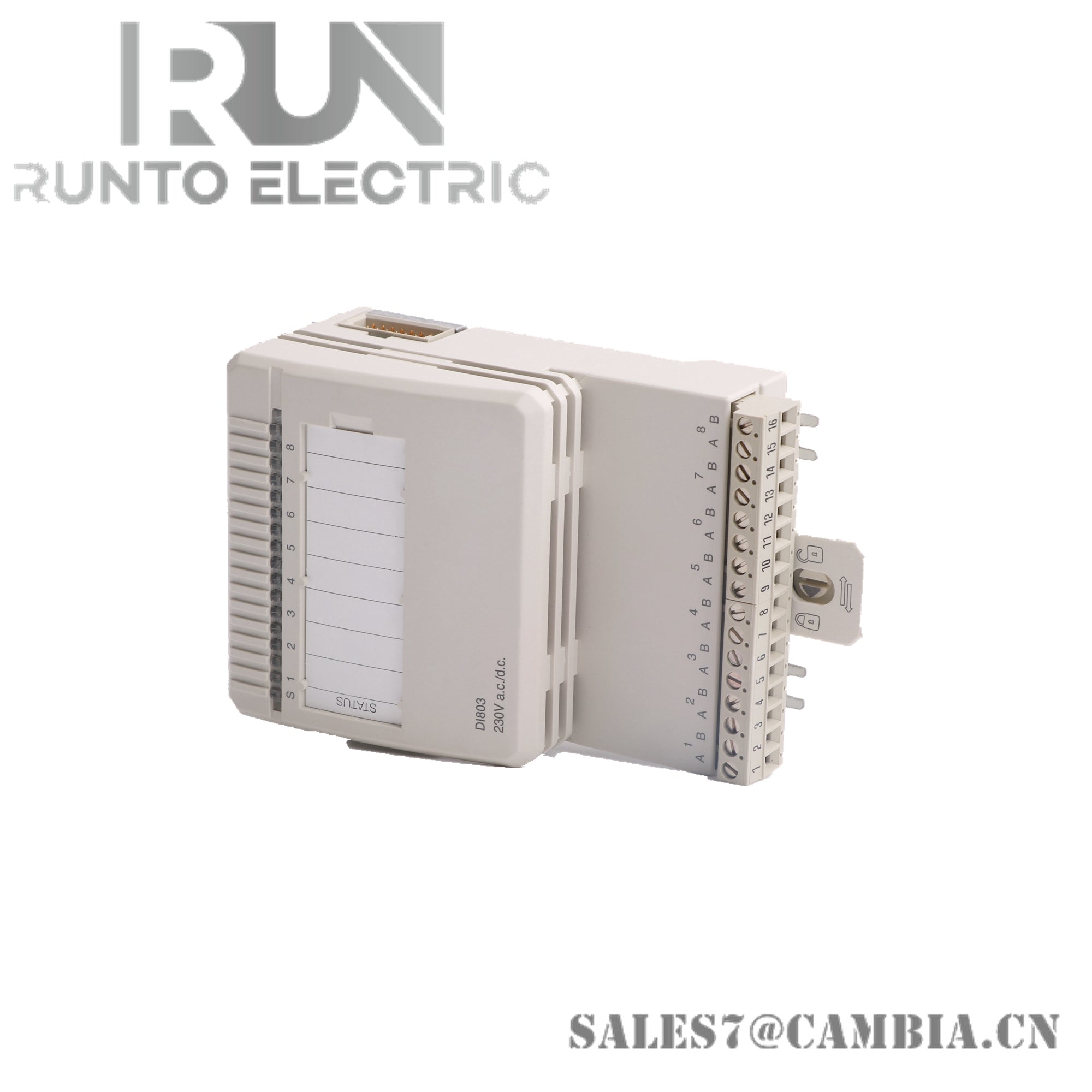

ABB DI581-S 1SAP284000R0001 Digital Input Module

General Information

• Extended Product Type: DI581-S

• Product ID: 1SAP284000R0001

• ABB Type Designation: DI581-S

• EAN: 4016779681797

Technical Specifications

• Function:

  • Safety digital input module

  • 16 SDI (Standard Digital Inputs)

  • 16 SDI SIL2 or 8 SDI SIL3

  • 24 VDC, 1-wire, 8 pulse output

• Input Voltage Type: DC

• Input Voltage Range: 0 … 30 V

• Input Current: 7 mA

• Delay Time (τ): 1 – 500 ms

• Number of Digital Inputs: 16

• Number of Configurable I/Os: 0

• Degree of Protection: IP20

• Safety Integrity Level (SIL): 2

Dimensions & Weight

• Net Dimensions (L x W x H):62 mm × 67.5 mm × 76 mm

• Product Net Weight: 0.122 kg

• Gross Weight: 0.151 kg

• Packaging Dimensions (L x W x H):84 mm × 71 mm × 72 mm

• Package Level 1 Units: 1 carton

Compliance & Environmental

• RoHS Status: Compliant with EU Directive 2011/65/EU

• REACH Status: Contains substances > 0.1% mass (REACH Declaration Date: 2024-12-06)

• SCIP ID: 34c5ffa9-2ff5-4778-8ac9-e57fb41dd664 (Germany)

• WEEE Classification:

  • Category: 5. Small Equipment

  • B2B (Business to Business)
