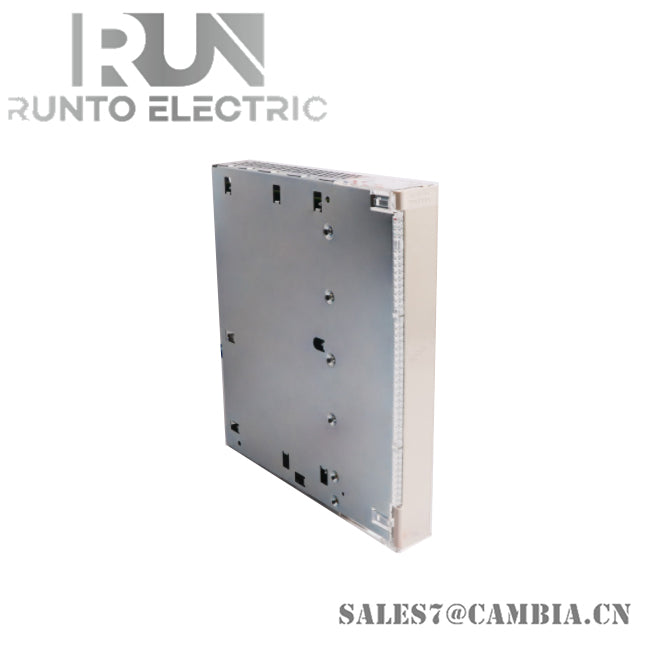

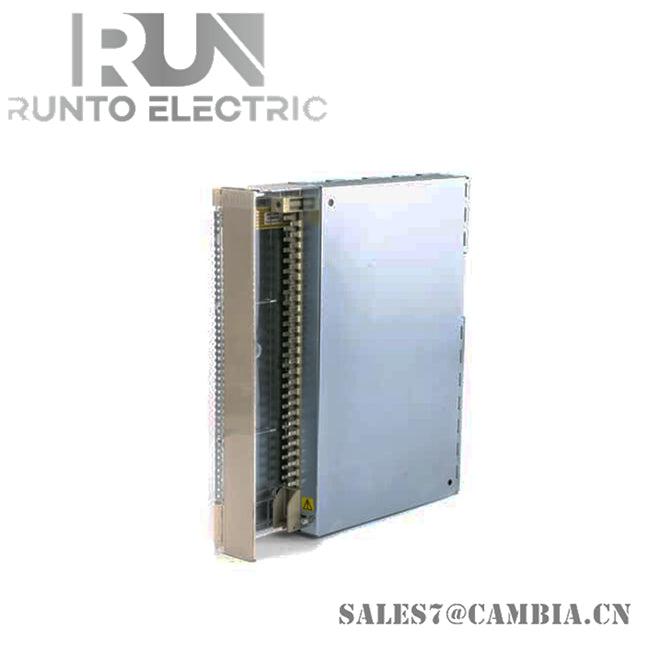

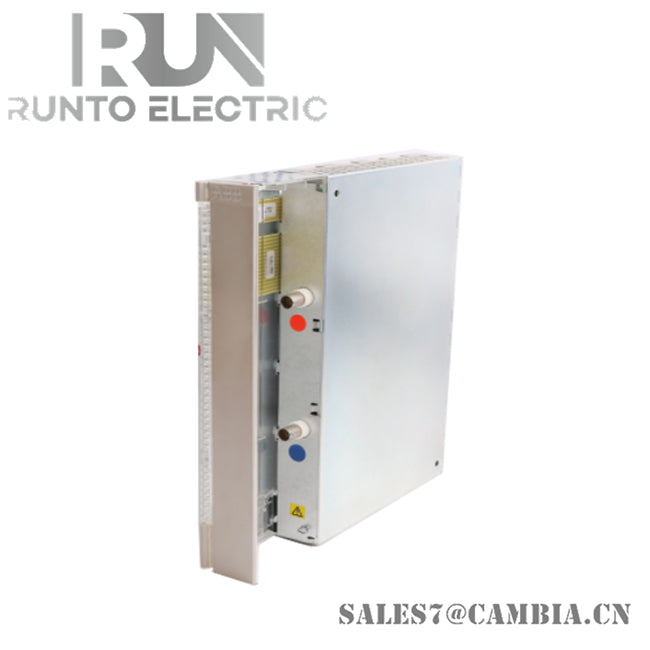

ABB DI650 3BHT300025R1 Digital Input Module

General Information

• Product ID: 3BHT300025R1
• ABB Type Designation: DI650
• Product Type: I/O Module
• Catalog Description: DI650 Digital Input, 32 channels, 24 VDC isolated
• Long Description: DI650 digital input module with 32 opto-isolated channels, grouped into 4 sets, designed for 24 VDC signal acquisition
• Medium Description: DI650 Digital Input 32Ch 24VDC Isolated 4 Groups

Technical Details

• Channel Type: Digital Input (DI)
• Number of Input Channels: 32
• Voltage Rating: 24 V DC
• Isolation: Opto-isolated, organized into 4 groups
• Functional Capabilities:
  • Sequence of event recording
  • Pulse catching
• System Compatibility: S600 I/O, ABB Advant Master Process Control System

Environmental Compliance

• RoHS Directive: Exempt from EU Directive 2011/65/EU under Article 2(4)(c), (e), (f), and (j)
• WEEE Category: Category 5 – Small Equipment (no external dimension > 50 cm)
• Number of Batteries: 0
• SCIP Reference: 98f71744-3889-41a1-9ea8-f121412e8b9c (Sweden)

Mechanical Dimensions

• Net Width: 40 mm
• Net Height: 273 mm
• Net Depth / Length: 252 mm
• Net Weight: 1.225 kg
