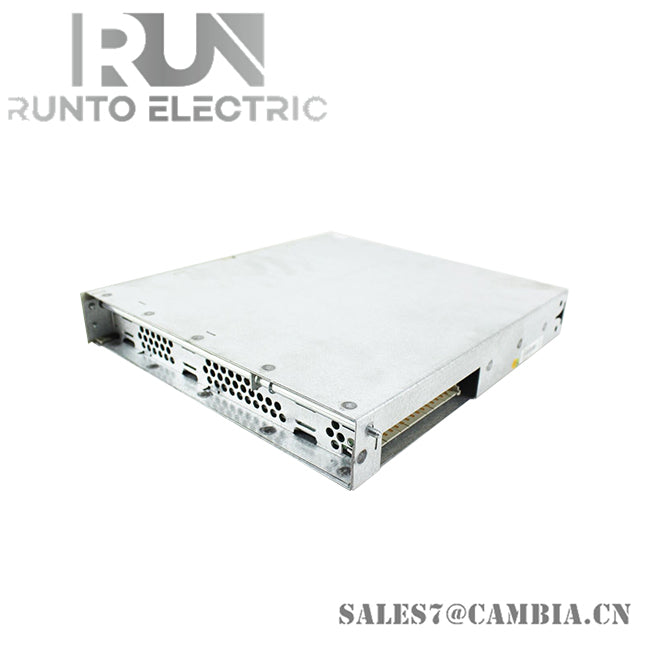

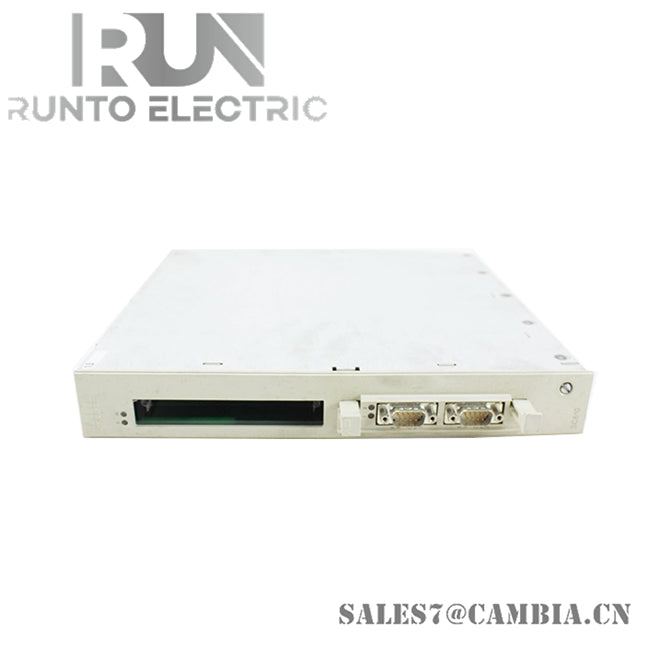

ABB DI651 3BHT300026R1 Digital Input Module

Product Overview

• Product ID: 3BHT300026R1
• ABB Type Designation: DI651
• Product Type: I/O Module
• Catalog Description: DI651 Digital Input, 32 Channels, 48 VDC Isolated
• Medium Description: DI651 Digital Input 32Ch
• Product Series: S600 I/O

Technical Specifications

• Channel Type: Digital Input (DI)
• Number of Input Channels: 32
• Input Voltage: 48 VDC
• Input Isolation: Opto-isolated in 4 groups
• Functionality:
  • Sequence of event (SOE) recording
  • Pulse catching capability

Environmental & Compliance

• RoHS Status:
  Exempted from the scope of Directive 2011/65/EU (RoHS) under Article 2(4)(c), (e), (f), and (j)
  (Ref.: 3BSE088609 – EU Declaration of Conformity – ABB Advant Master PCS)
• WEEE Category: 5 (Small Equipment – No external dimension over 50 cm)
• Number of Batteries: 0
• SCIP Reference: 39f63d9d-deb1-41a1-bd2c-53fd9655a48a (Sweden)

Mechanical Dimensions

• Depth / Length: 252 mm
• Height: 273 mm
• Width: 40 mm
• Net Weight: 1.23 kg
