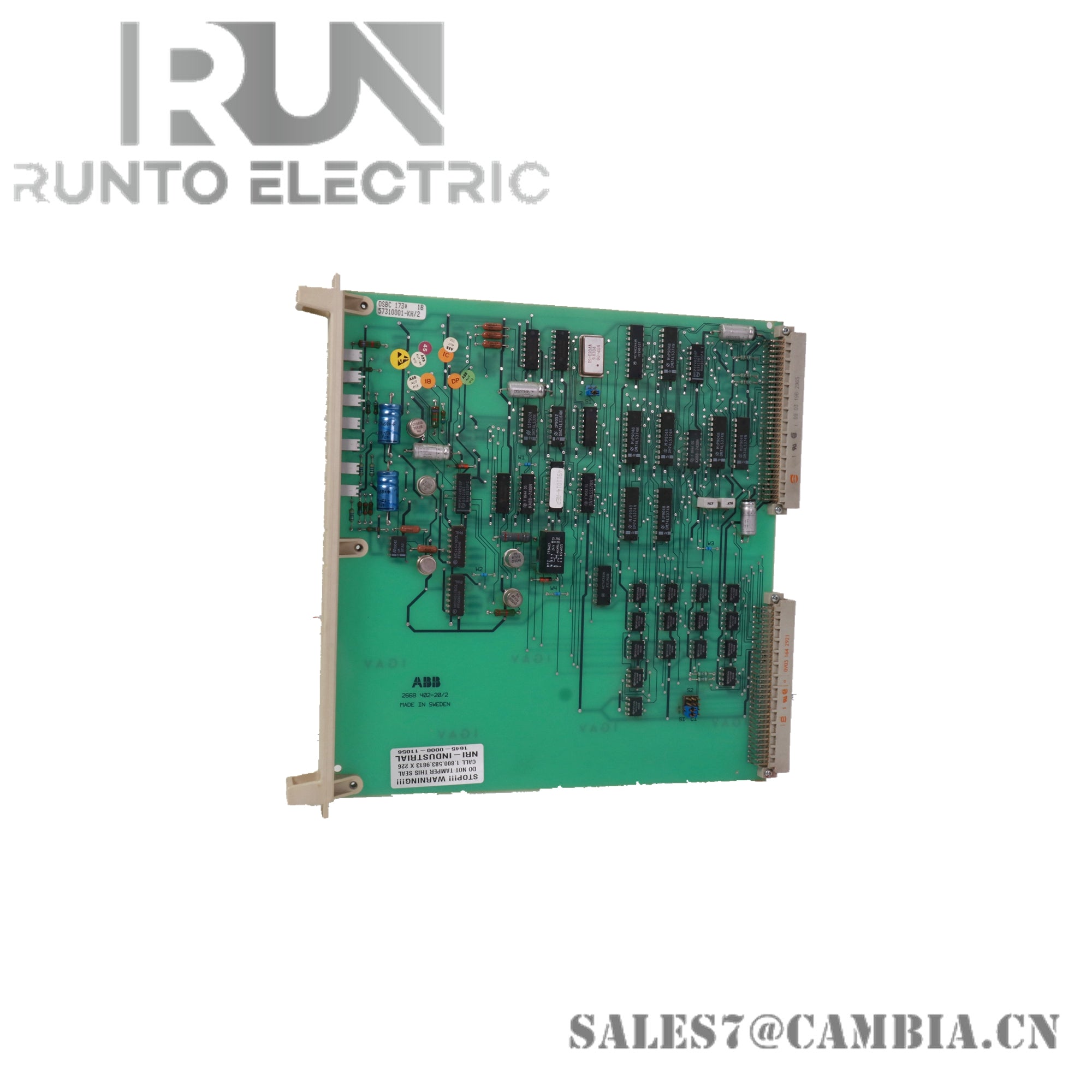

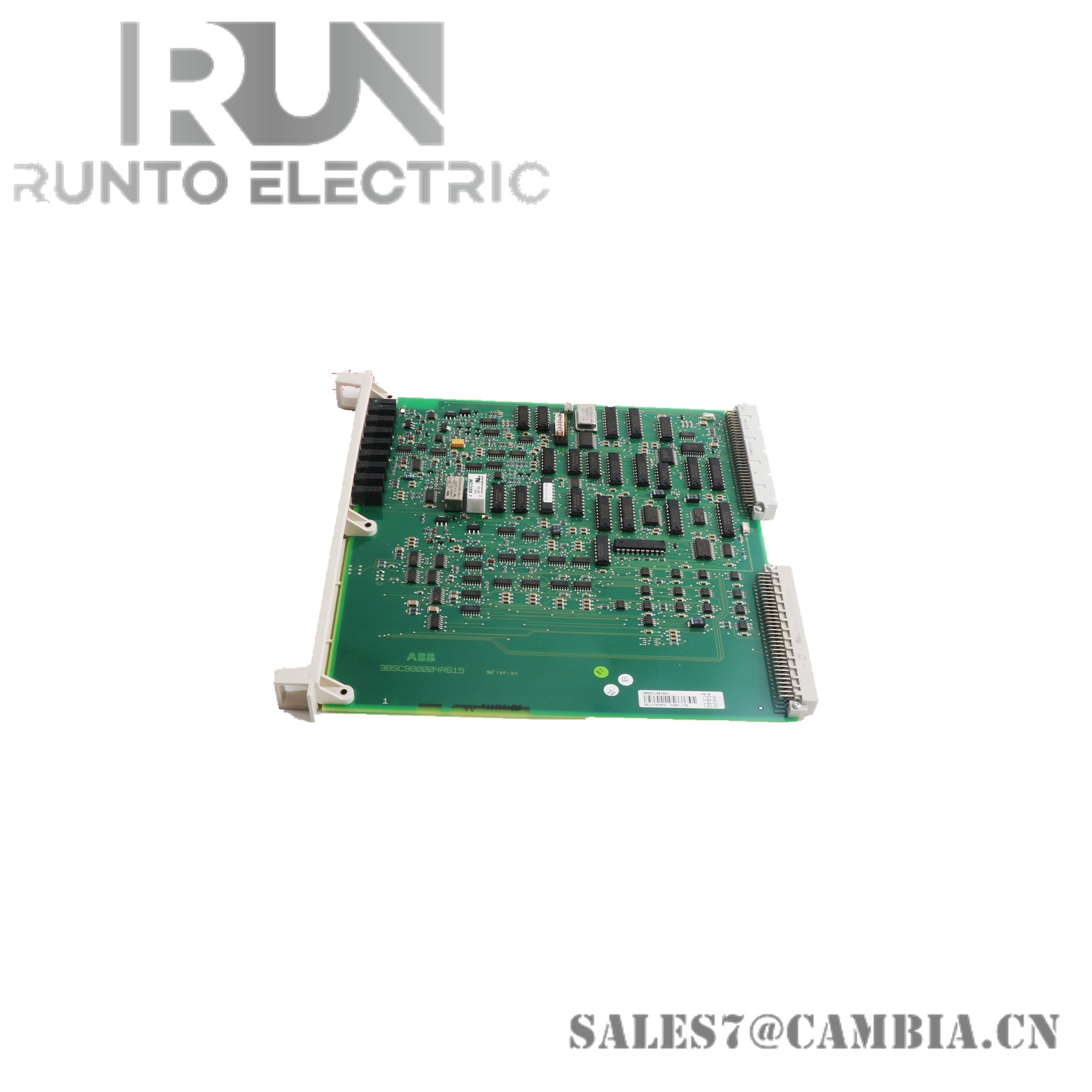

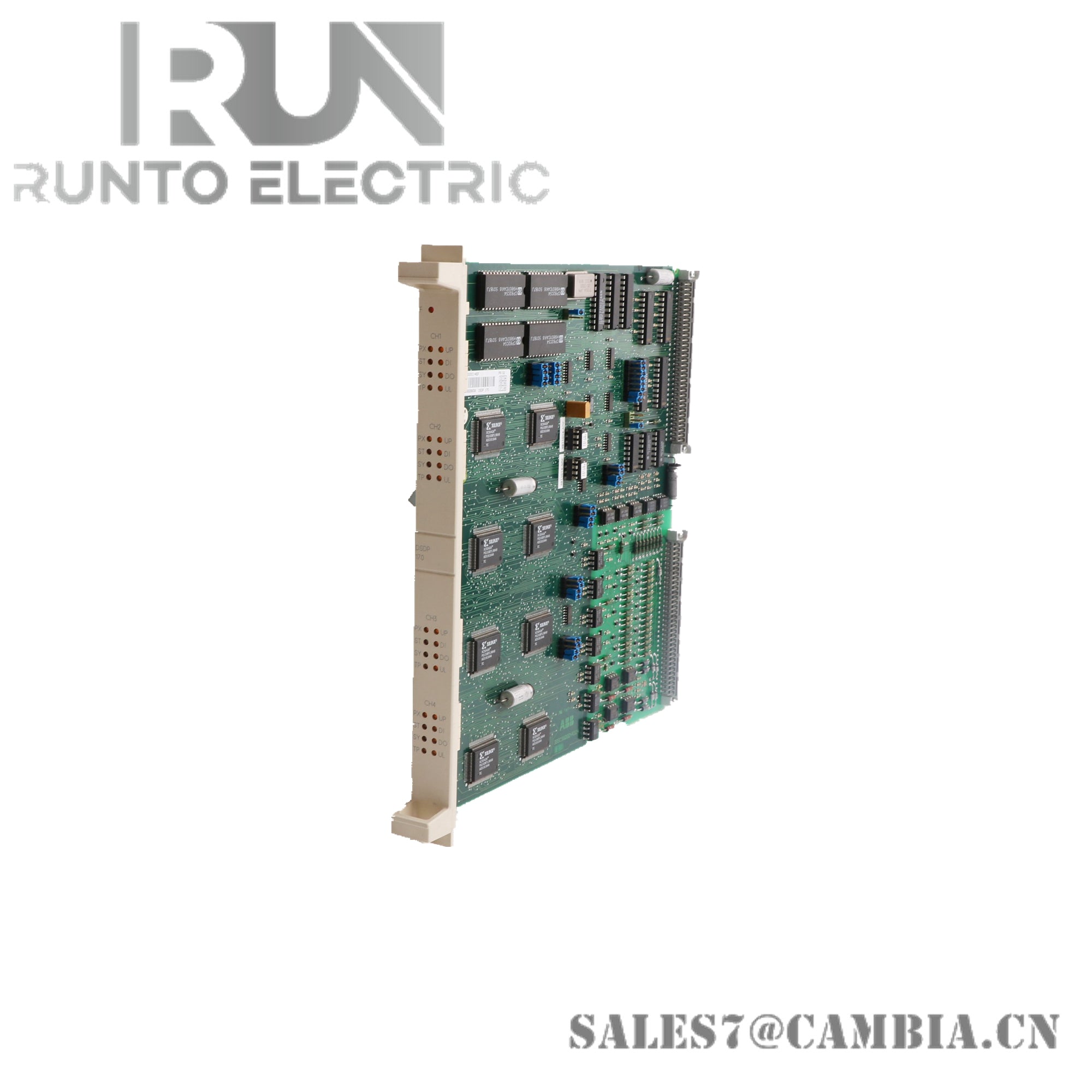

ABB DSPAD/32/376 Digital Signal Processor

Overview

The ABB DSPAD/32/376 is a high-performance digital signal processing module primarily used in advanced industrial automation and control systems. It provides precise and reliable signal processing capabilities, which are crucial for complex automation tasks.

Key Functions and Features

• Stable Differential Protection: Primarily used for detecting internal faults in transformers and generators, capable of quickly and accurately identifying and clearing faults.
• High-Performance Digital Signal Processor: Utilizes a 32-bit digital signal processor with powerful computational abilities, capable of handling complex signal processing algorithms.
• High Reliability: Designed for industrial environments, it offers high reliability and stable operation even under harsh conditions.
• Programmability: Supports multiple programming languages, allowing users to perform custom development and modifications.
• Strong Compatibility: Compatible with ABB’s protection systems, allowing for seamless integration into existing protection setups.

Technical Specifications

• Processor: 32-bit digital signal processor
• Dimensions: 936 x 605 x 596 mm
• Weight: 0.6 kg

Applications

• Power Systems: Transformer differential protection, generator differential protection, etc.
• Industrial Automation: Process control, motion control, etc.
