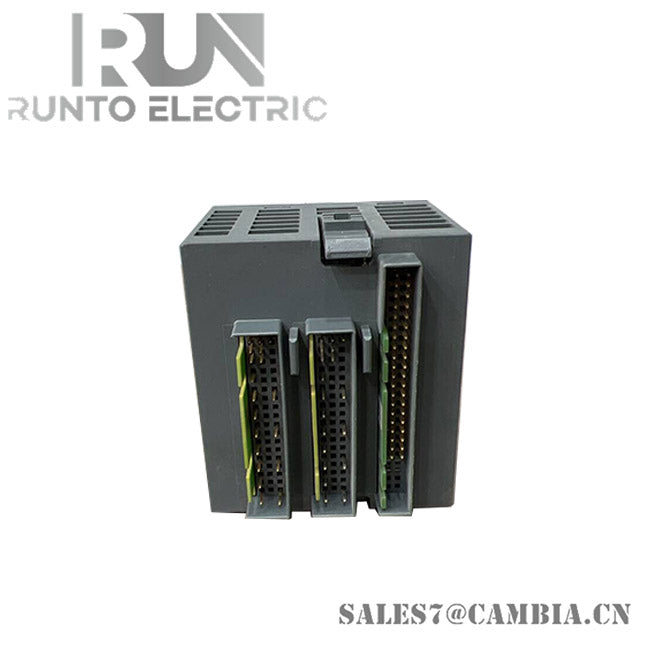

ABB DX531 1SAP245000R0001 Analog Input Module

General Information

• Extended Product Type: DX531
• Product ID: 1SAP245000R0001
• ABB Type Designation: DX531
• EAN: 4016779650960

Dimensions

• Product Net Weight: 0.151 kg
• Product Net Depth / Length: 62 mm
• Product Net Height: 76 mm
• Product Net Width: 67.5 mm
• Gross Weight: 0.175 kg
• Package Level 1 Depth / Length: 84 mm
• Package Level 1 Height: 72 mm
• Package Level 1 Width: 71 mm
• Package Level 1 Units: 1 carton

Technical

• Function: 8 DI: 115..230VAC. 4 DO relay: 230VAC 3A
• Number of Analog Configurable I/Os: 0
• Number of Digital Inputs: 8
• Number of Digital Outputs: 4
• Number of Digital Configurable I/Os: 0
• Input Voltage Type: AC
• Maximum Input Voltage: 0 ... 265 V
• Delay Time (τ): 20 … 20 ms
• Output: Relay
• Output Voltage Type: AC
• Output Voltage (Uout): 24 ... 230 V AC/DC
• Output Current: 3 A
• Output Voltage Maximum: 195.5 … 276 V
• Degree of Protection: IP20
• Supply Voltage: 20.4 … 28.8 V DC
• Ambient Air Temperature:
  • Operation: 0 ... +60 °C
  • Storage: -40 ... +70 °C

Environmental

• SCIP: c9bf362a-cc21-47fa-8a05-4084ee252c86 Germany (DE)
• WEEE B2C / B2B: Business To Business
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
