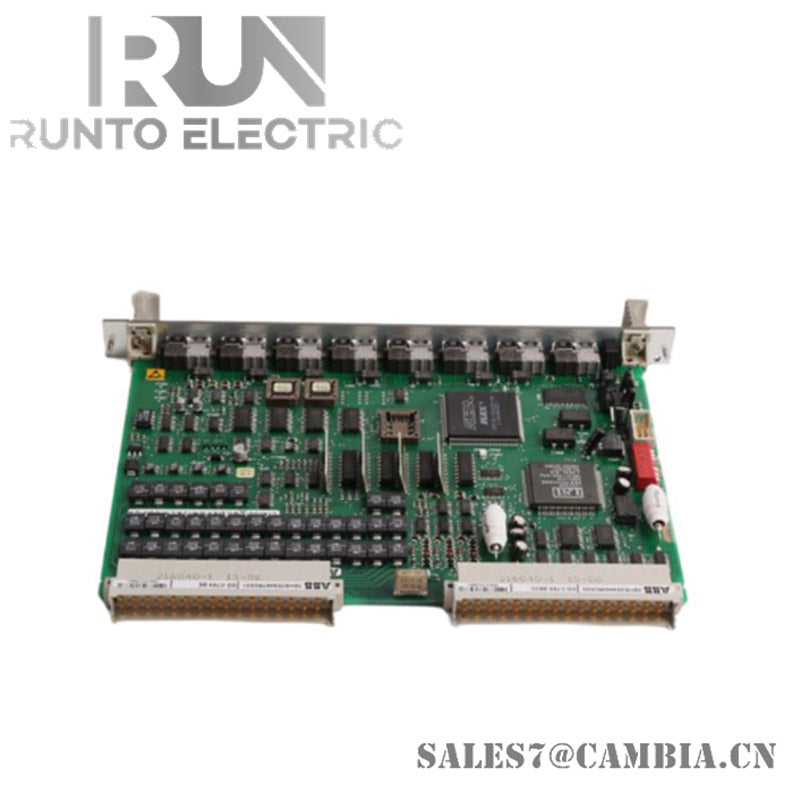

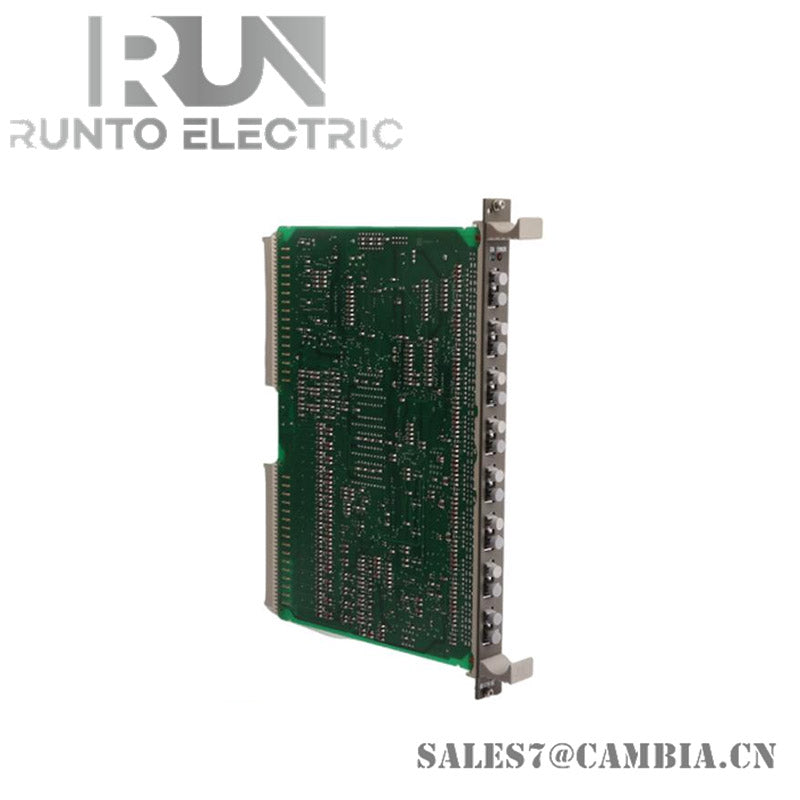

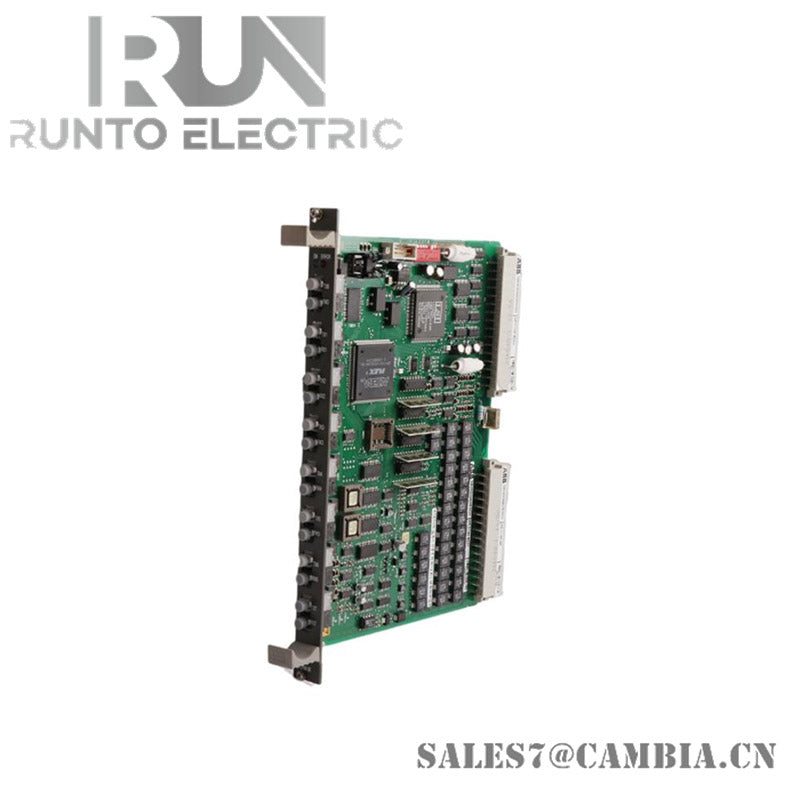

ABB GDC801B101 3BHE051592R0101 Data Network Board

Description

The ABB GDC801B101 is a high-performance data network board designed for industrial automation systems. It serves as a digital controller and communication interface, enabling precise control, real-time data exchange, and system diagnostics across complex manufacturing environments. With advanced signal processing and modular integration, it’s ideal for demanding applications in energy, process control, and factory automation.

Specifications

• Model: GDC801B101
• Part Number: 3BHE051592R0101
• Function: Data network board / digital controller
• Input Voltage: 24 VDC
• Digital I/O: 8 digital inputs, 8 digital outputs
• Detection Voltage Range: ±50 mV
• Measurement Accuracy: ±1% for voltage, current, and charge
• ADC Resolution: 14-bit
• Communication Interface: I²C / SMBus
• Alarm Output: Configurable
• Static Current: <150 μA
• Operating Voltage Range: 3.6V to 60V (battery monitoring applications)
• Operating Temperature: –20°C to +60°C
• Protection Rating: IP20
• Mounting: Factory standard DIN or panel mount
• Weight: Approx. 1 kg

Features

• Hot-Swappable Design: Enables quick replacement without system downtime
• Advanced Monitoring: Measures voltage, current, and temperature with high precision
• Compact Form Factor: Small 8-pin 3mm × 3mm DFN package for space-constrained setups
• VGA Display Integration: Supports visual diagnostics and control feedback
• Multi-Protocol Support: Communicates with PLCs and other field devices via standard bus protocols
• Industrial-Grade Reliability: Built for high stability in harsh environments
• Field-Replaceable: Designed for easy maintenance and long-term serviceability
• Battery Monitoring Capability: Supports multi-cell applications with cumulative charge/discharge tracking
