ABB

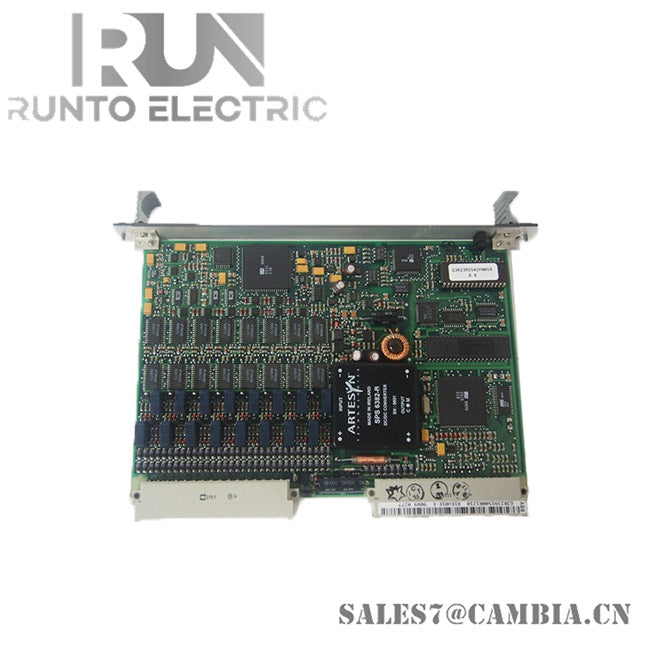

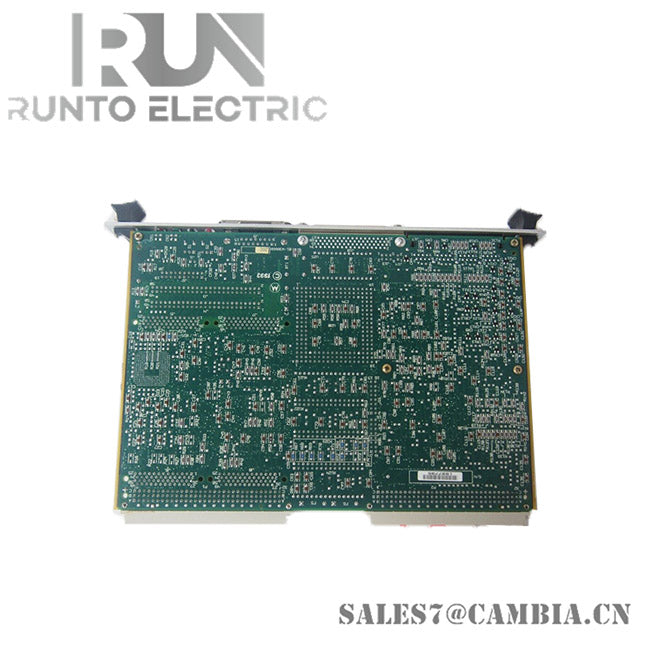

ABB GJR2392700R1210 83SR07 Analog Control Module
SKU: 83SR07
In stock
Description

Description:

The module is used for stored-program analog control of one or two process variables. It is provided with two continuous outputs for output of the correcting variables. The following types of actuators can be controlled: electrohydraulic actuators, electropneumatic actuators, and electric-motor-powered drives. The drives are positioned either locally at the transducer or in case of electric-motor-powered actuators, in a continuously operating power electronics system. It is also possible to supplement the single variable analog controls by a higher-level master control system. The module is intended for use in connection with the process operator station.

Features:

  • The module address is set automatically by plugging the module into the PROCONTROL station.
  • The telegrams received via the bus are checked by the module for error-free transfer by means of their parity bits.
  • The user program is stored in a non-volatile memory (EEPROM). It can be loaded and changed from the PDDS via the bus.
  • The module is ready for operation as soon as a valid user list is loaded.
  • For communication with the process and the switchgear, the module requires the following voltage: USA/USB operating voltage +24 V.

Specifications:

  • Model Type: 83SR072
  • For Analog Control Functions with Continuous Output, 1- and 2-fold
  • Estimated Shipping Size: Dimensions: 0.5" x 10.0" x 8.0" (1.3 cm x 25.4 cm x 20.3 cm)
  • Weight: 0 lbs 13.6 oz (0.4kg)
