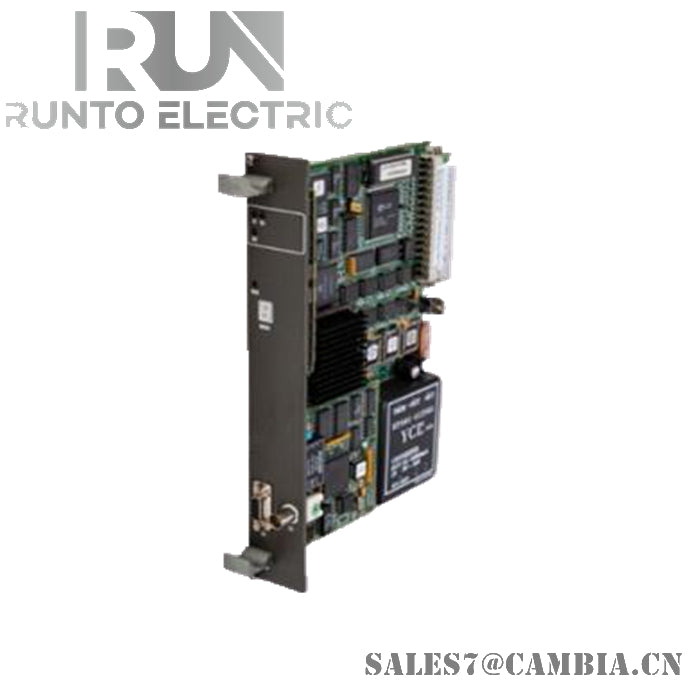

ABB GKWE857800R1214 87TS50 Communicatioins Module

Description:

The 87TS50 module serves as a coupling module for connecting MMI systems, such as the Plant Management System 'PMS', to a PROCONTROL system. Communication between the MMI system and the PROCONTROL system occurs through the CPS software package on the computer side and via the 87TS50 module on the PROCONTROL side. The module is capable of operating in redundant stations.

Features:

• The 87TS50 module can be plugged into any station of the PROCONTROL bus system.
• It utilizes a standard interface with the PROCONTROL station bus.
• Received telegrams are checked by the module for error-free transmission based on their parity bits.
• Through its Ethernet interface, the module can receive or transmit instructions and data, according to the TCP/IP protocol, to or from the CPS.

Specifications:

• The 87TS50 module uses four module addresses on the PROCONTROL station bus and one station address on the Advant Fieldbus 100.
• It can convert up to 6000 listen-in telegrams and up to 256 destination telegrams of the PROCONTROL system into 400 data elements for the Advant Power system.
• Additionally, it can convert up to 6000 data elements of the Advant Power system into 800 send-location telegrams of the PROCONTROL system.
