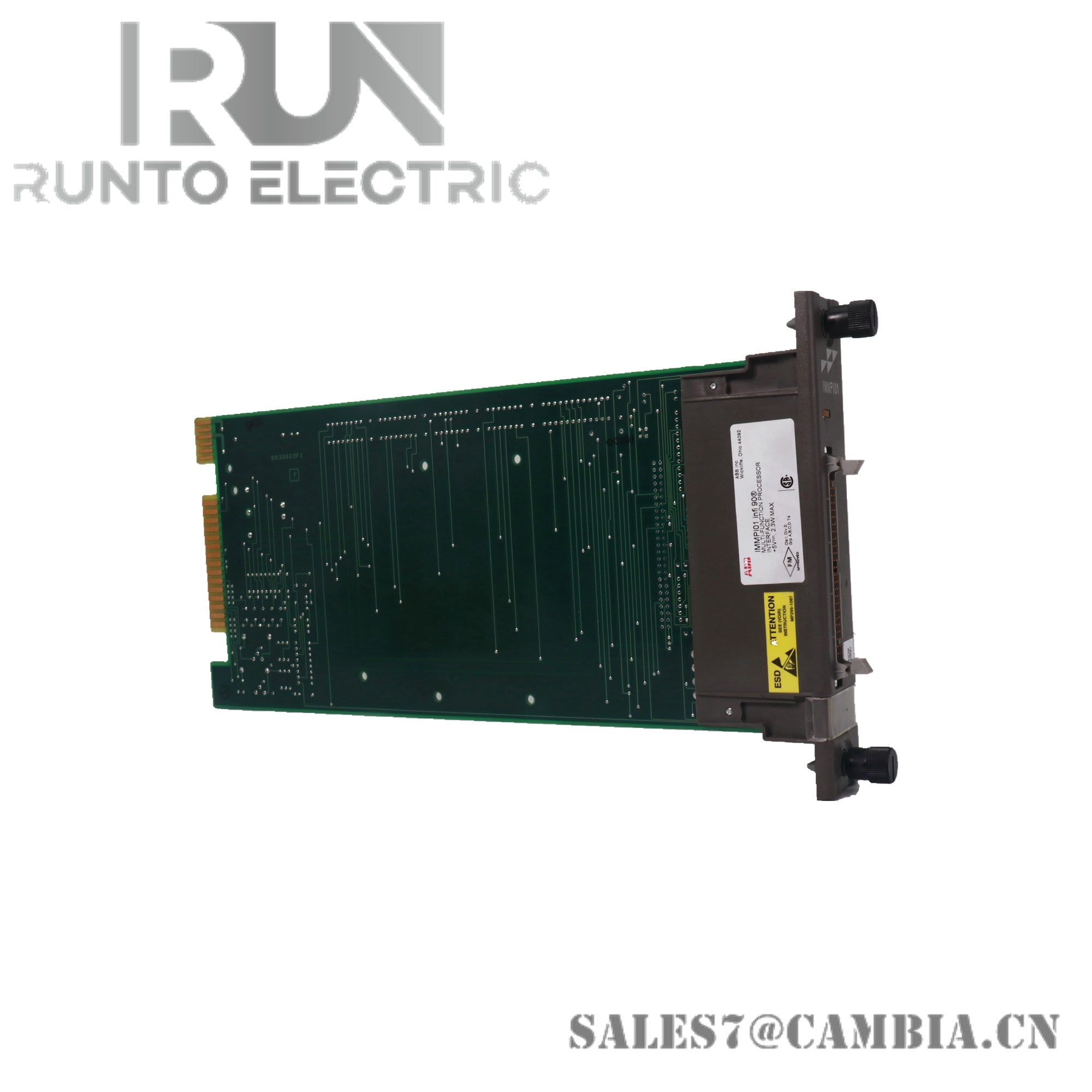

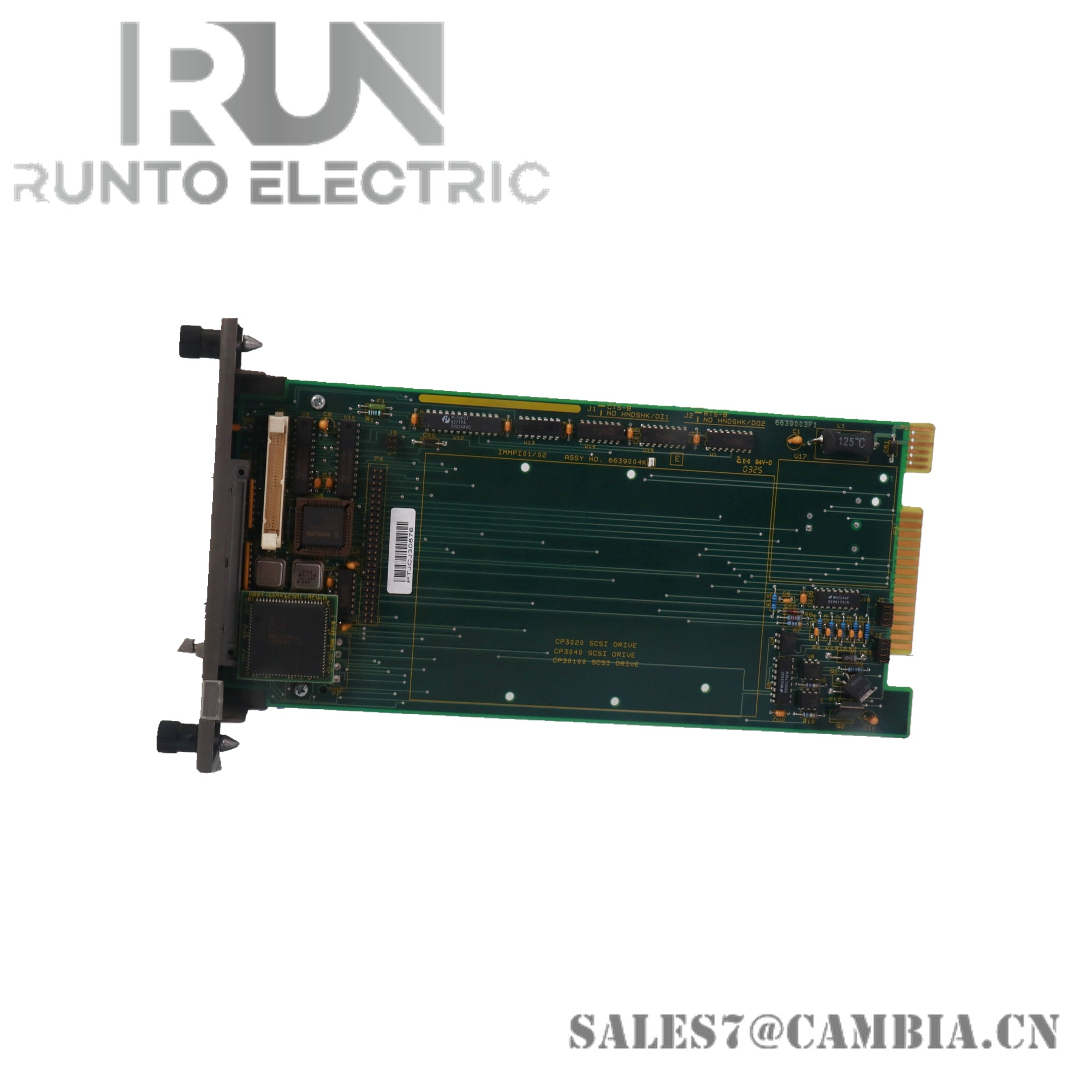

ABB IMMFP02 Multi-Function Processor Module

Description

The ABB IMMFP02 is a Multi-Function Processor Module used in the Bailey Infi 90 Distributed Control System. It serves as a powerful control and data acquisition unit, capable of executing complex process control strategies with high reliability and flexibility.

Specifications

• Processor: 32-bit CPU with 16-bit external bus, operating at 16 MHz
• Memory: 256 kB ROM, 256 kB RAM, 64 kB NVRAM
• Input Voltage: +5 VDC
• Power Dissipation: Maximum 10 W
• Communication Ports: Two RS-232-C ports or one RS-485 and one RS-232-C port
• Mounting: Occupies one slot in a standard INFI 90 OPEN module mounting unit
• Dimensions: 35.56 mm (W) × 177.80 mm (H) × 298.45 mm (L)
• Operating Temperature: 0°C to 70°C
• Humidity Range: 5% to 95% up to 55°C, non-condensing
• Certifications: CSA and FM certified for nonhazardous locations
• Country of Origin: Sweden or United States (varies by supplier)

Features

• Advanced Control Capabilities: Supports analog, sequential, batch, and complex control strategies
• Programmability: Compatible with function codes, C, Basic, Batch 90, Ladder, and user-defined logic
• Redundant Communication: Offers 1 Mbaud serial link for robust system communication
• Flexible Integration: Interfaces with up to 64 modules in any combination
• Peer-to-Peer Communication: Enables distributed control across the Infi 90 network
• Industrial Reliability: Built for continuous operation in demanding environments
• Compact Form Factor: Efficient use of rack space for dense installations
