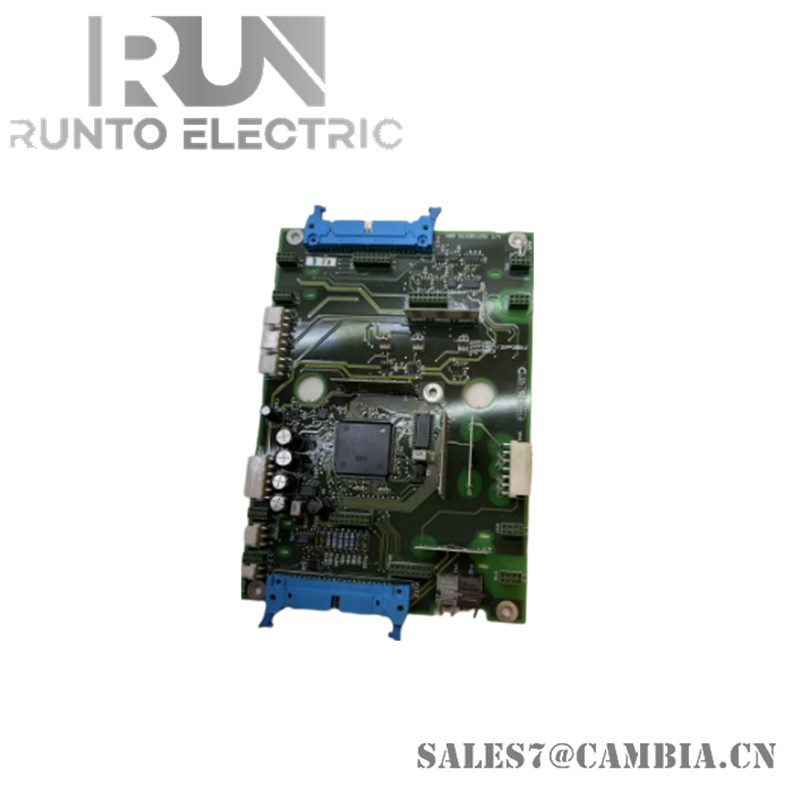

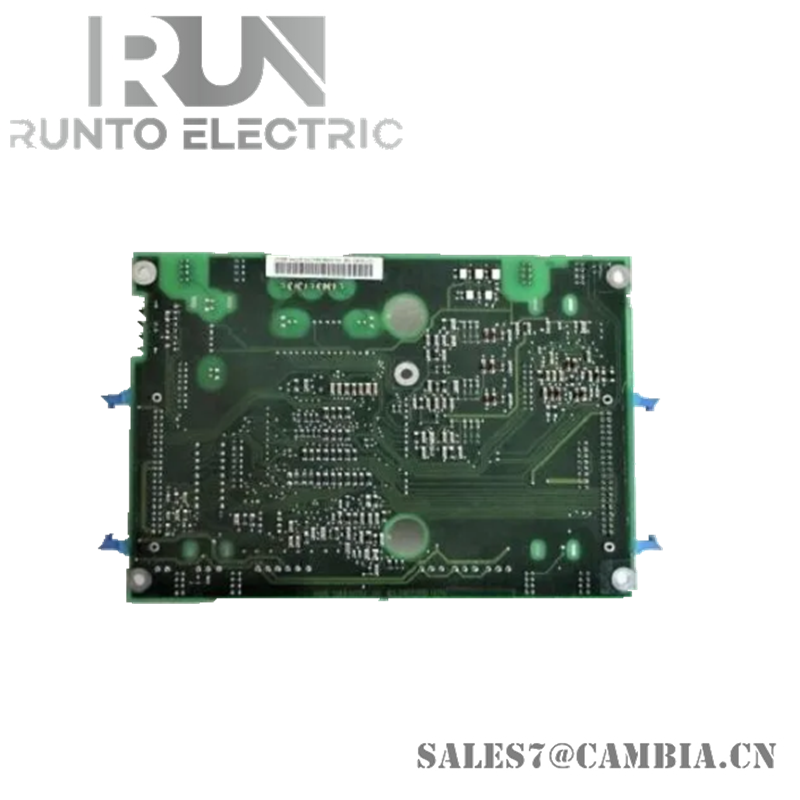

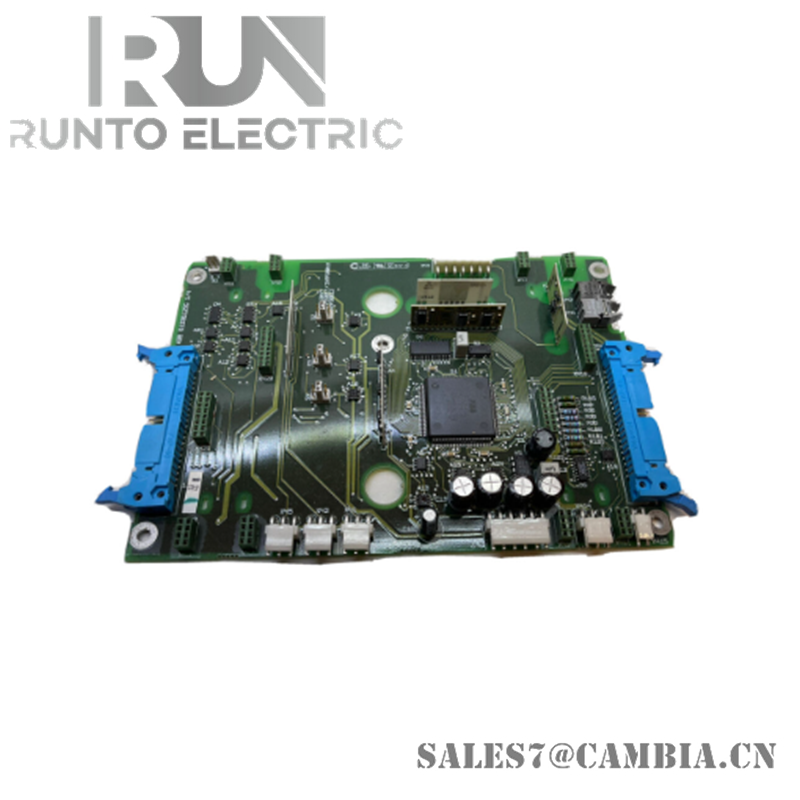

ABB NINT-68C Control Board

Description

The ABB NINT-68C is a robust interface and control module tailored for industrial inverter systems. It ensures precise motor control and reliable signal processing, making it ideal for ABB ACS600 series and other automation platforms.

Specifications

• Supply Voltage: 24VDC ±10%
• Power Consumption: Max 2.5W
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Communication Ports: 2 × RS-485
• Data Rate: Up to 115.2 kbps
• Isolation Voltage: 500VAC
• Dimensions: 110 × 70 × 40 mm (some sources list 257 × 138 × 175 mm)
• Weight: 200g to 300g depending on packaging
• Protection Class: IP20
• MTBF: Industrial-grade reliability

Features

• Dual Communication Support: RS-485 and fiber-optic interfaces for flexible integration
• Motor Control Optimization: Manages power and control signals for precise drive operation
• System Diagnostics: Supports fault detection and performance monitoring
• Industrial Durability: Designed for harsh environments with wide temperature tolerance
• ABB Compatibility: Seamless integration with ACS600 and other ABB inverter systems
• Compact Design: Space-efficient for control cabinets
• Legacy Support: Maintains compatibility with older ABB automation hardware
