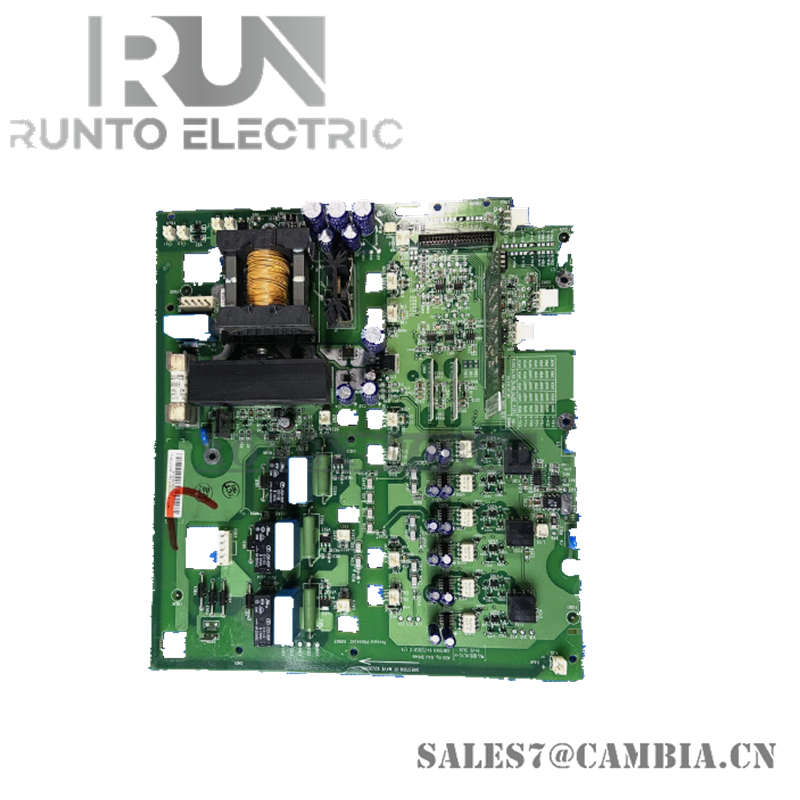

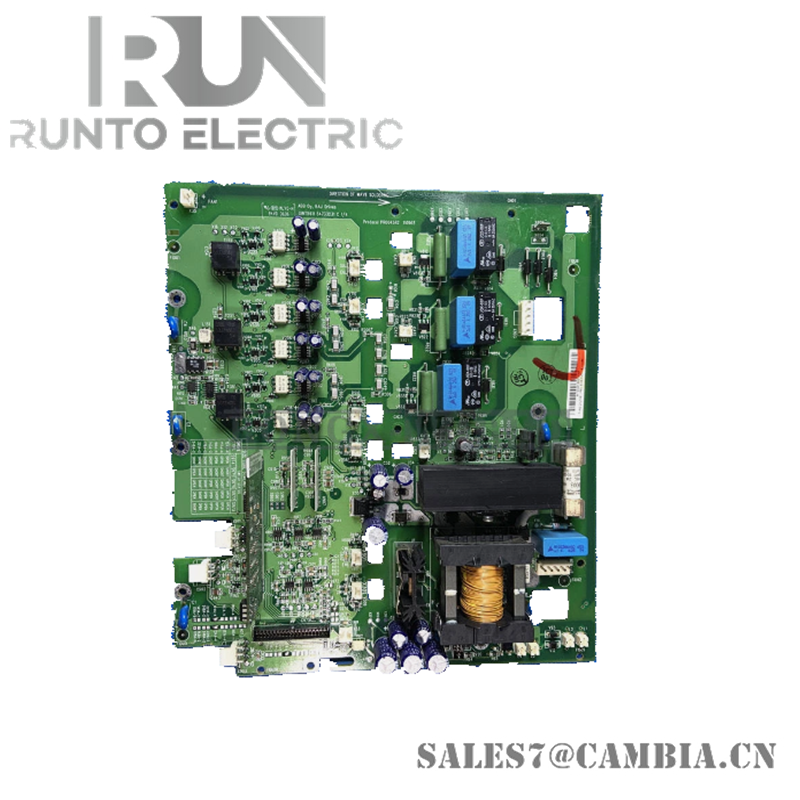

ABB OINT5611 Inverter Driver Board

Description

The ABB OINT5611 is a high-performance inverter driver board engineered for use in ABB DCS500 drive systems. It delivers precise gate-driving signals to IGBT modules, enabling efficient motor control and reliable power conversion. Designed for industrial environments, it supports optional fiber-optic communication and includes robust protection features.

Specifications

• Model: OINT5611
• Application: ABB DCS500 drive systems
• Function: Controls IGBT switching for inverter operation
• Input Voltage: 380V AC (via supported drive system)
• Communication:
  • Optional fiber-optic interface
  • Multimode HCS® fiber (200/230 µm)
  • Wavelength: 820 nm
  • Connector: BFOC/2.5 (ST)
• Protection Features:
• Overcurrent and short-circuit protection
• Overvoltage suppression
• Thermal shutdown
• Operating Temperature:
  • Board: –10°C to +55°C
  • Optical module: –25°C to +70°C
• Storage Temperature:
  • Board: –40°C to +70°C
  • Optical module: –40°C to +85°C
• Humidity: 5% to 95%, non-condensing
• Altitude: Up to 2000 m
• Dimensions: 480 mm × 340 mm × 220 mm
• Weight: 760 g
