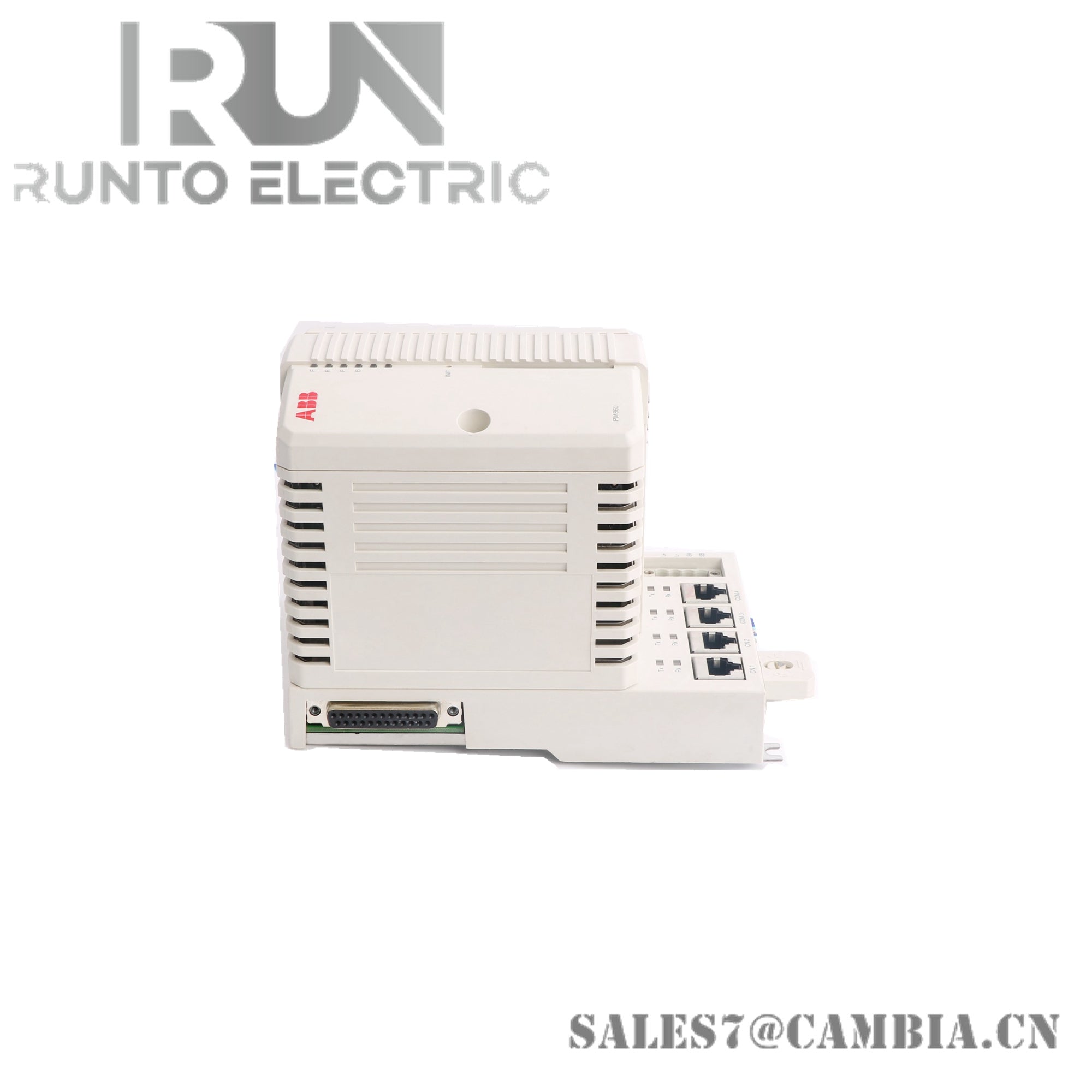

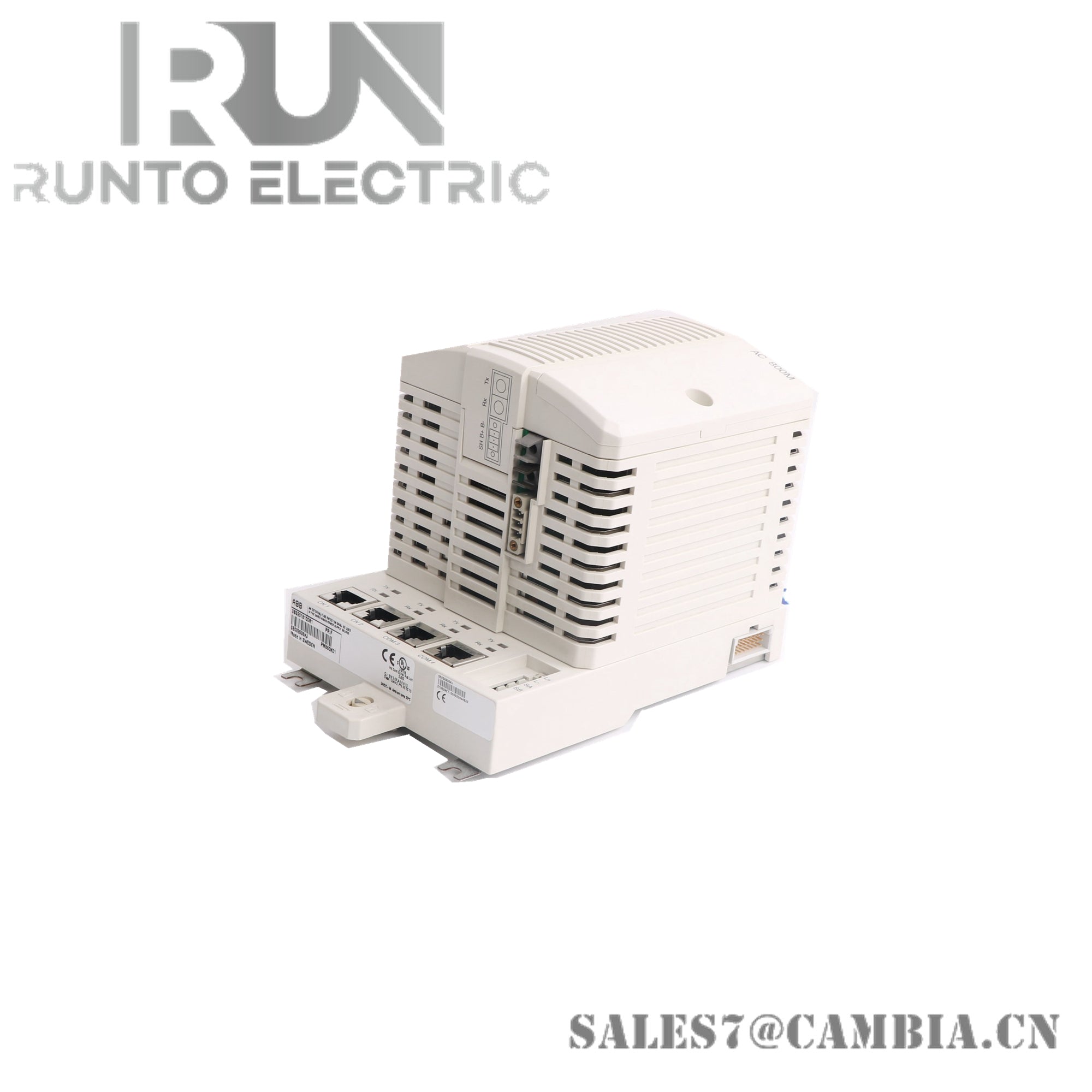

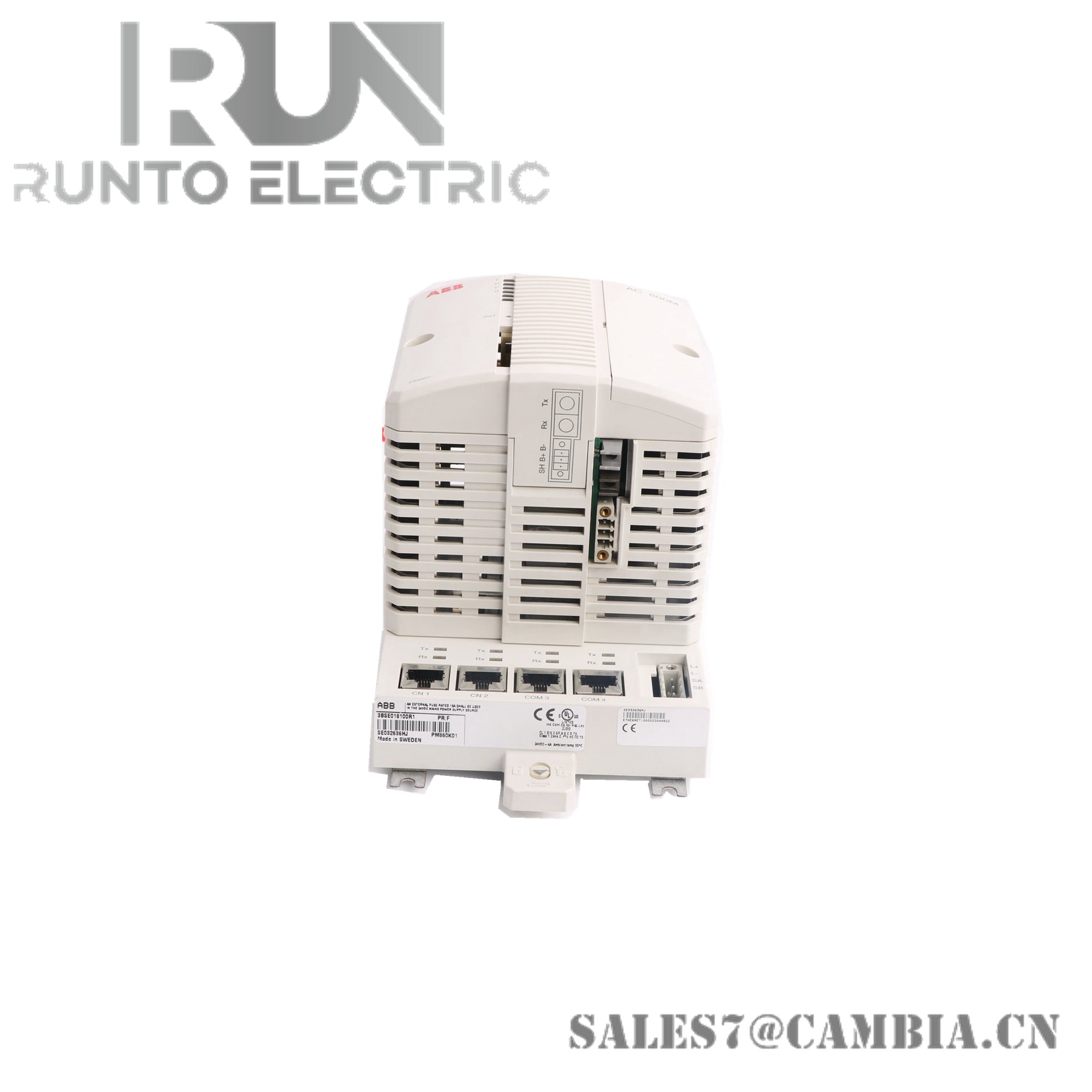

ABB PM861AK01 3BSE018157R1 Processor Unit

General Information

• Product ID: 3BSE018157R1
• ABB Type Designation: PM861AK01
• Catalog Description: PM861AK01 Processor Unit
• Long Description / Medium Description: PM861AK01 Processor Unit

Additional Information

• Product Type: Central_Unit
• Kit Includes:
  • PM861A, CPU
  • TP830, Baseplate (width 115 mm)
  • TB850, CEX-bus terminator
  • TB807, ModuleBus terminator
  • TB852, RCU-Link terminator
  • Battery for memory backup 4943013-6
  • 4-pos Power Plug 3BSC840088R4
• Fuse References: 2 A 3BSC770001R47; 3.15 A 3BSC770001R49

Dimensions & Weight

• Product Net Depth / Length: 135 mm
• Product Net Height: 186 mm
• Product Net Width: 119 mm
• Product Net Weight: 1.2 kg

External Classifications and Standards

• Dangerous Goods UN Classification: Class 9 (Miscellaneous Dangerous Substances and Articles, Including Environmentally Hazardous Substances)
• Dangerous Goods UN Number: UN3091-PI969

Environmental

• RoHS Information: Not RoHS Compliant
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
• Number of Batteries: 1
• Battery Chemical Composition: Lithium
• Battery Type: Portable
• Battery Weight: 9 g
• SCIP Number: 4908a38c-270f-4b45-8a26-a01ebd728773 (Sweden)
