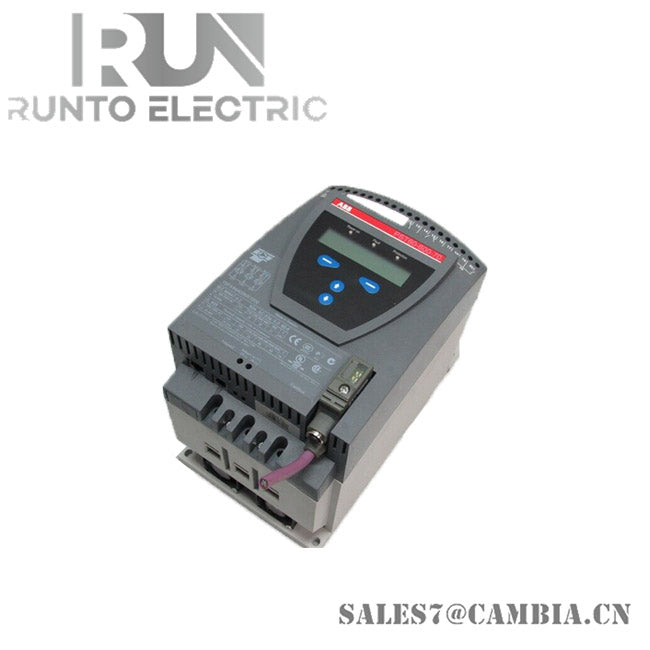

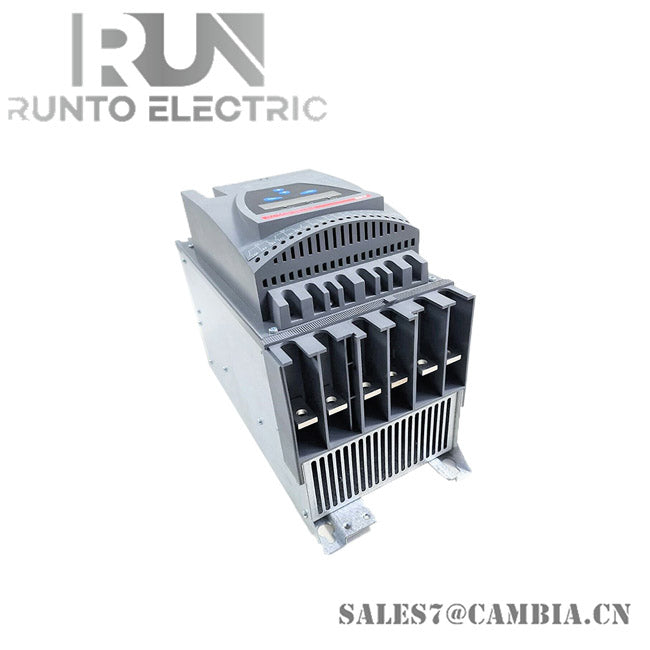

ABB PST85-600-70 Soft Starter

General Information

• Extended Product Type: PST85-600-70
• Product ID: 1SFA894008R7000
• EAN: 7320500255568

Dimensions

• Product Net Width: 186 mm
• Product Net Height: 390 mm
• Product Net Depth / Length: 270 mm
• Product Net Weight: 10 kg

Technical

• Rated Operational Voltage:
  • Main Circuit: 208 ... 600 V AC
  • Rated Control Supply Voltage (Us): 100 ... 250 V AC
  • Rated Control Circuit Voltage (Uc): DC Operation 24 V
• Rated Frequency (f): 50/60 Hz
• Rated Operational Power - In-Line Connection (Pe):
  • (400 V) 45 kW
  • (500 V) 55 kW
• Rated Operational Current - In-Line Connection (Ie): 85 A
• Rated Operational Power - Inside Delta Connection:
  • at 400 V: 75 kW
  • at 500 V: 90 kW
• Rated Operational Current - Inside Delta Connection: 147 A
• Service Factor Percentage: 115%
• Overload Protection: Built-in electronic overload protection
• Integrated Electronic Overload: Yes
• Adjustable Rated Motor Current Ie: 30 ... 115%
• Starting Capacity at Maximum Rated Current Ie: 3xIe for 15s
• Ramp Time: 0 ... 120 seconds
• Initial Voltage During Start: 30 ... 70%
• Step Down Voltage Special Ramp: 100 ... 30%
• Current Limit Function: 1.5 ... 7xIe
• Switch for Inside Delta Connection: Yes
• Run Signal Relay: Yes
• By-pass Signal Relay: Yes
• Fault Signal Relay: Yes
• Overload Signal Relay: Yes
• Analog Outputs: 0…10 volts, 0…20 mA, 4…20 mA
• Signal Indication Ready to Start/Standby ON (LED): Green
• Signal Indication Protection (LED): Yellow
• Signal Indication Fault (LED): Red
• Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time: 30
• Communication: FieldBusPlug (Standard)
• Degree of Protection: IP00
• Terminal Type:
  • Main Circuit: Bars
  • Connecting Capacity Main Circuit: Hole Diameter 8.5 mm, Width and Thickness 17.5x5 mm
  • Connecting Capacity Control Circuit: Rigid 1 x 2.5 mm², Rigid 2 x 1.5 mm²
  • Connecting Capacity Supply Circuit: Rigid 1 x 2.5 mm²
  • Tightening Torque: Control Circuit 0.5 N·m, Main Circuit 18 N·m, Supply Circuit 0.5 N·m
• Product Main Type: PST85

Environmental

• Ambient Air Temperature:
  • Operation: 0 ... +50 °C
  • Storage: -25 ... +70 °C
• Degree of Protection: IP00
