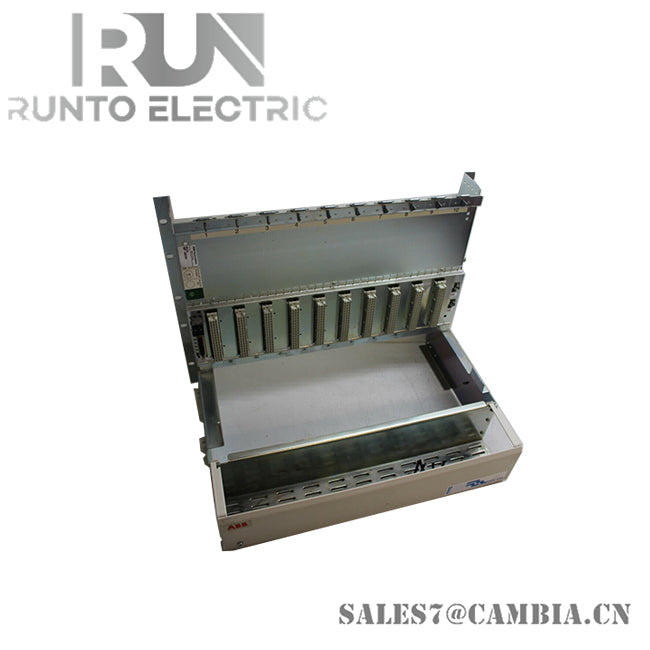

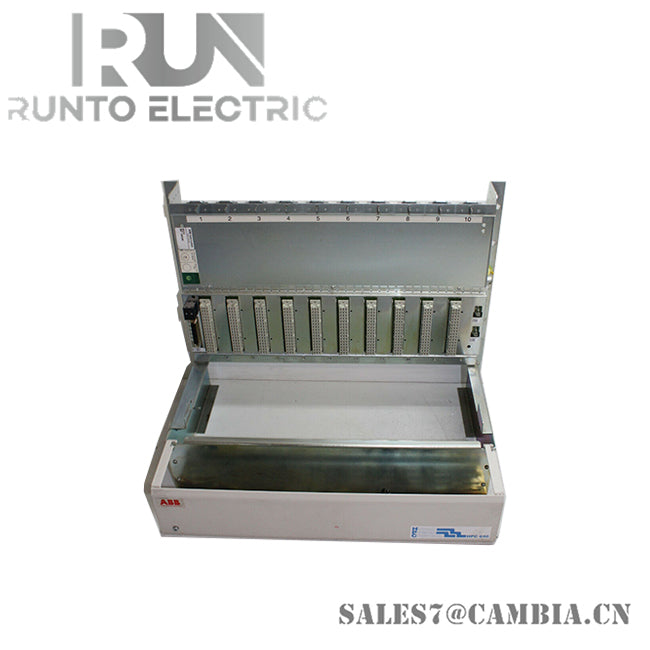

ABB RF615 3BHT100010R1 Base Backplane

Description

The ABB RF615 (Part No. 3BHT100010R1) is a base backplane module designed for ABB’s Advant Controller and AC500 PLC systems. It provides a robust platform for mounting and interconnecting multiple I/O and CPU modules, ensuring stable power distribution and communication across industrial automation setups.

Specifications

• Product Type: Base Backplane
• Model Number: RF615
• Part Number: 3BHT100010R1
• Slot Capacity: 10 slots for I/O and CPU modules
• Compatible Systems: ABB Advant Controller 100/110/160 series, AC500 CPUs
• Operating Voltage: 24 VDC
• Power Consumption: Approx. 30 W
• Dimensions: 470.7 mm × 84.6 mm × 245.7 mm
• Weight: 3 kg
• Mounting Style: 35 mm DIN rail
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Protection Rating: IP30
• Communication Interface: RS-485 (supports Modbus RTU, Profibus-DP)
• Signal Isolation: 8-channel input isolation
• Signal Input Range: 0–10V DC / 4–20mA
• Response Time: <10 ms
• Signal Resolution: 16-bit ADC


Features

• Multi-Protocol Support: Compatible with Modbus RTU, Profibus-DP, and custom protocols
• Scalable Architecture: Supports cascading up to 126 slave devices
• High Reliability: Industrial-grade design with wide temperature tolerance
• Intelligent Diagnostics: Built-in relay outputs for fault detection (power, communication)
• Signal Integrity: Isolated input channels to reduce interference
• Hot-Swappable Modules: Enables module replacement without system shutdown
• Compact Form Factor: Saves panel space and simplifies integration
• Environmental Compliance: CE and RoHS certified
