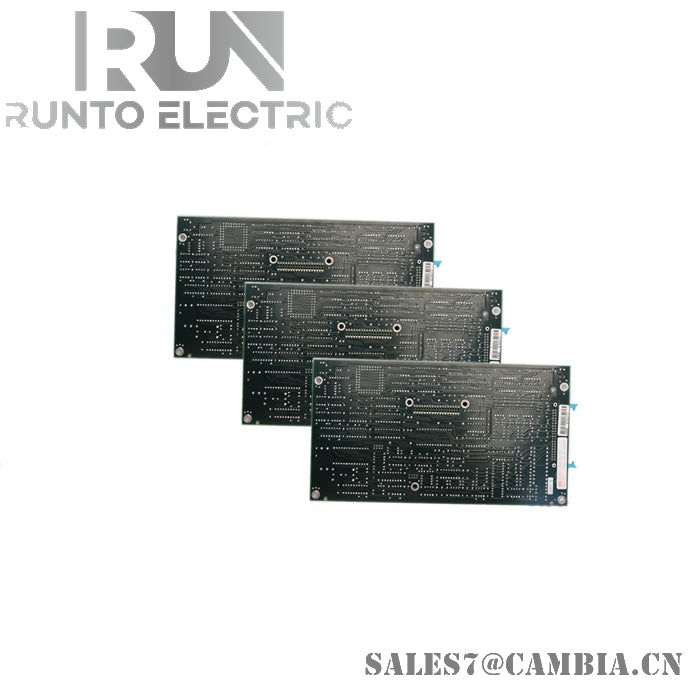

ABB RTU560 560CMG10 1KGT017600R001 PLC Module

Runto Electronic Automation Limited

Product Number

RTU560 560CMG10 1KGT017600R001

ABB RTU560 560CMG10 is a remote terminal unit (RTU) used for real-time monitoring and control of equipment at remote sites. The following is an introduction to its functions, working principles, and technical parameters:

Function:

Real time monitoring: The RTU560 can monitor various parameters of remote sites in real time, such as temperature, pressure, current, etc.

Data acquisition: It can collect data from different sensors and devices and send them to the control center for analysis and processing.

Remote control: The RTU560 has a remote control function, which can control devices on remote sites, such as switches, valves, etc. through a network or communication link.

Alarm management: It can detect abnormal situations and generate alarms, enabling operators to take timely measures.

Working principle:

The RTU560 collects data from on-site devices and transmits it to the control center by connecting with sensors and actuators. It uses communication protocols to communicate with the control center and executes received instructions to control devices on remote sites. At the same time, it can also transmit real-time data and alarm information back to the control center for monitoring and analysis by operators.

Technical parameters:

Model: ABB RTU560 560CMG10

Communication interface: Supports multiple communication interfaces, such as serial port, Ethernet, etc.

Input/Output: It has multiple digital input and output channels for connecting sensors and actuators.

Working temperature range: usually between -40 ° C and+70 ° C.

Power requirements: Usually DC power supply, the working voltage range depends on the specific model.

Protection level: usually IP20 or higher to protect equipment from dust and moisture.
