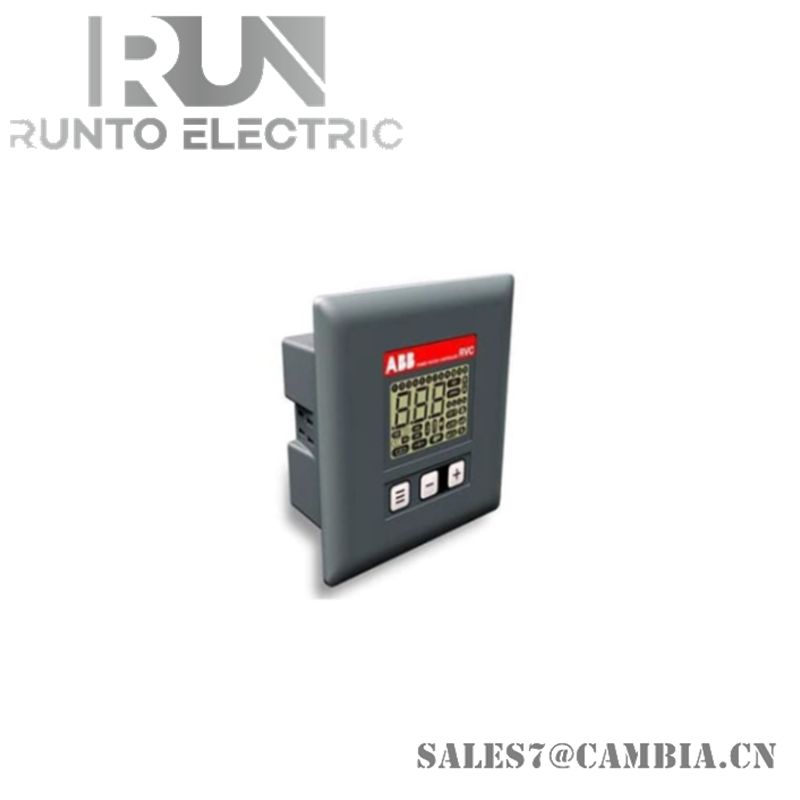

ABB RVC-12-5A Power Factor Controller

Description: The RVC-12-5A is a smart power factor controller that is easy to install and use. It is suitable for power factor control in industrial and commercial settings. Typical applications include buildings, mining, chemical industry, paper and pulp, cement, plastics, printing, and the food industry.

Features:

• Directly connects to a 100 - 400 V power grid; higher voltage power grids can be connected through transformers.
• Measures and displays key parameters such as voltage, current, and harmonics.
• Fully programmable switching sequence with efficient switching strategies and various switching modes, extending the life of capacitors and switching elements.
• User-friendly interface, easy to debug, and simple to use.
• Not affected by harmonic interference and includes various protection and alarm features.

Specifications:

• Operating Voltage: 100 - 240 V AC
• Frequency Range: 50 or 60 Hz
• Current Input: 1A or 5A (RMS)
• Current Input Impedance: <0.1 Ohm
• Power Consumption: Maximum 8 VA
