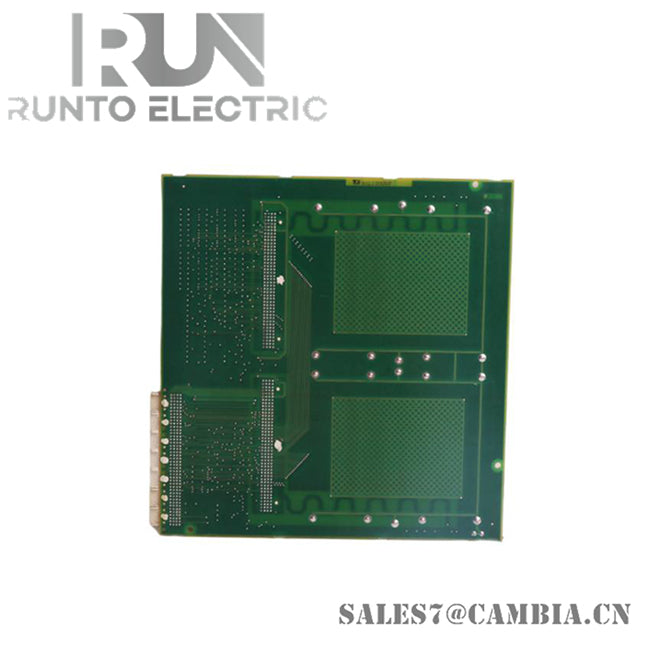

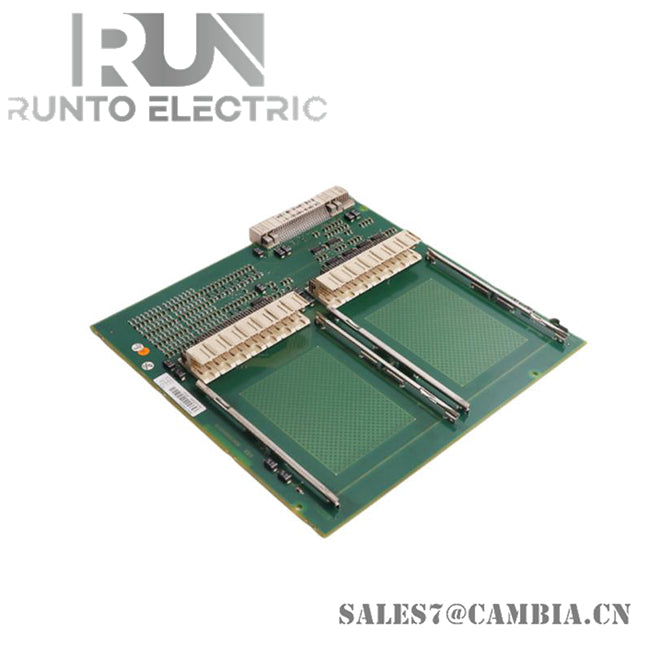

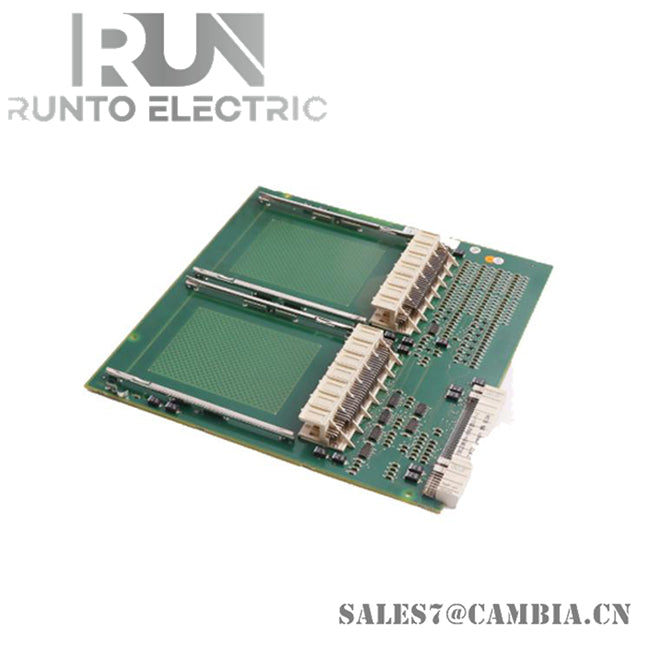

ABB SC520M 3BSE016237R1 Submodule Carrier

Description

ABB SC520M (3BSE016237R1) is a rugged submodule carrier designed for marine and offshore automation systems. It integrates a local CPU and supports modular expansion with MB300 and MB300E modules, making it ideal for Advant Master DCS applications.

Specifications

• Model Number: SC520M
• Part Number: 3BSE016237R1
• Power Supply: 220V AC (±15%) / 24V DC (±20%)
• CPU: Embedded 32-bit processor, 500 MHz
• Dimensions: 30 mm × 300 mm × 291 mm
• Weight: Approx. 0.78 kg
• Protection Rating: IP66 (front), IP20 (rear)
• Operating Temperature: –25°C to +70°C

Features

• Marine-Grade Durability: Aluminum alloy housing with conformal coating resists corrosion and vibration
• Modular Flexibility: Supports up to 12 MB series modules for scalable control Redundant Power Support: Dual 24V DC inputs for high availability
• Remote Diagnostics: Ethernet interface enables shore-based monitoring via ABB’s support portal
• Extended Temperature Range: Designed for harsh maritime environments
• Seamless Integration: Compatible with ABB Advant Master and third-party systems
